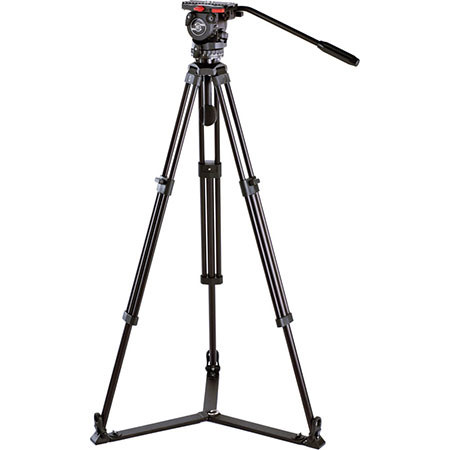

Used Sachtler DA 75 L Tripod with FSB 8 Fluid Head, Includes Spreader & DV 75 L Bag, 62.2" Max. Height, 33lbs Tripod/2.2-22lbs Head Payload

SKU: US1951751 MFR: 0770
Earn VIP Reward Points

What`s in the box:

  • Sachtler DA 75 L Tripod
  • FSB 8 Fluid Head
  • Mid-Level Spreader
  • Bag (DV 75 L)

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Free Shipping

See Options

Protect your gear with Adorama Protect.* Learn more

2 Year

$106.99

3 Year

$166.99

4 Year

$227.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Sachtler DA 75 L FSB 8 Specifications

  • FSB 8 Fluid Head: Payload

    1-10kg / 2.2-22lbs

  • FSB 8 Fluid Head: Sliding range-plate

    120mm / 4.72"

  • FSB 8 Fluid Head: Counterbalance

    In 10 Steps

  • FSB 8 Fluid Head: Grades of drag

    5 each horizontal and vertical + 0

  • FSB 8 Fluid Head: Tilt range

    +90/-75deg.

  • FSB 8 Fluid Head: Temperature range

    -40deg. to +60deg. C / -40 to +140deg. F

  • FSB 8 Fluid Head: Camera fitting

    Sideload plate S

  • FSB 4 Fluid Head:Tripod/Pedestal fitting

    75mm (2.95") Bowl, integrated flat base fitting

  • FSB 8 Fluid Head: Pan bar(s)

    1, Type DV 75

  • FSB 8 Fluid Head: Level

    Self-illuminating Touch Bubble

  • FSB 8 Fluid Head: Batteries Level

    1x CR2032

  • DA 75 L Tripod: Payload

    15kg / 33lbs

  • DA 75 L Tripod: Height

    With Floor Spreader: 61-141cm / 24.02-55.51"
    With Mid-level Spreader: 78-142cm / 30.7-55.9"

  • DA 75 L Tripod: Head fitting

    75mm (2.95")

  • DA 75 L Tripod: Transport length

    82cm / 32.28"

  • DA 75 L Tripod: Extension

    Single

  • Minimum Height

    78cm / 30.7"

  • Maximum Height

    158cm / 62.2"

  • Transport length

    101cm / 39.76"

  • Weight

    FSB 8 Fluid Head: 2.15kg / 4.73lbs
    DA75L Tripod: 1.9kg / 4.18lbs
    Without Cover/Bag: 5.2kg / 11.46lbs

About Sachtler DA 75 L Tripod with FSB 8 Fluid Head, Includes Spreader & DV 75 L Bag, 62.2" Max. Height, 33lbs Tripod/2.2-22lbs Head Payload

The Sachtler 0770 includes system components FSB 8 fluid head, DA 75 L tripod, SP 75 ground spreader and DV 75 L padded bag. The sturdy and reliable FSB 8 completes Sachtler's FSB-Range of 75mm heads, extending the payload range to 19.8 lbs (9 kg). It is well suited for (H)DV camcorders in industrial, newsgathering and education applications. The FSB 8 provides a 10-stage counterbalance, as well as five steps of drag (plus 0) for both tilt and pan. The fluid head is engineered with Sachtler's well-known technology, including its patented counterbalance switch mechanism, Speedbalance and Sideload technology, which allows quick mounting and unmounting of the camcorder for on-the-go assignments.

With its compact dimensions, the DA 75 L tripod is an indispensable companion. The proven Touch Go system enables fast changeover, so camera operators can go from using the tripod to shooting from the shoulder within a matter of seconds. In combination with fluid heads FSB 2 and FSB 6, this tripod system is ideal for MiniDV camcorders starting from around 1 kg / 2.2 lbs.

Warranty Information

This used item has a FREE 180-day warranty. See details.

What's in the box:

  • Sachtler DA 75 L Tripod
  • FSB 8 Fluid Head
  • Mid-Level Spreader
  • Bag (DV 75 L)
