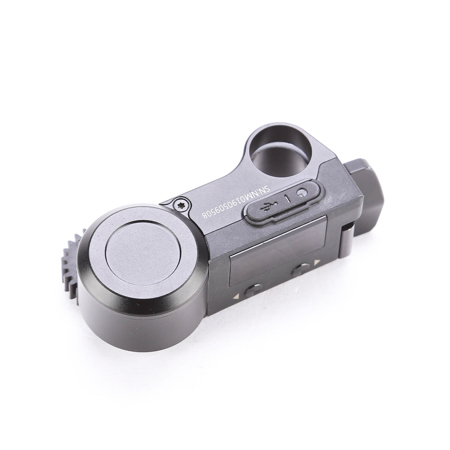

Used Tilta Nucleus-Nano Wireless Follow Focus Motor

SKU: US1951869 MFR: WLC-T04-M
$83.00
Earn VIP Reward Points

What`s in the box:

  • Tilta Nucleus-Nano Wireless Follow Focus Motor
  • 0.8 MOD / 32 Pitch / 26-Tooth Gear

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Free Shipping

See Options

Protect your gear with Adorama Protect.* Learn more

1 Year

$10.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2019-11-14T06:57:17

Rated 5 out of 5

Tilta can make Good items

Worked very nice. But I get it without box. Thanks

Emin M.

2019-07-31T12:36:54

Rated 4 out of 5

bit of a challenge to set up properly.

Takes a bit of adjusting the right location on the gear wrapped around the lens, in order to calibrate the motor for power zoom function on the lens properly, without skipping teeth on gear lens ring, but it works good once set and done properly. Remember to turn off any smart phones or other devices that share the same bluetooth and wifi frequency, otherwise it will interfere with the motor's overall functionality.

John T.

2019-07-02T09:07:10

Rated 5 out of 5

Single Camera Operator Lens Control Now Possible

Purchased the Nucleus M Follow Focus motor to add to my gimbal so that i could focus & control my manual cinema lenses. This this works flawlessly & has made my "one man show" easier to pull off.

Karl R.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Tilta Follow Focus Motor Specifications

  • Materials

    Aluminum-alloy, stainless steel, ABS plastic

  • Power Input

    Micro-USB

  • Voltage

    5 to 18V

  • Torque

    0.65 Nm at 5V
    1 Nm at 14.8V

  • Gear

    0.8 MOD, 32 pitch, 26 teeth

  • Rod Compatibility

    15mm

  • Operating Distance

    300' (91.44m)

  • Dimensions (LxWxD)

    8 x 2.26 x 2.38cm (3.15 x 0.89 x 0.94")

  • Weight

    0.17 lbs (0.08kg)

About Tilta Nucleus-Nano Wireless Follow Focus Motor - SKU#1951869

FEATURED REVIEWS

Tilta can make Good items

By Emin M.

Worked very nice. But I get it without box. Thanks

Single Camera Operator Lens Control Now Possible

By Karl R.

Purchased the Nucleus M Follow Focus motor to add to my gimbal so that i could focus & control my manual cinema lenses. This this works flawlessly & has made my "one man show" easier to pull off.

The Nucleus-Nano is a revolutionary wireless lens control system specifically designed for handheld gimbal systems. It makes it possible for a single operator to control a lens gear while simultaneously operating their gimbal. The Nano system is compatible with all DSLR, mirrorless and modified "cine-style" vintage photo lenses!

The Nucleus-Nano uses a brand new state of the art power-efficient miniature motor. The Nano Motor features low noise and high torque. It can perform super fast focus pulls with silent precision! The built-in 15mm rod adapter allows for flexibility and compatibility with a wide range of camera rigs and professional mounting solutions. The motor has a 5-18V input tolerance for power via a Micro USB port. This allows the motor's power to be drawn from the G2X tilt motor's 5V Micro USB output or via a P-tap to 5V Micro USB cable (sold separately).

The Nano Motor has its own built-in motor drive that communicates directly with the Nano Hand Wheel Controller. This negates the need to mount a separate MDR to your rig, allowing for a more compact camera setup and a quicker setup time. Simply set the Nano Motor and Nano Hand Wheel Controller to the same channel and you will have full control. The wireless range of both the Nano Hand Wheel Controller and Nano Motor is 300 feet!

The motor allows for automatic calibration of the lens as well as a manual calibration if you are using lenses that don't have hard end stops at close focus and infinity via the ability to set A-B limits on the Nano Hand Wheel Controller. Every motor has a 0.8 mod, which is the standard gear size for most cinema lenses. The torque of the Nucleus-Nano Motor at 5.5V is 0.65Nm and at 14.8V is 1Nm.

The Nano Motor is also able to connect to the Nucleus-M's FIZ hand unit and hand grips, allowing for a variety of ways to control the motor as you see fit. Lastly, the Nano system can provide record Run/Stop functionality for numerous camera systems through several different cables we offer for the system.

Warranty Information

This used item has a FREE 180-day warranty. See details.

What's in the box:

  • Tilta Nucleus-Nano Wireless Follow Focus Motor
  • 0.8 MOD / 32 Pitch / 26-Tooth Gear
