Used Adam Audio D3V 3.5" 80W Desktop Monitor, Pair White

SKU: US1952541

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Adam Audio D3V 3.5" 80W Desktop Monitor - Pair, White SKU#1952541 Specifications

Acoustics

Acoustics

Jump to...
  • Frequency Response @ -3 dB

    48-22.6kHz

  • Frequency Response @ -6 dB

    45-23.2kHz

  • Max SPL in full space

    92/96 dB SPL at 1 m with sine bursts (average 100-6kHz) at 3% THD (rms/peak)

  • Crossover Frequency

    4.0kHz

Drivers

Jump to...
  • Passive Radiator Basket Diameter

    2x 3.5"

  • Woofer Cone Material

    Single-piece aluminum

  • Woofer Basket Diameter

    3.5" (88.9mm)

  • Woofer Voice Coil Diameter

    1" (25 mm)

  • Woofer Grille

    Painted steel

  • Tweeter Type

    D-ART

  • Tweeter Velocity Transform Ratio

    4 to 1

Audio Input/Output Connectors

Jump to...
  • Analog connectors

    2 x balanced 1/4" TRS

  • Max. Input Level

    +9 dBu

  • Digital connector

    USB Type C

  • Digital audio signal

    Class-compliant USB 1.1

  • Sample rates supported

    32, 44.1, 48 kHz

  • Bit depth

    24-bit

  • Headphone Output Connector

    3.5 mm TRS mini-jack

  • Headphone Output impedance

    32 Ohms

Signal Processing

Jump to...
  • AD converter

    24-bit

  • Internal sample rate

    48kHz

  • Internal processing bit depth

    28- bit

  • Latency

    4.0ms

  • Protection

    Independent peak and thermo limiters for each driver, and amplifier thermo limiters

Amplification

Jump to...
  • Woofer amplifier: Type

    PWM

  • Woofer amplifier: Peak

    2x 80W (10% THD, limiter deactivated)

  • Woofer amplifier: RMS

    2x 70W (1% THD, limiter deactivated)

  • Tweeter amplifier: Type

    PWM

  • Tweeter amplifier: Peak

    2x 40W (10% THD, limiter deactivated)

  • Tweeter amplifier: RMS

    2x 30W (1% THD, limiter deactivated

Control Options (via backplate)

Jump to...
  • Input sensitivity

    0 dBu = 88 dB SPL at 1 m @ 0 dB level setting

  • Level

    The volume knob controls loudspeaker and headphone outputs over the range - Infinite dB to +6 dB

  • Volume knob press functions

    Mute, standby, input select, channel swap

  • Input selection

    Analogue, USB-C

  • Channel order

    Normal, L/R swapped

  • Backplate Room Adaption

    Position (Bass): 0, -3, -6 dB
    Desk (Low-mid and Mid): 0, -3, -6 dB and 0, -2, -4 dB
    Room Acoustics (Treble): 0, -1.5, -3 dB

Remote Control Options

Jump to...
  • Connector

    USB-C

  • Connection type

    Class-compliant USB 1.1

General

Jump to...
  • Available Colors

    Black, White

  • Display

    Front panel multi-color logo

  • Cabinet design

    Dual passive radiator

  • Cabinet material

    Painted ABS Polycarbonate

  • Mounting options

    Flat on desk or loudspeaker stand, angled 15 degrees upwards on desk using supplied foot, threaded insert (3/8") on the bottom of the cabinet for microphone stand

  • AC input voltage

    100-240V, 50/60 Hz

  • Power rating

    60W max

Physical

Jump to...
  • Dimensions (H x W x D)

    7.88 x 9.5 x 4.5" (20.01 x 24.1 x 11.4cm)

  • Weight

    Left Speaker: 4.06 lbs (1.84kg)
    Right Speaker: 3.81 lbs (0.83kg)

About Adam Audio D3V 3.5" 80W Desktop Monitor - Pair, White SKU#1952541

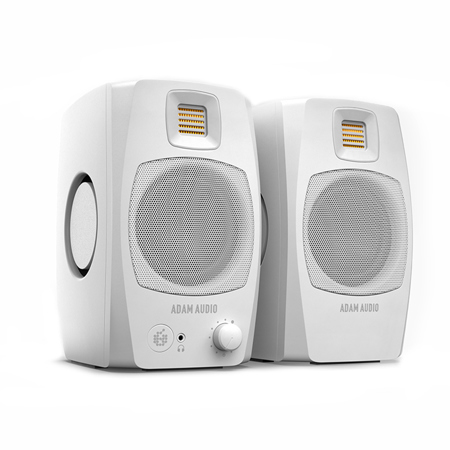

The Adam Audio D3V 3.5" 80W Desktop Monitor is a fully active monitoring system meticulously crafted for songwriters, producers, and audiophiles who seek the renowned ADAM Audio sound quality in a compact and convenient format. Available in sleek white or black finishes, these active monitors embody ADAM Audio's German industrial design heritage, featuring the iconic golden ribbon tweeter. Each pair is equipped with 3.5" aluminum woofers powered by an 80W amplifier and a ferrite magnet system, ensuring powerful and precise sound reproduction. The woofers are complemented by dual-sided 3.5" passive radiators, allowing the D3V to achieve impressive low-frequency extension down to 45 Hz.

ADAM Audio's 25 years of expertise in ribbon tweeter technology culminates in the 1.5" D-ART (Desktop Accelerated Ribbon Tweeter), delivering precise and fatigue-free high-frequency reproduction. The D3V's innovative design includes a USB-C input, transforming the system into a digital output device when connected to computers or mobile devices, eliminating the need for an additional audio interface. This plug-and-play functionality ensures high-quality audio playback without the typical compression or conversion issues.

For traditional analog audio applications, the D3V features balanced 1/2" TRS inputs, accommodating connections to audio interfaces, synthesizers, drum machines, and more. The left speaker's backplate offers user-friendly switches to address common acoustical challenges related to speaker placement, desk size, and room acoustics. The front panel includes a headphone socket and a multifunctional volume knob for audio input selection, muting, and other controls.

The D3V comes with detachable monitor stands angled at 15 degrees for optimal listening, and a standard threaded 3/8" hole for microphone stand mounting. The injection-molded ABS Polycarbonate cabinet is designed with thick walls and ample bracing to minimize vibrations and unwanted resonances, while its rounded shape reduces sound diffraction at high frequencies, maintaining ADAM Audio's commitment to superior design and performance.

Optimized using ADAM Audio's state-of-the-art Klippel measurement system, the D3V's aluminum woofers and ferrite magnet system provide a linear motor for the woofer, minimizing distortions and delivering uncolored sound even at high output levels. The D-ART tweeter, with its hand-folded diaphragm and 40W amplifier, incorporates DSP-managed crossover fine-tuning for exceptional audio clarity. The dual-sided passive radiators, featuring a stainless-steel plate and long-stroke rubber surround, enhance the system's low-frequency response and overall sound pressure level.

In summary, the Adam Audio D3V 3.5" 80W Desktop Monitor offers a sophisticated and versatile solution for high-quality audio monitoring, combining advanced technology, elegant design, and user-friendly features to meet the demands of modern audio professionals and enthusiasts.

What's in the box:

  • D3V Right Monitor
  • D3V Left Monitor
  • 2x Angled Stands
  • 6x Desktop Pads
  • Loudspeaker Link Cable
  • PSU and Mains Power Cable
  • USB-C to USB-C Cable (1m)
  • USB-C to USB-A Adapter
  • User Manual -
