Used Blackmagic Design 2110 IP 8x12G SFP Converter

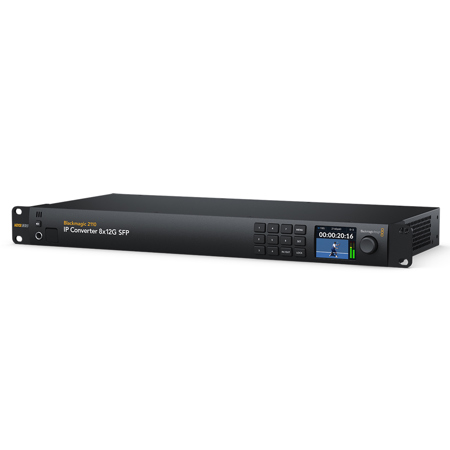

Overhaul your broadcast equipment with the Blackmagic 2110 IP Converter 8x12G SFP, a state-of-the-art device designed to integrate SMPTE-2110 IP video into your 12G-SDI broadcast equipment. This converter boasts a sleek 1RU design and houses eight independent bidirectional 12G-SDI to SMPTE-2110 IP video converters, utilizing SFP modules. This allows for the use of optical fiber Ethernet modules for long-distance transmissions.

Each channel of this converter is equipped with a 12G-SDI input, along with a 12G-SDI program return input that broadcasts to all channels. This feature allows you to distribute a single 12G-SDI input to all connected devices from a single connection, enhancing efficiency and reducing clutter.

The Blackmagic 2110 IP Converter is part of Blackmagic Design's extensive range of SMPTE-2110 IP video products, which includes converters, video monitors, audio monitors, and cameras. These products support Ultra HD using cost-effective 10G Ethernet. The bidirectional nature of most converter models makes them ideal for use on cameras when an extra program return is needed.

The rack mount models of this converter are elegantly designed with a color LCD for easy monitoring, menu navigation, and diagnostics. All models adhere to the SMPTE ST-2110 standard for IP video, including PTP clocks and NMOS support, allowing for connections using a video router panel.

The Blackmagic 2110 IP Converter is designed to seamlessly integrate SDI equipment into 2110 IP broadcast systems. With the addition of Blackmagic Studio Cameras, Blackmagic Audio Monitor 12G G3, and the SmartView 4K G3, you can build most of your SMPTE-2110 system without the need for additional converters.

This converter conforms to the SMPTE ST-2110 standard for IP video, which outlines the transport, synchronization, and description of 10-bit video, audio, and ancillary data over managed IP networks for broadcast. It also supports SMPTE-2110-20 uncompressed video, SMPTE-2110-21 traffic shaping/timing, SMPTE-2110-30 audio, and SMPTE-2110-40 for ancillary data.

The Blackmagic 2110 IP Converter uses simple 10G Ethernet for low cost, and is available in models with RJ-45 connectors for simple Cat6 copper cables or SFP sockets for optical fiber modules and cables. This allows you to build SMPTE-2110 systems at a significantly lower cost.

Installation is incredibly straightforward, with the converter able to connect point to point, eliminating the need for a complex Ethernet switch. This converter supports all SD, HD, and Ultra HD standards up to 2160p60, allowing it to connect your existing SDI broadcast equipment to new IP-based infrastructure.

The Blackmagic 2110 IP Converter supports remote administration for settings and updates, making it easy to diagnose problems, change settings, and upgrade software. It also includes flexible and redundant power options, with most models supporting both AC and PoE+ power connections. This ensures that your converter will continue to function even if the external power cable is unplugged, providing a reliable and redundant power source.
