Used Sony UWP-D27 Dual-Channel Camera-Mount Wireless Omni Lavalier Microphone System, 25UC: 536.1 to 607.8MHz

Item Note: Missing 1x Shoe Mount Adapter for Receiver; 2x XLR to Locking 3.5mm Output Cables

SKU: US1953470 MFR: UWPD27/25
Earn VIP Reward Points

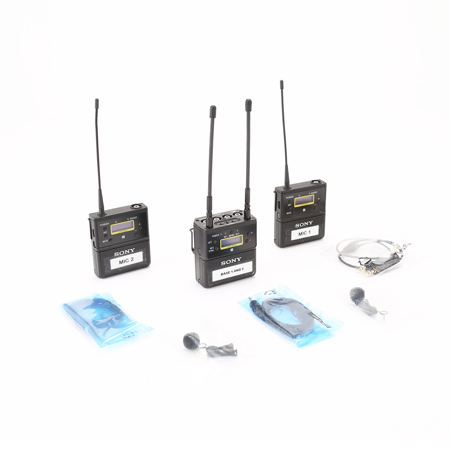

What`s in the box:

  • 2x UTX-B40 Wireless Bodypack Transmitter with Omni Lavalier Microphone
  • 1x URX-P41D Dual-Channel Camera-Mount Wireless Receiver
  • 2x Mic Clips
  • 2x Windscreens
  • 3x Belt Clips
  • 3.5mm to Locking 3.5mm Cable
  • 2 x Sony ECM-V1BMP Omnidirectional Lavalier Microphone with Locking Sony 3.5mm Connector (Black) ** Item Note: Missing 1x Shoe Mount Adapter for Receiver; 2x XLR to Locking 3.5mm Output Cables **

INCLUDES FREE WARRANTY

  • This used item comes with a free 90-day warranty. ?
Free Shipping

See Options

Protect your gear with Adorama Protect.* Learn more

1 Year

$42.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2022-10-13T09:54:51

Rated 5 out of 5

Great upgrade.. Definitely worth the investment.

I wanted to upgrade from the Rode Wireless System. I decided on the Sonys because of range and latency. The sound right out of the system is really good. The battery life in the Transmitter lasted right around 4 1/2 hours continuous use. The receivers around 80% or more life still.

Tim B.

2022-07-21T13:46:47

Rated 5 out of 5

Real professional quality comes at a price. That price is totally worth it.

Now I get why the professionals use this. Clear difference between this and my Rode Wireless GO II. The Rode has some advantages like it's minuscule size but the Sony is just leaps and bounds more professional feeling and the audio quality is top notch with no interference what so ever.

LANCE R.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Sony Wireless Audio Sys Specifications

UTX-B40 Transmitter

UTX-B40 Transmitter

Jump to...
  • Oscillator Type

    Crystal-controlled PLL synthesizer

  • Antenna Type

    1/4 Lambda wave length wire antenna

  • Carrier Frequencies

    25UC: 536.125 MHz to 607.875 MHz (UHF-TV channels 25-36)

  • RF Output Power

    30 mW/5 mW selectable (UC, U, CE, LA, CN models)
    10 mW/2 mW selectable (J, E, KR models)

  • Capsule Type

    Elect retcondenser

  • Directivity

    Omni-directional

  • Input Connector

    3.5 mm diameter 3-pole locking mini jack

  • Reference Audio Input Level

    -60 dBV (MIC input, GAIN MODE set to NORMAL, 0 dB attenuation)
    +4 dBu (LINE input)

  • Audio Attenuator Adjustment Range

    0 dB to 27 dB (3 dB steps)

  • Frequency Response

    23 Hz to 18 kHz (Typical) (UC, U, CE, LA, CN, E, KR models)
    40 Hz to 15 kHz (Typical) (J model)

  • Signal-to-Noise Ratio

    60 dB (-60 dBV, 1 kHz input)
    102 dB (GAIN MODE set to AUTO GAIN, max.)
    96 dB (GAIN MODE set to NORMAL, max.)

  • Distortion

    0.9% or less (-60 dBV, 1 kHz input)

  • Audio Delay

    Approx. 0.35 ms

  • Tone Signal Frequency

    In UWP-D commander mode: 32.382 kHz
    In UWP commander mode: 32 kHz
    In WL800 commander mode: 32.768 kHz

  • Display

    OLED

  • Power Requirements

    DC 3.0 V (two LR6/AA size alkaline batteries)
    DC 5.0 V (supplied from USB Type-C connector)

  • Battery life

    Approx. 8 hours with output power of 30 mW (UC, U, CE, LA, CN models)
    Battery life has been measured with two Sony LR6/AA size alkaline batteries at 77 Degree F (25 Degree C).

  • Operating Temperature

    32 Degree F to 122 Degree F (0 Degree C to 50 Degree C)

  • Storage/Transport Temperature

    -4 Degree F to +131 Degree F (-20 Degree C to +55 Degree C)

  • Dimensions (W x H x D)

    Excluding Antenna: 2.5 x 2.87 x 0.75" (63 x 73 x 19mm)

  • Mass

    Excluding Batteries: Approx. 2.9 oz (83g)

URX-P41D Receiver

Jump to...
  • Oscillator Type

    Crystal-controlled PLL Synthesizer

  • Reception Type

    Space diversity

  • Antenna Type

    1/4 Lambda wavelength wire antenna (angle-adjustable)

  • Carrier Frequencies

    25UC: 536.125 MHz to 607.875 MHz (UHF-TV channels 25-36)

  • Frequency Response

    23 Hz to 18 kHz (typical) (UC, U, LA, CN, CE7, KR, E models)
    40 Hz to 15 kHz (typical) (J model)

  • Distortion (T.H.D)

    0.9% or less (1 kHz sine wave, 5kHz modulation)

  • Signal-to-Noise Ratio

    60 dB (1 kHz sine wave, 5 kHz modulation)
    96 dB (max deviation, A-weighted)

  • Audio Delay

    Approx. 0.35 ms (analog output)
    Approx. 0.24 ms (digital output)

  • Analog Input

    3.5-mm diameter 3-pole locking mini jack (unbalanced)

  • Analog Input Level

    -50dBV ( +/-12dB Adjustable, 3-dB step)

  • Audio Output level

    -60 dBV (3.5-mm diameter 3-pole locking mini jack, analog output)
    -20 dBFS (external connection, digital output)
    -50 dBV (external connection, analog output)

  • Audio Output Adjust Range

    -12dB to +12dB (3dB step)

  • Audio Output connector

    3.5mm diameter 3-pole locking mini jack (balanced), External connection

  • Headphone Output Connector

    3.5mm diameter mini jack

  • Headphone Output Level

    Max. 10 mW (16-ohm)

  • Tone signal frequency

    In UWP-D commander mode: 32.382 kHz
    In UWP commander mode: 32 kHz
    In WL800 commander mode: 32.768 kHz

  • Display

    OLED

  • Power Requirements

    DC 3.0 V (with two AA-size alkaline (LR6) batteries)
    DC 5.0 V (supplied from USB Type-C connector)

  • Battery Life

    Approx. 4.5 hours with two AA-size alkaline (LR6) batteries at 25 Degree C (77 Degree F), DISPLAY MODE set to AUTO OFF

  • Operating Temperature

    32 Degree F to 122 Degree F (0 Degree C to 50 Degree C)

  • Storage/ Transport Temperature

    -4 Degree F to +131 Degree F (-20 Degree C to +55 Degree C)

  • Dimensions (W x H x D)

    Excluding Antenna: 2.5 x 2.87 x 1.43" (63 x 70 x 35mm)

  • Weight

    Excluding Batteries: Approx. 5.6 oz (159g)

Battery

Jump to...
  • Battery Info

    Optional, not included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    4

About Sony UWP-D27 2-Channel Wireless Omni Lav Microphone System 25UC: 536.1-607.8MHz

FEATURED REVIEWS

Real professional quality comes at a price. That price is totally worth it.

By LANCE R.

Now I get why the professionals use this. Clear difference between this and my Rode Wireless GO II. The Rode has some advantages like it's minuscule size but the Sony is just leaps and bounds more professional feeling and the audio quality is top notch with no interference what so ever.

Great upgrade.. Definitely worth the investment.

By Tim B.

I wanted to upgrade from the Rode Wireless System. I decided on the Sonys because of range and latency. The sound right out of the system is really good. The battery life in the Transmitter lasted right around 4 1/2 hours continuous use. The receivers around 80% or more life still.

It's time to elevate your audio recording experience with the UWP-D27 Dual-Channel Camera-Mount Wireless Omni Lavalier Microphone System. This high-quality, durable, and portable system is designed to seamlessly integrate with Sony cameras, offering a frequency range of 536.1 to 607.8MHz for superior compatibility with various recording devices.

The UWP-D27 package is a comprehensive solution for capturing crystal-clear sound in on-camera interviews, live presentations, and other scenarios where top-notch audio is a must. The package includes a lightweight UTX-B40 bodypack transmitter, an ECM-V1BMP Omni-directional lavalier microphone, and a URX-P41D 2-channel portable receiver. The system's camera-mount design ensures easy and secure attachment to your camera, making it a versatile choice for professional filmmakers and videographers on the move.

Sony's advanced digital audio processing technology guarantees high-quality sound with improved transient response performance. The optional digital audio interface allows for direct digital sound recording with many Sony professional camcorders and Alpha interchangeable lens cameras, bypassing A/D and D/A conversion stages for the best possible sound quality.

The UTX-B40 Wireless Bodypack Transmitter with Omni Lavalier Mic is designed to meet the increasing demand for high-resolution audio in the video production industry. It offers superb sound quality, reliable RF transmission, and true double tuner diversity reception, making it an ideal partner for ENG (electronic news gathering), EFP (electronic field production), documentaries, and weddings.

The URX-P41D Dual-Channel Camera-Mount Wireless Receiver is a 2-channel portable wireless audio receiver that combines digital audio processing for sparkling sound quality with the reliability of analogue FM modulation and true diversity reception. It features automatic pairing with UWP-D Series wireless transmitters, an additional mic input, and a 3-channel mixer, making it a versatile sound acquisition partner for on-camera interviews.

The UWP-D27 Dual-Channel Camera-Mount Wireless Omni Lavalier Microphone System is not just a product; it's a professional tool designed to enhance your audio recording experience. Whether you're a seasoned filmmaker or a budding videographer, this system offers the perfect blend of quality, versatility, and convenience.

Sony UWP-D27 2-Channel Wireless Omni Lav Microphone System 25UC: 536.1-607.8MHz Features

  • UTX-B40 Wireless Bodypack Transmitter with Omni Lavalier Mic Features
  • High quality sound with Sony digital audio processing
  • NFC SYNC function for quick and easy secure channel setting (IR sync capability with URX-P03, URX-P03D, and URX-S03D receivers)
  • Auto gain mode volume control
  • +15 dB gain volume boost mode for off-mic audio
  • Line input
  • Transmitter frequency sent to receiver for matching multiple receivers to one transmitter
  • Variable muting function
  • Compatibility with Sony WL-800/UWP/UWP-D series
  • High visibility OLED display, ideal for indoor/outdoor use
  • USB connector for power supply
  • Includes ECM-V1BMP lavalier microphone
  • URX-P41D Dual-Channel Camera-Mount Wireless Receiver Features
  • Backward compatibility with IR sync
  • Portable receiver with variable output level
  • True diversity for stable audio
  • Fast, fuss-free channel setting
  • High quality sound
  • Integration with Sony cameras
  • Light and compact

Warranty Information

This used item has a FREE 90-day warranty. See details.

What's in the box:

  • 2x UTX-B40 Wireless Bodypack Transmitter with Omni Lavalier Microphone
  • 1x URX-P41D Dual-Channel Camera-Mount Wireless Receiver
  • 2x Mic Clips
  • 2x Windscreens
  • 3x Belt Clips
  • 3.5mm to Locking 3.5mm Cable
  • 2 x Sony ECM-V1BMP Omnidirectional Lavalier Microphone with Locking Sony 3.5mm Connector (Black)
  • Item Note: Missing 1x Shoe Mount Adapter for Receiver; 2x XLR to Locking 3.5mm Output Cables
