TV Logic VFM-058W 5.5" 1080p Full HD Viewfinder Monitor, 1000:1 Contrast Ratio, 450cd/m2 Luminance, HDMI
TV Logic VFM-058W: Picture 1 thumbnail
TV Logic VFM-058W: Picture 2 thumbnail
TV Logic VFM-058W: Picture 3 thumbnail
TV Logic VFM-058W: Picture 4 thumbnail
TV Logic VFM-058W: Picture 5 thumbnail
TV Logic VFM-058W: Picture 6 thumbnail
TV Logic VFM-058W: Picture 7 thumbnail
See all TV Logic items
Used Condition: Well Used

Used TV Logic VFM-058W 5.5" 1080p Full HD Viewfinder Monitor, 1000:1 Contrast Ratio, 450cd/m2 Luminance, HDMI

Item Note: Missing HDMI Lock

SKU: US1953493 MFR: VFM-058W
Be the first to review this item
$497.00
OR
$83/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points
See all Used options (1) from $497

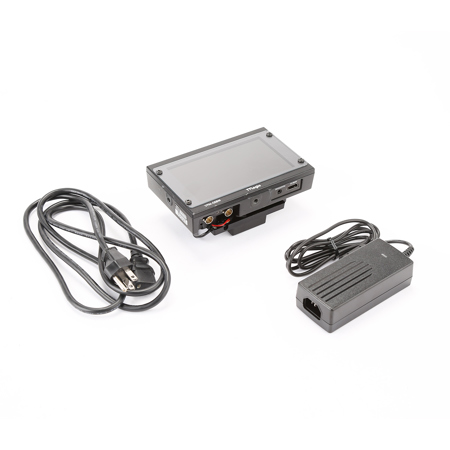

What`s in the box:

  • TVLogic VFM-058W 5.5" 1080p Full HD Viewfinder Monitor
  • External Acrylic Protection Screen
  • Power Adapter
  • Power Cord
  • Battery Attachment Plate ** Item Note: Missing HDMI Lock **

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Free Shipping

See Options

Add to List

Protect your gear with Adorama Protect.* Learn more

1 Year

$44.99

2 Year

$67.99

3 Year

$111.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

TV Logic VFM-058W Specifications

  • Size

    5.5" (13.97cm)

  • Resolution

    1920x1080 (16:9)

  • Pixel Pitch

    0.063mm

  • Color Depth

    16.7M Color (True 8bit)

  • Viewing Angle (Typ.)

    160deg.(H) / 160deg.(V)

  • Luminance (Max.)

    450cd/m2 (Typ.)

  • Contrast Ratio

    1000:1

  • Display Area

    120.96(H) x 68.04(V) mm

  • Input: 1 x BNC

    SDI Input

  • Input: 1 x HDMI

    HDMI(1.2Ver) Input

  • Output: 1 x BNC

    HDMI to SDI conversion output

  • Output: 1 x HDMI

    HDMI Output

  • Input Signal: 3G-SDI

    2.970Gbps

  • Input Signal: HD-SDI

    1.485Gbps

  • Input Signal: SD-SDI

    270Mbps

  • Input Signal: HDMI

    1080p(24/25/30/50/60)/1080i(50/60)/720p(50/60)/480i(60)/480p(60)/576i(50)/576p(50)&VESA/IBM Mode

  • SDI Input Signal Format: SMPTE-425M-A/B

    1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF) / 1080i (60/59.94/50)

  • SDI Input Signal Format: SMPTE-274M

    1080i (60 / 59.94 / 50)
    1080p (30/29.97/25/24/24sF/23.98/23.98sF)

  • SDI Input Signal Format: SMPTE-296M

    720p (60/59.94/50)

  • SDI Input Signal Format: SMPTE-260M

    1035i (60/59.94)

  • SDI Input Signal Format: SMPTE-125M

    480i (59.94)

  • SDI Input Signal Format: ITU-R BT.656

    576i (50)

  • Audio IN

    Embedded Audio / Analog stereo (Phone Jack)

  • Audio OUT

    Analog stereo (Phone Jack) / Internal Speaker (Mono)

  • Power

    DC 6.8 - 12V

  • Power Consumption (Approx.)

    9.6W (Typ.)

  • Operating Temperature

    0deg.C to 45deg.C (32deg.F to 113deg.F )

  • Storage Temperature

    -20deg.C to 60deg.C (-4deg.F to 140deg.F )

  • Dimension

    6.14 x 3.85 x 1.31" / 155.95 x 97.79 x 33.27mm

About TV Logic VFM-058W 5.5" 1080p Full HD Viewfinder Monitor, 1000:1 Contrast Ratio, 450cd/m2 Luminance, HDMI

The TVLogic VFM-058W 5.5" 1080p Full HD Viewfinder Monitor features innovative and ergonomic design that makes you comfortable in the shooting environment and its light solid magnesium case achieves the highest efficiency of ventilation. The VFM-058W supports multi-formats including 3G/HD/SD-SDI and HDMI that offers a wide application range from DSLR cameras to professional camcorders for broadcasting and movie shooting.

TV Logic VFM-058W 5.5" 1080p Full HD Viewfinder Monitor, 1000:1 Contrast Ratio, 450cd/m2 Luminance, HDMI Features

  • Supports TVLogic Color Calibration Utility for proper color alignment
  • Temperature Adaptive Color
  • Various Scan modes
  • Low Power Consumption
  • Time Code Display

Warranty Information

This used item has a FREE 180-day warranty. See details.

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • TVLogic VFM-058W 5.5" 1080p Full HD Viewfinder Monitor
  • External Acrylic Protection Screen
  • Power Adapter
  • Power Cord
  • Battery Attachment Plate
  • Item Note: Missing HDMI Lock
