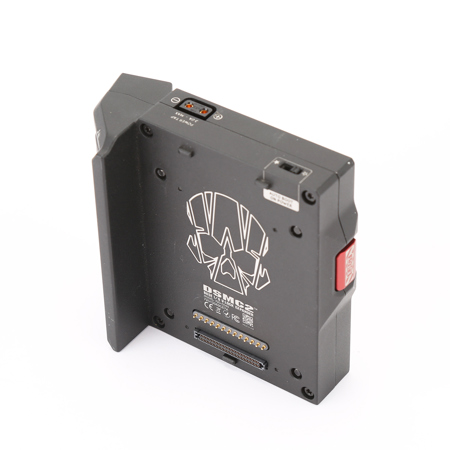

Red Digital Cinema DSMC2 Base Expander

Picture does not represent the actual item

See all Red Digital Cinema items

Used Red Digital Cinema DSMC2 Base Expander

SKU: US1954466

This item is no longer available.

See all Used options (1) from $439
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

RED Digital Cinema DSMC2 Base Expander Specifications

  • Material

    Magnesium

  • BRAIN Mounting

    4x M4 captive mounting screws

  • BRAIN Connections

    Power delivery via DSMC2 Rear pogo connector (13-Pin)
    Communication via DSMC2 Rear I/O connector (4 x40 Pin)

  • Connectors

    DC IN (6-Pin 1B LEMO socket)
    3G-SDI output (75 Ohm BNC), 60 Hz max frame rate
    HDMI 1.2 output (Type A socket), 60 Hz max frame rate
    SYNC (Genlock IN / Timecode IN / Sync IN) (4-Pin 00B LEMO socket)
    CTRL (Tally OUT / RS-232 Rx and Tx) (4-Pin 00B LEMO socket)
    Stereo Analog Microphone input (3.5mm jack)
    Stereo Headphone output (3.5mm jack)

  • Battery Module Connections

    Power delivery via DSMC2 Rear pogo connector (13-Pin)

  • Audio

    24-bit, 48 KHz, uncompressed, unbalanced mic level

  • Operating Temperature

    0 Degree C to 40 Degree C (32 Degree F to 104 Degree F)

  • Storage Temperature

    -20 Degree C to 50 Degree C (-4 Degree F to 122 Degree F)

  • Operating Humidity

    0% to 85%, non-condensing

  • Storage Humidity

    0% to 85%, non-condensing

  • Firmware Requirement

    Compatible with all DSMC2 firmware versions

  • Compatibility

    WEAPON 8K S35
    WEAPON 6K
    EPIC-W
    SCARLET-W
    RAVEN

  • Dimensions (H x W x D)

    4.57 x 4.76 x 1.50" (116 x 121 x 38 mm)

  • Weight

    0.45 lbs (203 g)

About Red Digital Cinema DSMC2 Base Expander

The DSMC2® Base Expander

The DSMC2® Base Expander is an ideal connector module for the general user’s Input/Output (I/O) needs. Manufactured from lightweight and durable magnesium, this low-profile module mounts directly to your DSMC2 BRAIN® and offers interface connections for power (DC IN), HDMI, 3G-SDI (HD-SDI), CTRL and SYNC ports (for Timecode and Genlock), as well as a 3.5mm microphone input and a 3.5mm line-level headphone out.

Base Expander

The DSMC2 Base Expander also offers rear-mounting support for the camera system-compatible battery and power modules, such as the DSMC2 REDVOLT®XL Module.
The low profile DSMC2 Base Expander offers a variety of connectors and is ideal for run-and-gun and independent shooters.

NOTE: Only one (1) expander module can be used at a time.
