Used Sennheiser ew 512P G4 Camera-Mount Wireless Omni Lavalier Microphone System AW+: 470 to 558MHz

Item Note: Missing CA 2 Camera Adapter; Fur Windscreen for MKE 2

SKU: US1954808 MFR: EW 512P G4-AW+
Earn VIP Reward Points

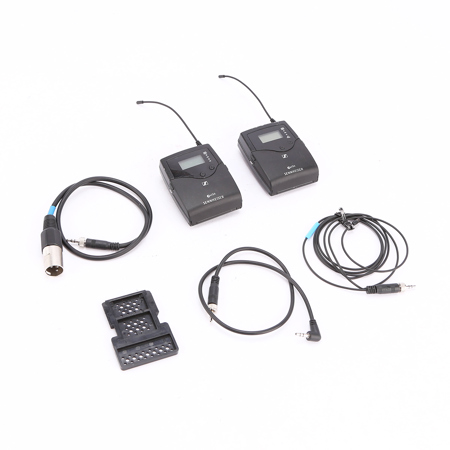

What`s in the box:

  • EK 500 G4 Camera Receiver
  • SK 500 G4 Bodypack Transmitter
  • MKE 2 Lavalier Omnidirectional Microphone
  • CL 1 3.5 mm Jack Cable
  • CL 500 XLR to 3.5 mm Jack Adapter Cable ** Item Note: Missing CA 2 Camera Adapter; Fur Windscreen for MKE 2 **

INCLUDES FREE WARRANTY

  • This used item comes with a free 90-day warranty. ?
Free Shipping

See Options

Protect your gear with Adorama Protect.* Learn more

1 Year

$51.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2021-02-15T17:26:50

Rated 5 out of 5

Great Mic

Great mic easy to set up and use. Package was on time.

MARC R.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Sennheiser ew 512 P G4 Specifications

Receiver: RF Characteristics

Receiver: RF Characteristics

Jump to...
  • Modulation

    Wideband FM

  • Frequency range

    470 - 558 MHz

  • Receiving frequencies

    Max. 2880 receiving frequencies, adjustable in 25 kHz steps
    20 frequency banks, each with up to 32 factory-preset channels, no intermodulation
    6 frequency banks with up to 32 programmable channels

  • Switching bandwidth

    Up to 72 MHz

  • Nominal/peak deviation

    +/-24 kHz / +/-48 kHz

  • Receiver principle

    Adaptive diversity

  • Sensitivity (with HDX, peak deviation)

    < 1.6 microV for 52 dBA

  • Adjacent channel selection

    Typically >= 65 dB

  • Intermodulation attenuation

    Typically >= 65 dB

  • Blocking

    >= 70 dB

  • Squelch

    Low: 5 dBmicro
    Middle: 15 dBmicroV
    High: 25 dBmicroV

  • Pilot tone squelch

    Can be switched off

  • Compander system

    Sennheiser HDX

Receiver: AF Characteristics

Jump to...
  • Signal-to-noise ratio

    Line: >= 110 dBA Phones: approx. 90 dBA (1 mV, peak deviation)

  • Total harmonic distortion (THD)

    <= 0.9 %

  • AF output voltage

    3.5 mm jack socket: +17 dBu (mono, unbalanced) (at peak deviation, 1 kHz AF)

  • Adjustment range of audio output level

    42 dB, adjustable in steps of 6 dB

  • Temperature range

    -10 Degree C to +55 Degree C

  • Power supply

    2 AA batteries, 1.5 V or BA 2015 accupack

Receiver: Overall Device

Jump to...
  • Nominal voltage

    3 V battery / 2.4 V rechargeable battery

  • Current consumption

    At nominal voltage: typ. 140 mA with receiver switched off: <= 25 microA

  • Operating time

    Typically 8 h

  • Dimensions

    Approx. 3.23 x 2.52 x 0.95" (82 x 64 x 24mm)

  • Weight

    Approx. 0.29 lb (130g) (Incl. batteries)

Transmitter: RF Characteristics

Jump to...
  • Modulation

    Wideband FM

  • Frequency range

    470 - 558 MHz

  • Transmission frequencies

    Max. 2880 frequencies, adjustable in 25 kHz steps
    20 frequency banks, each with up to 32 factory-preset channels, no intermodulation
    6 frequency banks with up to 32 programmable channels

  • Switching bandwidth

    Up to 72 MHz

  • Nominal/peak deviation

    +/-24 kHz / +/-48 kHz

  • Frequency stability

    <= +/-15 ppm

  • RF output power at 50 Ohm

    Switchable:
    Low: typ. 10 mW
    Standard: typ. 30 mW
    High: typ. 50 mW

  • Pilot tone squelch

    Can be switched off

Transmitter: AF Characteristics

Jump to...
  • Compander system

    Sennheiser HDX

  • AF frequency response

    Mic: 80 - 18,000 Hz
    Line: 25 - 18,000 Hz

  • Signal-to-noise ratio

    >= 115 dBA (1 mV, peak deviation)

  • Total harmonic distortion (THD)

    <= 0.9 %

  • Max. microphone/line input voltage

    3 Veff

  • Microphone/line input impedance

    40 kOhm, unbalanced / 1 MOhm

  • Input capacitance

    Switchable

  • Setting range for input sensitivity

    60 dB, adjustable in 3 dB steps

Transmitter: Overall device

Jump to...
  • Temperature range

    -10 Degree C to +55 Degree C

  • Power supply

    2 AA batteries, 1.5 V or BA 2015 accupack

  • Nominal voltage

    3 V battery / 2.4 V rechargeable battery

  • Current consumption

    At nominal voltage:
    typ. 180 mA
    with transmitter switched off: <= 25 microA

  • Operating time

    Typically 8 h

  • Dimensions

    Approx. 3.22 x 2.5 x 0.94" (82 x 64 x 24 mm)

  • Weight

    Approx. 0.35 lb (160g) (incl. batteries)

MKE 2 Lavalier

Jump to...
  • Transducer principle

    Pre-polarized condenser microphone

  • Pick-up pattern

    Omni-directional

  • Sensitivity (free field, no load)

    5 mV/Pa, +/- 3 dB (1 kHz)

  • Max. SPL at 1 kHz

    142 dB

  • Frequency response

    20 to 20.000 Hz +/- 3 dB

  • Equivalent noise level A-weighted

    26 dB (DIN IEC 651)

  • Equivalent noise level CCIR-weighted

    39 dB (CCIR 468- 1)

  • Connector

    3.5 mm jack

  • Cable length

    Approx. 1.60 m

1 Accessories for Sennheiser ew 512P G4 Camera-Mount Wireless Omni Lavalier Microphone System AW+: 470 to 558MHz

  • All Accessories (1)
  • Microphones (1)

About Sennheiser ew 512P G4 Wireless Omni Lavalier Microphone System - AW+: 470-558MHz

FEATURED REVIEWS

Great Mic

By MARC R.

Great mic easy to set up and use. Package was on time.

Become a master of high-quality audio capture with the ew 512P G4 Camera-Mount Wireless Omni Lavalier Microphone System AW+: 470 to 558MHz. This innovative, compact, and user-friendly device is the go-to choice for professionals seeking broadcast-quality sound for their video and field recording applications.

Engineered by the renowned brand, Sennheiser, this robust wireless microphone system is designed to deliver superior sound quality with the utmost flexibility. It features the legendary MKE 2 Gold professional clip-on microphone, known for its exceptional speech intelligibility. The system's portable transmitter and receiver are easily mounted, offering up to 8 hours of mobile operation for uninterrupted audio recording.

The ew 512P G4 operates within ten UHF frequency ranges, with a switching bandwidth of up to 72 MHz. Its wide frequency range of 470-558 MHz allows it to be used in diverse applications and environments. The system features 20 fixed frequency banks with up to 32 compatible frequency presets and 6 user banks with up to 32 user programmable frequencies, providing a plethora of options for optimal sound capture.

The receiver and bodypack transmitter are both menu-driven, featuring backlit LCD displays that show the current frequency, frequency bank and channel number, metering of RF level, metering of AF level, lock status, battery status, muting function or line output level, and pilot tone evaluation. An auto-lock feature is included to prevent accidental alteration of settings.

The receiver boasts a 3.5 mm audio output with a maximum output of +17 dBu (mono, unbalanced) and a 3.5 mm phone output. The bodypack transmitter is equipped with a mute switch, which is switchable between "AF on/off", "RF on/ off" and "Disabled" via the user interface.

Both the receiver and transmitter incorporate the Sennheiser HDX compander system and a defeatable pilot tone squelch. The system's audio frequency response ranges from 80 - 18,000 Hz (microphone) or 25 - 18,000 Hz (line), ensuring a broad spectrum of sound capture.

Power is supplied to both the receiver and transmitter by two 1.5V AA size batteries or by one Sennheiser BA 2015 rechargeable accupack. This durable and high-quality audio equipment is designed for those who demand the best in their audio recording endeavors.

Sennheiser ew 512P G4 Wireless Omni Lavalier Microphone System - AW+: 470-558MHz Features

  • Highly versatile solution for professional film sound: Rugged all-in-one wireless system for professional interviews and recording
  • Professional sound and excellent construction quality
  • Easy to use and fast setup time
  • Easy and flexible wireless synchronisation between transmitter and receiver via infrared
  • Up to 88 MHz bandwidth, up to 32 channels
  • Range: up to 100 meters / 330'
  • Increased RF output power (10/30/50 mW)
  • Up to 8 hours of operation time

Warranty Information

This used item has a FREE 90-day warranty. See details.

What's in the box:

  • EK 500 G4 Camera Receiver
  • SK 500 G4 Bodypack Transmitter
  • MKE 2 Lavalier Omnidirectional Microphone
  • CL 1 3.5 mm Jack Cable
  • CL 500 XLR to 3.5 mm Jack Adapter Cable
  • Item Note: Missing CA 2 Camera Adapter; Fur Windscreen for MKE 2
