Used Midas M32R-LIVE Digital Console for Live Performance and Studio Recording, 40 Input Channels, 16 Midas PRO Microphone Preamplifiers and 25 Mix Buses and Live Multitrack Recording

SKU: US1955874 MFR: 000-C7S02-00010
$1,808.00
New: $3,449.00
Used Savings: $1641 (48%)
OR
Earn VIP Reward Points

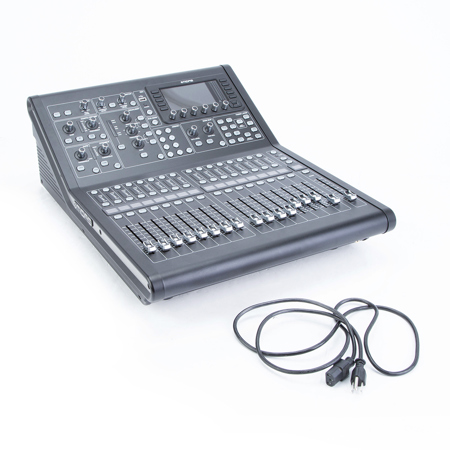

What`s in the box:

  • Midas M32R-LIVE Digital Console
  • Power Cable

INCLUDES FREE WARRANTY

  • This used item comes with a free 90-day warranty. ?
Calculate Shipping

See Options

Protect your gear with Adorama Protect.* Learn more

1 Year

$86.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Midas M32R-LIVE Specifications

Processing

Processing

Jump to...
  • Input Processing Channels

    32 Input Channels, 8 Aux Channels, 8 FX Return Channels

  • Output Processing Channels

    8/16

  • 16 aux buses, 6 matrices, main LRC

    100

  • Internal Effects Engines

    8/16 (True Stereo / Mono)

  • Internal Show Automation

    500/100 (structured Cues / Snippets)

  • Internal Total Recall Scenes

    100 (incl. Preamplifiers and Faders)

  • Signal Processing

    40-Bit Floating Point

  • A/D Conversion (8-channel, 96kHz ready)

    24-Bit, 114 dB Dynamic Range, A-weighted

  • D/A Conversion (stereo, 96 kHz ready)

    24-Bit, 120 dB Dynamic Range, A-weighted

  • I/O Latency (Console Input to Output)

    0.8 ms

  • Network Latency

    1.1 ms

Connectors

Jump to...
  • Midas PRO Series

    16, Microphone Preamplifier (XLR)

  • Talkback Microphone Input (XLR)

    1

  • RCA Inputs / Outputs

    2/2

  • XLR Outputs

    8

  • Monitoring Outputs

    2/2 (XLR / 1/4" TRS Balanced)

  • Aux Inputs/Outputs

    6/6 (1/4" TRS Balanced)

  • Phones Output

    (1/4" TRS) 1 (Stereo)

  • AES50 Ports (Klark Teknik SuperMAC)

    2

  • Expansion Card Interface

    32 Channel Audio Input / Output

  • ULTRANET P-16 Connector

    1 (No Power Supplied)

  • MIDI Inputs / Outputs

    1/1

  • USB Type A (Audio & Data Import/Export)

    1

  • USB Type B, Rear panel

    1 (for remote control)

  • Ethernet, RJ45, rear panel

    1 (for remote control)

Mic Input Characteristics

Jump to...
  • Design

    Midas PRO Series

  • THD+N (0 dB gain, 0 dBu output)

    < 0.01% unweighted

  • THD+N (+40dB gain, 0dBu to +20dBu O/P)

    < 0.03% unweighted

  • Input Impedance (Unbalanced / Balanced)

    10 kOhms / 10 kOhms

  • Non-Clip Maximum Input Level

    +23 dBu

  • Phantom Power (Switchable per Input)

    +48 V

  • Equivalent Input Noise

    -125 dBu 22 Hz-22 kHz, unweighted at +45 dB gain (150 Ohms source)

  • CMRR at Unity Gain (Typical)

    > 70 dB

  • CMRR at 40 dB Gain (Typical)

    > 90 dB

Input/Output Characteristics

Jump to...
  • Frequency Response at 48kHz Sample Rate

    0 dB to -1 dB 20 Hz - 20 kHz

  • Dynamic Range, Analogue In-Analogue Out

    106 dB 22 Hz - 22 kHz, unweighted

  • A/D Dynamic Range

    109 dB 22 Hz - 22 kHz, unweighted, Preamplifier and Converter (Typical)

  • D/A Dynamic Range

    109 dB 22 Hz - 22 kHz, unweighted, Converter and Output (Typical)

  • Crosstalk Rejection at 1 kHz

    100 dB (Adjacent Channels)

  • Output level, XLR Connectors

    +4 dBu / +21 dBu (Nominal / Maximum)

  • Output Impedance, XLR Connectors

    50 Ohms / 50 Ohms (Unbalanced / Balanced)

  • Input impedance, TRS Connectors

    20 kOhms / 40 kOhms (Unbalanced / Balanced)

  • Non-Clip Maximum Input Level

    +21 dBu (TRS Connectors)

  • Output Level, TRS (Nominal / Maximum)

    +4 dBu / +21 dBu

  • Output Impedance, TRS

    50 Ohms / 50 Ohms (Unbalanced / Balanced)

  • Phones Output Impedance

    40Ohms / +21 dBu (Stereo) Maximum output Level

  • Residual Noise Level

    -85 dBu 22 Hz-22 kHz, unweighted (Out 1-16 XLR Connectors, Unity Gain)
    -88 dBu 22 Hz-22 kHz, unweighted (Out 1-16 XLR Connectors, Muted)
    -83 dBu 22 Hz-22 kHz, unweighted (TRS and Monitor out XLR Connectors)

Display

Jump to...
  • Main Screen

    5" TFT LCD, 800 x 480 Resolution, 262k Colors

  • Channel LCD Screen

    128 x 64 LCD with RGB Color Backlight

  • Main Meter

    18 Segment (-45 dB to Clip)

  • Switch-Mode Power Supply

    Auto-Ranging 100-240 VAC (50/60 Hz) +/- 10%

  • Power Consumption

    70W

Physical

Jump to...
  • Operating Temperature Range

    5 to 40 deg. C (41 to 104 deg. F)

  • Dimensions

    18.8 x 24.3 x 8.2" (477.52 x 617.22 x 208.28mm)

  • Weight

    31.5 lbs (14.29kg)

About Midas M32R-LIVE Digital Console for Live Performance & Studio Recording #1955874

The M32R-LIVE Digital Console emerges as a paragon of modern sound engineering, skillfully blending the revered characteristics of classic British console designs with the forefront of digital technology. This rack-mountable digital desktop mixing console is a testament to Adorama's commitment to providing advanced, professional-grade audio solutions for live performance and studio recording.

Crafted with an eye toward the luxury and high-performance car industry, the M32R-LIVE boasts an industry-leading 192 kHz precision, ensuring the highest fidelity in audio processing. Its future-proof floating point audio engine and ultra-low latency design are complemented by top-tier 192 kHz ADC and DAC converters, propelling this mid-format live console into the vanguard of audio innovation.

The M32R-LIVE's ultra-sleek styling is matched by its sophisticated construction, featuring high-quality materials such as carbon fiber for unmatched durability, strength, and a lighter weight than its contemporaries. This console not only captures attention with its appearance but also with its legendary Midas sound quality, a hallmark of excellence that has graced live performances and studio recordings for over four decades.

The M32R-LIVE is built to stand the test of time, with a rock-solid proprietary operating system and an audio engine boasting a mere 0.8 ms latency, delivering state-of-the-art audio performance that will remain cutting-edge for years to come.

Midas's preamplifier design is a masterpiece of sophistication, eliminating imbalances in gain-setting stages and enhancing the common-mode rejection ratio (CMRR) and harmonic distortion to nearly imperceptible levels. The result is a transparent, open, and dynamic sound that, when driven hard, produces a warm and organic sonic character that has been celebrated in countless live recordings.

With over 40 years of experience in the live audio industry, Midas has been at the helm of relentless research and development, backed by a team of 300 world-class engineers. This expertise is the driving force behind the M32R-LIVE, which integrates innovative features such as motorized faders, LCD scribble strips, integrated personal monitor mixing, and true high-speed digital audio networking as standard.

The Klark Teknik DN32-LIVE expansion module further enhances the console's capabilities, offering 32-channel bidirectional audio I/O via USB 2.0 for both live and studio applications. Dual SD/SDHC slots enable independent recording and playback of up to 32 channels of uncompressed WAV files, ensuring seamless sessions and full remote operation through various apps and control surfaces.

The M32R-LIVE is designed to be your "mind-to-sound" interface, providing an intuitive user experience that feels familiar from the start. The Channel Strip centralizes the most crucial processing parameters, optimized with illuminated rotary encoders and switches for precise control over preamp settings, frequency shelving, dynamics, EQ, bus sends, and panning.

Equipped with a 5" day-viewable color TFT display, the M32R-LIVE offers high-contrast, outdoor-visible feedback on adjustments, surrounded by high-precision encoders for immediate access to effects, metering, routing, and more.

The Sends on Fader feature brings the convenience of digital mixing to your auxiliary and output bus mixes, allowing for the creation of powerful sub-mixes without impacting the front-of-house mix. The M32R-LIVE remembers your fader settings, providing instant recall for swift adjustments.

Finally, strategically placed View buttons across the console offer immediate access to detailed information for various functions, enabling direct visual fine-tuning that was once only available on far more expensive consoles.

In summary, the M32R-LIVE Digital Console is a sophisticated, high-quality, and innovative solution for audio professionals seeking unparalleled sound and flexibility in both live and studio environments.

Midas M32R-LIVE Digital Console for Live Performance & Studio Recording #1955874 Features

  • Live performance and studio recording digital console with up to 40 simultaneous input channels
  • 16 award-winning Midas PRO microphone preamplifiers
  • 25 time-aligned and phase-coherent mix buses
  • AES50 networking allows up to 96 inputs and 96 outputs
  • 32 bi-directional channels of live recording/playback on dual SD/SDHC (cards not included)
  • Up to 3 hours of 32 channel PCM recording in one session - stored as uncompressed WAV files
  • High-performance aluminum and high-impact steel structure
  • Rack mount brackets included for ultimate flexibility
  • 40 bit floating point digital signal processing
  • 8 DCA and 6 mute groups
  • 8 digital signal processing effects engines
  • 17 Midas PRO motor faders
  • Daylight viewable 5" full color TFT display screen
  • 32 x 32 channel USB 2.0 audio interface
  • DAW remote control emulations of Mackie Control and HUI protocols
  • Auto-ranging universal switch-mode power supply
  • 10-Year Warranty Program
  • Designed and engineered in the U.K.

Warranty Information

This used item has a FREE 90-day warranty. See details.

What's in the box:

  • Midas M32R-LIVE Digital Console
  • Power Cable
