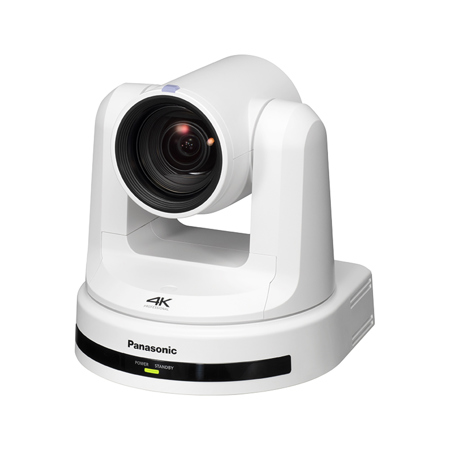

Used Panasonic AW-UE20 4K/30P 3G-SDI/HDMI/IP/USB 12x PTZ Camera, White

SKU: US1957186 MFR: AW-UE20WP
$1,098.00
New: $1,599.95
Used Savings: $501.95 (31%)
OR
Earn VIP Reward Points

What`s in the box:

  • Panasonic AW-UE20 4K/30P 3G-SDI/HDMI/IP/USB 12x PTZ Camera (White)
  • AC Adaptor
  • Power Cable
  • Drop-Prevention Wire
  • Mount Bracket
  • 2x Cable Ties
  • Cable Fixing Bracket
  • Lens Cap
  • 4x M4x10mm Screws
  • 2x M4x6mm Screws
  • M2.6x5mm Screw

INCLUDES FREE WARRANTY

  • This used item comes with a free 1-year warranty. ?
Calculate Shipping

See Options

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

4 Year

$139.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Panasonic AW-UE20 Specifications

Imaging

Imaging

Jump to...
  • Image Sensor

    1/2.8"-Type MOS

  • Horizontal Resolution (TV Lines)

    1400 TV Lines

  • Sensor Resolution

    Effective: 8.46 Megapixel

  • Built-In ND Filter

    None

  • Focus Control

    Autofocus
    Manual Focus

Exposure Control

Jump to...
  • Shutter Type

    Electronic Rolling Shutter

  • Shutter Speed

    1/16000 to 1 Second

  • Gain

    0 to 42 dB

  • Minimum Illumination

    0.4 Lux at 1/30 Shutter Speed

  • White Balance

    Presets: ATW, Auto

  • Focal Length

    3.9 to 46.8mm

  • Optical Zoom Ratio

    12x

  • Max Digital Zoom

    4x

  • Field of View

    Horizontal: 71 to 6 Degree
    Vertical: 43 to 3 Degree
    Diagonal: 79 to 7 Degree

  • Maximum Aperture

    f/1.6 to 2.8

Video Capture

Jump to...
  • External Recording Modes

    4:4:4 8-Bit via HDMI:
    3840 x 2160 at 25/29.97 fps
    1920 x 1080p at 25/29.97/50/59.94 fps
    1920 x 1080i at 50/59.94 fps
    1280 x 720 at 50/59.94 fps

    SDI/BNC / USB:
    1920 x 1080p at 25/29.97/50/59.94 fps
    1920 x 1080i at 50/59.94 fps
    1280 x 720 at 50/59.94 fps

  • Audio Recording

    2-Channel 16-Bit 48 kHz AAC LC Audio

  • Broadcast Output

    NTSC/PAL

  • IP Streaming

    H.264, H.265, MJPEG, RTMP, RTMPS, RTP, RTSP, TCP, UDP
    3840 x 2160 at 5.00p, 10p, 14.99p, 25p, 29.97p
    1920 x 1080 at 5.00p, 10p, 14.99p, 25p, 29.97p, 50p, 59.94p
    1280 x 720
    640 x 360

Control

Jump to...
  • Move Speed

    Pan: 0.1 to 100 Degree /sec
    Tilt: 0.1 to 100 Degree /sec

  • Movement Range

    Pan: 340 Degree (-170 to 170 Degree )
    Tilt: 120 Degree (-30 to 90 Degree )

  • Supported Control Protocols

    IP
    RS-232
    RS-422

Interface

Jump to...
  • Video I/O

    1x BNC (3G-SDI) Output
    1x HDMI Output
    1x USB-B 2.0 Output
    1x RJ45 (NDI) Output

  • Audio I/O

    1x 1/8" (3.5mm) TRS Stereo Mic/Line Input

  • Other I/O

    1x RJ45 (LAN) Input
    1x Mini-DIN 8-Pin (RS-232) Input
    1x Mini-DIN 8-Pin (RS-232) Output
    1x RJ45 (RS-422) Output

  • PoE Support

    PoE+ 802.3at

  • Power I/O

    1x Barrel (10.8 to 13.2VDC) Input

  • Power Consumption

    Device: 1.3 A
    PoE: 0.4 A

Environmental

Jump to...
  • Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

  • Storage Temperature

    -4 to 122 Degree F (-20 to 50 Degree C)

  • Operating Humidity

    20 to 90%

General

Jump to...
  • Color

    White

  • OS Compatibility

    Windows 10 to 11 (32/64-Bit)
    macOS 10.11 to 10.15

  • Certifications

    FCC Part 15 Class A

  • Sound Level

    NC55 (at Full Speed)

  • Dimensions (W x H x D)

    6.5 x 6.9 x 6.9" (165.1 x 176.2 x 176.1mm)

  • Weight

    4.2 lbs (1.9kg)

About Panasonic AW-UE20 4K/30P 3G-SDI/HDMI/IP/USB 12x PTZ Camera - White SKU#1957186

From video conferencing to surveillance, the advanced AW-UE20 4K/30P 3G-SDI/HDMI/IP/USB 12x PTZ Camera in white is a sophisticated solution for high-quality video communication. As teleworking and online learning become more prevalent, PTZ cameras like the AW-UE20 are becoming increasingly crucial. This state-of-the-art camera delivers superior image quality with its high resolution of 4K UHD (3840x2160), ensuring clear, detailed video images for more effective communication.

The AW-UE20 is equipped with a wide shooting angle and a high-magnification 12x optical zoom, offering greater flexibility in framing shots and capturing images from a distance. This high-tech camera is compatible with a broad range of systems, including SDI, HDMI, USB, and IP, providing versatile camera setup and operation options.

Despite its compact size, the AW-UE20 is a powerhouse of innovation. It can be conveniently installed in small spaces without obstructing the area. As a Zoom Certified USB Camera, the AW-UE20 supports UVC, making it compatible with existing USB-based systems.

The AW-UE20 also allows for a wire-saving installation, as multiple camera units can be connected to a PC using a single LAN cable. This setup creates a simple, compact system that's easy to configure. With the free PTZ Virtual USB Driver software, the AW-UE20 can function as a web camera linkable to an online conference service via LAN cable, even in locations where a USB cable cannot reach.

With its Zoom certification and dedicated mode (USB: Video Conference), the AW-UE20 is an ideal choice for web conferencing, providing a seamless, high-quality video experience.

Panasonic AW-UE20 4K/30P 3G-SDI/HDMI/IP/USB 12x PTZ Camera - White SKU#1957186 Features

  • 4K PTZ Camera
  • Compact size & wide angle
  • Simultaneous 3G-SDI, HDMI & USB output
  • High-Quality Video Streaming for More Comfortable Online Communication
  • Excellent system flexibility to achieve smart wiring and smooth operation

Warranty Information

This used item has a FREE 1-year warranty. See details.

What's in the box:

  • Panasonic AW-UE20 4K/30P 3G-SDI/HDMI/IP/USB 12x PTZ Camera (White)
  • AC Adaptor
  • Power Cable
  • Drop-Prevention Wire
  • Mount Bracket
  • 2x Cable Ties
  • Cable Fixing Bracket
  • Lens Cap
  • 4x M4x10mm Screws
  • 2x M4x6mm Screws
  • M2.6x5mm Screw
