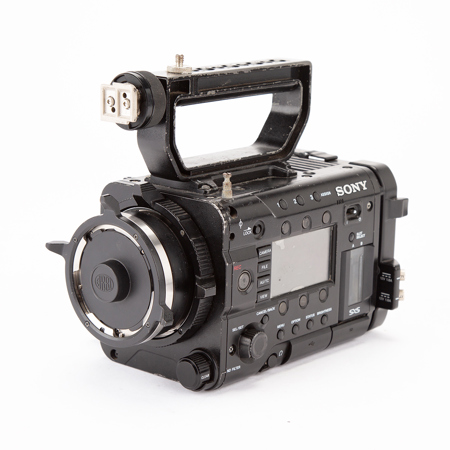

Used Sony PMW-F5 CineAlta 4K Digital Cinema Camcorder, 8.9MP Super 35mm CMOS Image Sensor, Internal 2K and HD Recording, Native FZ-Mount and PL-Mount Adapter, SxS Pro+ Media Cards

SKU: US1958368 MFR: PMW-F5
Earn VIP Reward Points

What`s in the box:

  • Sony PMW-F5 CineAlta Camcorder
  • Lens Mount Adapter
  • Battery Adapter
  • Audio Input Box
  • Screws (4)
  • Tape Measure Hook
  • USB Module IFU-WLM3

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Free Shipping

See Options

Need help? Ask our experts.

Overview
Compare
Learn
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Sony PMW-F5 Specifications

  • Sensor Type

    Super 35mm equivalent single-chip CMOS

  • Pixels

    Total: 11.6 MP
    Effective: 8.9 at 4K, 8.3 at QFHD and HD

  • Sensitivity

    Luminance: 2000 lx, 89.9% reflectance
    Video Gamma: T13 @24p (3200K light source)
    S-Log2 Gamma: ISO 2000 (D55 light source)

  • Dynamic Range

    14 stops

  • Signal to Noise Ratio

    57dB (Video Gamma, 24p, Noise Suppression OFF)

  • Video Recording Format

    MPEG-2 Long GOP
    HD 422 mode: CBR, 50 Mbps max, MPEG-2 422P@HL

  • Audio Recording Format

    Linear PCM (2 ch, 24-bit, 48-kHz)

  • Recording Modes

    XAVC 2K: 2048 x 1920 at 23.98p, 24p, 25p, 29.97p, 50p, 59.94p
    XAVC HD: 1920 x 1080 at 23.98p, 25p, 29.97p, 50p, 59.94p
    MPEG4 SStP: 1920 x 1080 at 23.98p, 24p, 25p, 29.97p
    MPEG2 HD: 1920 x 1080 at 50i, 59.94i, 23.98p, 25p, 29.97p
    MPEG2 HD: 1280 x 720 at 50p, 59.94p

  • Shutter Speed

    1/24s to 1/6,000s

  • Shutter Angle

    4.2 - 360½ (electrical shutter)

  • Slow Shutter

    2, 3, 4, 5, 6, 7, and 8 frame accumulation

  • Slow & Quick Motion Function

    XAVC HD/2K: 1-120p (NTSC) at 23.98p, 29.97p
    XAVC HD/2K: 1-100p (PAL) at 25p

  • White Balance

    Preset (3200K, 4300K, 5500K), Memory, ATW

  • Gain

    -3, 0, 3, 6, 9, 12, 18 dB, AGC

  • Gamma Curve

    Standard (x6)
    HG1, HG2, HG3, HG4, HG7 and HG8
    S-Log2 Gamma

  • Memory Cards

    SxS (x2, ExpressCard 34 slots)
    SD card slot (x1)

  • Video Output

    HD-Y or HD Sync (tri-level) V1.0
    Analog Composite (VUP)

  • HD-SDI Output

    SDI 1/2 Line Output, SDI 3/4 Monitor Output (character on/off)

  • Timecode

    TC IN/OUT switchable (x1)

  • Genlock

    BNC input (x1)

  • HDMI

    A Type output (x1)

  • Audio

    Input: XLR-type 3-pin with Line/Mic/Mic +48V/AES/EBU selectable (x2, female)
    Output: phono jack (CH-1, CH-2)
    Headphone: Stereo mini jack (x1)
    Speaker: monaural

  • USB

    USB device, Mini-B (x1)
    USB host, type-A (x1)

  • Wi-Fi

    USB host, type-A (x1)

  • Shutter

    BNC (x1)

  • DC Output

    4-pin (x1), 11 V to 17 V DC (MAX 2.0A) w/ battery adapter

  • Remote

    8-pin (x1)

  • Lens Mount

    FZ-mount, PL-mount (with supplied adapter)

  • Built-in Filters

    Clear, 0.9 (1/8 ND), 1.8 (1/64 ND)

  • Power Requirements

    DC 12 V (11 V to 17.0 V)

  • Power Consumption

    Approx .24 W (while recording XAVC HD 60p, EVF Off, LCD monitor Off, HD-SDI On)

  • Battery Operating Time

    With BP-FL75: approximately 160 minutes
    With BP-GL95A: approximately 230 minutes

  • Operating Temperature

    32 ~ 104½ F (0 ~ 40½ C)

  • Storage Temperature

    -4½ ~ +140½ F (-20½ ~ +60½ C)

  • Dimensions

    Without protrusions: 7.13 x 7.88 x 12.25" (15.1 x 18.9 x 21 cm)

  • Weight

    Body only: 4.88 lb (2.2 kg)

Related Articles & Videos

NAB: 4K Capture, Display Dominate Pro Show

NAB: 4K Capture, Display Dominate Pro Show

NAB 2013 Show Coverage. As the NAB 2013 show opens, the ARC (Adorama Rental Company) is there in full force, displaying a wide array of recently-announced pro video and digital cinema cameras, including..

Read more
Shooting The Holiday Blockbuster: “The Force Awakens” and the History of Star Wars

Shooting The Holiday Blockbuster: “The Force Awakens” and the History of Star Wars

Now that "The Force Awakens," the latest entry in George Lucas' epic series has been released, here is a brief history of the cinematographers behind the "Star Wars" films.

Read more
F5 and F55 Firmware Update Now Available

F5 and F55 Firmware Update Now Available

Sony releases the latest firmware update for the F5 and F55 CineAlta cameras.

Read more
Two Camera Interview

Two Camera Interview

Join Daniel Norton for On Set as he walks you through the process of setting up a two camera interview.  Whether you want to add life and dimension to a web video or you are shooting for a magazine style TV show, shooting with two cameras will d...

Read more

About Sony PMW-F5 CineAlta 4K Digital Cinema Camcorder - SKU#1958368

The Sony PMW-F5 CineAlta 4K Digital Cinema Camcorder is designed and engineered to create perfectly balanced camera systems capable of delivering an experience that is second to none. A masterful blend of art, technology, and craftsmanship, CineAlta Super 35mm cameras with Sony Super 35mm CMOS Sensors Technology redefine cinematography now and for the future.Expect Spectacular 8K/6K/4K/HD with state-of-the-art image sensors are at the heart of the Sony CineAlta Super 35mm cameras. Super 35mm CMOS sensors deliver pristine images with stunning resolution and virtually zero aliasing whether you shoot in 8K/6K/4K/HD depending on the camera chosen. Even if your post production workflow and deliverables are 2K/HD, these sensors provide gorgeous images that ordinary HD cameras cannot touch.

High Frame Rate
With CineAlta Super 35mm 4K cameras, you can record 2K 1/HD images at variable speeds, up to 120 fps with the F5 and 180 fps with the F55. With the F65, you can record 8K RAW up to 120 fps. High-frame-rate recording allows you to create super slow-motion, which can transform an ordinary moment into a dramatic revelation. With the optional AXS-R5 recorder and AXSM card, the F5 can record 2K RAW up to 120 fps, and the F55 can record 2K RAW up to 240 fps.

Wide Exposure Latitude, High Sensitivity and Low Noise
Sony's new CineAlta Super 35mm 4K image sensors and in-camera image processors capture the finest, most subtle tonal gradations across their impressive 14 stops of exposure latitude. As a result of high sensitivity coupled with very low noise, CineAlta Super 35mm 4K cameras deliver rich and fully textured images. Whether it is ambient illumination of night exteriors or glaring sunlight, your imagery will be faithfully reproduced.

More Colors than Print Film
In addition to incredible dynamic range, CineAlta Super 35mm 4K cameras capture the widest color gamut, even wider than motion picture print film. S-Log2 fully protects this expanded dynamic range and color gamut, from deep shadow to brightest highlights, handing you and your colorist unprecedented flexibility in applying looks and grading for color and contrast.

Cost-efficient High-frame-rate and 4K Production
XAVC employs the highest possible quality of scalable H.264/MPEG-4 AVC Intra-frame compression to capture HD, 2K, QFHD (Quad Full HD), and 4K resolution. Beyond delivering rich, beautiful 10-bit pictures, it establishes an affordable ecosystem for production of high-frame-rate HD and 4K up to 60p using storage-efficient file sizes never before possible. As an example, XAVC 4K at 24p is only 240Mbps. Features include the first native format for 4K video recording at 24p, 25p, 30p, 50p and 60p. Modest bit-rate recording of 100Mbps in HD mode and 300mbs in 4K mode and high frame rate up to HD 180 fps for super slow-motion. Use SXS PRO+ memory card for recording XAVC.

AXSMTM Access Memory Card means time and Cost-saving RAW Recording
Capturing all the RAW data from F5 and F55 sensors requires a new type of ultra-high-speed, high-capacity recording media. Employing unique Sony high-speed recording technology, the new AXSM Access Memory Card provides a blazing sustained transfer speed to record 2K RAW data up to 240 fps (F55) and 4K RAW data up to 60 fps*1 (F55). The cost-efficient AXSM Access Memory Card is also equally at home in both Mac OS X and Windows environments. AXSM uses the modern eXFAT file system (Extended File Allocation Table). Sony takes further advantage of universal eXFAT by introducing an economical card reader, AXS-CR1, with a USB 3.0 interface for easy, high-speed data file transfers to Macs and PCs.

Compact CineAlta Super 35mm 4K Cameras
The F55 and F5 look very similar. Both share the same compact body and accept the same accessories. But, they vary dramatically in features: the F55 by design is best suited to 4K/2K/HD production, while the F5 is tailored to HD/2K production. Both support 2K/4K RAW.

Powerful, Versatile and Configurable Connections
The new F55/F5 CineAlta Super 35mm 4K camera platform provides for powerful connections, including real-time 4K output to a compatible monitor via four 3G-SDI outputs. There is an HDMI output supporting 4K, USB, removable XLR audio module, time code, genlock, DC connection, and more.

Intuitive User Interface
The F55/F5 CineAlta Super 35mm 4K camera platform introduces a new intuitive user interface to operate a rich range of controls. One-touch buttons surround a colorful 3.5-inch LCD display and provide access to key parameters frame rate, shutter angle, color temperature, exposure index, and gamma which can be checked at a glance. Additional assignable buttons mean that favorite adjustments are always at your fingertips.

Sony PMW-F5 CineAlta 4K Digital Cinema Camcorder - SKU#1958368 Features

  • Super 35mm equivalent 4K single-chip CMOS sensor: Sony's 4K image sensor enables a single camera to provide gorgeous, super-sampled HD and 2K while preparing you for the 4K future. With 11.6 MP total and 8.9 MP effective, the Sony 4K captures a true 4K 4096 x 2160 DCI-standard cinema image.
  • 16-bit RAW 2K/4K recording options with bolt-on AXS-R5 recorder: Capture RAW at your choice of resolutions: the camera's native 4K or beautiful, derived 2K. RAW recording preserves the greatest latitude for color correction and other post processes. Sony's 16-bit recording captures more tonal values than the human eye can differentiate.
  • AXS-R5 records onto ASXM memory cards: The bolt-on AXS-R5 recorder records onto high-capacity AXSM memory cards, which are compatible with an affordable optional USB 3.0 reader, the AXS-CR1. Once on a PC, the RAW files can be screened using Sony's free RAW Viewer software.
  • Choice of HD/2K internal recording formats: The F5 CineAlta camera allows a choice of recording formats in addition to 16-bit RAW 2K/4K output onto the AXS-R5. The camera allows a choice of: 8-bit MPEG-2 HD422, 50Mbps; 10-bit XAVC 2K/HD 100Mbps; and SR Codec 10-bit MPEG4 SStP 220, 440 and 880Mbps.
  • High speed shooting up to 120 fps 2K internally and 120 fps 2K RAW with optional AXS-R5 recorder: The F5 features high-data-rate on-board XAVC HD recordings up to 60 fps with a free planned upgrade to XAVC 2K/HD recording at 120 fps. It also offers 120 fps 2K RAW with the optional AXS-R5 outboard recorder and a planned upgrade.
  • Next generation high-speed SxS PRO+ memory cards: The PMW-F5 records internally onto SxS memory. High-speed shooting and the highest quality recording options require next-generation SxS recording media Sony's 64 GB SxS PRO+ memory card which can be read by the next-generation USB card reader, the SBAC-US20.
  • Simultaneous RAW and onboard camera SxS recording: Sony provides coordinated simultaneous recording to internal SxS cards and the optional AXS-R5 RAW recorder. For seamless conforming in post, you get matching time code, start frame, stop frame, file names and other metadata. Supports: RAW 4K/2K + XAVC 2K/HD and RAW 4K/2K + MPEG-2 HD422.
  • Real world workflows: The F5 is part of a larger production platform that includes affordable media cards, affordable card readers, free RAW Viewer software and compatibility with popular NLEs and finishing tools.
  • Vast exposure latitude to 14 f-stops: The ability to render tones from deepest shadows to brightest highlights is a crucial test of any digital camera. The F5 excels, with an impressive 14 stops of exposure latitude, extraordinary low-light sensitivity and extremely low noise in the blacks.
  • Choice of viewfinders: A digital interface on the PMW-F5 allows for a variety of optional viewfinders, including the DVF-EL100. This 0.7-inch viewfinder has the incredible clarity of 1280 x 720 High Definition, plus superb OLED brightness, contrast and response.
  • Optional shoulder rig: The optional Sony shoulder rig provides comfortable handheld operation, hour after hour. The rig is sturdy, lightweight and features industry-standard rosettes on both sides for quick and easy attachment of third-party hand grips and other accessories.
  • Small lightweight design: The small size of the PMW-F5 is particularly welcome in stereoscopic 3D shooting. The chassis is only slightly wider than a typical PL mount prime lens, perfect for both mirror rigs and side-by-side configurations.
  • Choice of lens mounts: The F5 is designed to accommodate PL-mount, FZ-mount and still lenses. With the PL-mount adaptor, you can take advantage of acclaimed cine optics from Ang½nieux, Canon, Carl Zeiss, Cooke, FUJIFILM, Leica and more.
  • Sony PL-mount lenses: The PMW-F5 works with Sony's second generation, cost-effective PL mount prime lenses. Thanks to refined glass, all are certified for 4K capture, while minimizing geometric distortion, vignetting and breathing. A 9-blade iris delivers beautiful bokehs.
  • Wide choice of connections: The camera offers numerous connections to suit your workflow, including four HD-SDI jacks, HDMI, USB, DC in connection, a removable XLR audio module and a removable time code/genlock module.
  • Long-life Olivine battery and quick charger: The F5 takes advantage of Sony's innovative BP-FL75 battery pack, which uses Olivine Lithium Iron Phosphate instead of conventional Lithium Ion cathodes.
  • Battery compatibility: The Olivine battery works with Sony's BC-L90 quick charger. The camera is also compatible with Sony's BP-GL95A, GL65A, L80S and L60S batteries, which use the BC-L70 and L160 chargers.

Warranty Information

This used item has a FREE 180-day warranty. See details.
