Used Kessler Crane CineShooter Pan & Tilt Head

Item Note: Missing Power Port Cover; 3' (0.9m) USB-C Cable; 1/4"-20 Camera Screw; 3/8"-16 Camera Screw; 5/32 Allen Key; Quick Start Guide

SKU: US1958751 MFR: CSH1001
$2,049.00
New: $2,599.00
Used Savings: $550 (21%)
OR
Earn VIP Reward Points

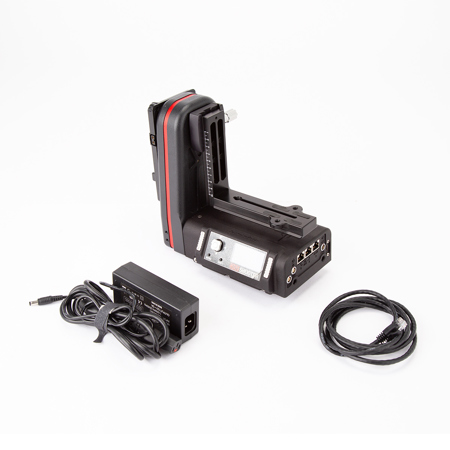

What`s in the box:

  • Kessler Crane CineShooter Pan & Tilt Head
  • Adjustable Arca-Swiss Mounting L-Bracket
  • 12V 5A Power Supply with 5.5x2.1mm Barrel (Center Positive)
  • 12V AC Power Cable ** Item Note: Missing Power Port Cover; 3' (0.9m) USB-C Cable; 1/4"-20 Camera Screw; 3/8"-16 Camera Screw; 5/32 Allen Key; Quick Start Guide **

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Kessler CineShooter Specifications

  • Load Capacity

    15 lbs (6.80kg)

  • Max Speed

    Pan: 387 degrees per second
    Tilt: 175.2 degrees per second (via programming on CineShooter Head directly)

  • External Power Input

    Input Voltage: 11.9 to 15 Volts
    Input Current: 3 Amps minimum - 5 Amps maximum
    Connector Type: Lemo Plug: Pin 1 (closest to the red indicator)- ground, Pin 2 - 12v

  • Operating Temperature

    -4 Degree F to +122 Degree F (-20 Degree C to +50 Degree C)

  • WiFI

    802.11 B/G/N
    Extended operational range of over 200' (approx. 61m)

  • Bluetooth

    Compatible with PS4 and Xbox One Controllers

  • Dimensions (L x W x H)

    8.42 x 4.69 x 8.71" (21.38 x 11.91 x 22.12cm)

  • Weight

    5.4 lbs (2.44kg)

About Kessler Crane CineShooter Pan & Tilt Head - SKU#1958751

You can elevate your filmmaking and photography to new heights with the Crane CineShooter Pan & Tilt Head, a robust and versatile nodal head designed for the modern content creator. This professional-grade tool supports cameras weighing up to 15lbs and offers an impressive 5 axes of motion control right out of the box, ensuring precise and dynamic camera movements for your projects.

The CineShooter is not just a pan and tilt head; it's a comprehensive motion control system that combines the high performance and reliability of Kessler's CineDrive with the affordability and user-friendliness of the Second Shooter systems. It stands at the forefront of camera motion technology, pushing the boundaries of what's possible in camera movement.

Crafted with a durable all-aluminum chassis and impact-resistant housing, the CineShooter is built to withstand the rigors of any set or outdoor environment. Its lightweight design, at just 5.4 lbs, makes it an ideal companion for on-the-go shoots without compromising on stability.

The head features an Arca-Swiss base mount and a fully adjustable Arca-Swiss mounting platform, allowing you to achieve the nodal center for perfect balance and rotation. With the capacity to support cameras up to 15 lbs. and 8" in width, it caters to a wide range of professional camera setups.

Control is at your fingertips with an onboard control surface, complete with a joystick and display interface. The CineShooter is compatible with Kessler's kOS software, the CineShooter Remote mobile app for iOS and Android, and even allows for operation via PS4 and XBOX controllers, offering fully-customizable button mapping.

Explore a variety of shooting modes to suit any scenario, including Live Motion for capturing fluid, cinematic movements, Timelapse with a built-in intervalometer, Stop Motion for frame-by-frame animation, Manual for on-the-fly adjustments, FreeMotion for hand-positioning the camera, Silent Mode for quiet operation, and Fast Mode for high-speed shots and VFX.

Powering the CineShooter is flexible, with options for 12v DC LEMO 2 Pin Power, a 5.5mm x 2.1mm 12v Barrel Connector for MagPak, and optional V-Mount or Gold Mount battery plates for extended shooting sessions.

The accessory ecosystem is ever-expanding, featuring a Smart Handle Module for an additional handling point, a Heavy Duty Support Module to increase the payload capacity up to 25 lbs, and wireless modules for slider and axis expansion. With more accessories on the horizon, the CineShooter is a future-proof investment for serious filmmakers seeking a hybrid system that offers both top-tier performance and cost-effectiveness.

Choose the Crane CineShooter Pan & Tilt Head for a professional, high-quality, and durable solution that adapts to your creative needs, making it the ultimate tool for capturing breathtaking visuals in any production environment.

Kessler Crane CineShooter Pan & Tilt Head - SKU#1958751 Features

  • WiFi and Bluetooth enabled
  • Fewer cables (or none when using just the pan/tilt head)
  • Up to 10 programmable keyframes per axes on-board
  • Backwards compatibility with Second Shooter accessories (includes FIZ, pan, tilt, slide, and turntable motors)
  • Smoother, more efficient Bezier-based motion curves

Warranty Information

This used item has a FREE 180-day warranty. See details.

What's in the box:

  • Kessler Crane CineShooter Pan & Tilt Head
  • Adjustable Arca-Swiss Mounting L-Bracket
  • 12V 5A Power Supply with 5.5x2.1mm Barrel (Center Positive)
  • 12V AC Power Cable
  • Item Note: Missing Power Port Cover; 3' (0.9m) USB-C Cable; 1/4"-20 Camera Screw; 3/8"-16 Camera Screw; 5/32 Allen Key; Quick Start Guide
