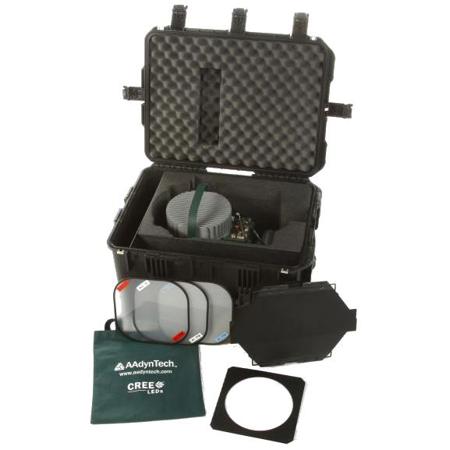

Used AAdynTech JAB Daylight Kit 1, Includes LED Fixture with Yoke and Pin, Barn Door, 1/4 CTO and 1/4 MG Hard Gel, Lenses, Scrim Bag, ATA Road Case

SKU: US2092003 MFR: KIT-DAY-001
Earn VIP Reward Points

What`s in the box:

  • AAdynTech JAB Daylight LED Fixture with Yoke and Pin
  • Forest Green
  • Barn Door
See more

Key Features

  • 1854 foot candle output at 10 feet
  • Draws only 1.77 amp at full output
  • Auto range voltage - 100/277 VAC - 50/60Hz
  • Up to 90% energy savings
  • Precise brightness control with no color shift
  • Single light source eliminates multiple shadows
See More Product Details

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

AAdynTech JAB Daylight Kit Specifications

  • JAB Daylight: No Diffuse at 5'

    Lux: 74710
    Foot Candles: 6940

  • JAB Daylight: No Diffuse at 10'

    Lux: 19960
    Foot Candles: 1854

  • JAB Daylight: No Diffuse at 15'

    Lux: 9004
    Foot Candles: 836

  • JAB Daylight: 15deg. Diffuse at 5'

    Lux: 39100
    Foot Candles: 3632

  • JAB Daylight: 15deg. Diffuse at 10'

    Lux: 9935
    Foot Candles: 923

  • JAB Daylight: 15deg. Diffuse at 15'

    Lux: 4693
    Foot Candles: 436

  • JAB Daylight: 30deg. Diffuse at 5'

    Lux: 16020
    Foot Candles: 1488

  • JAB Daylight: 30deg. Diffuse at 10'

    Lux: 3934
    Foot Candles: 366

  • JAB Daylight: 30deg. Diffuse at 15'

    Lux: 1765
    Foot Candles: 164

  • JAB Daylight: 55deg. Diffuse at 5'

    Lux: 5919
    Foot Candles: 550

  • JAB Daylight: 55deg. Diffuse at 10'

    Lux: 1469
    Foot Candles: 136

  • JAB Daylight: 55deg. Diffuse at 15'

    Lux: 680
    Foot Candles: 63

  • JAB Daylight: 0deg. Diffuser

    Beam Angle: 15.2 deg.
    Field Angle: 29 deg.
    Lumens: 10356
    Candelas: 182388

  • JAB Daylight: 15deg. Diffuser

    Beam Angle: 20.8 deg.
    Field Angle: 38.6 deg.
    Lumens: 9746
    Candelas: 93737

  • JAB Daylight: 30deg. Diffuser

    Beam Angle: 34.3 deg.
    Field Angle: 61.2 deg.
    Lumens: 10915
    Candelas: 36883

  • JAB Daylight: 55deg. Diffuser

    Beam Angle: 50 deg.
    Field Angle: 88.5 deg.
    Lumens: 9336
    Candelas: 14162

  • Control

    Local, UIM, DMX

  • Source

    LED, 5600K CCT

  • Cooling

    Passive

  • Mounting

    Baby Pin

  • Certifications

    ETL, UL, CSA, CE and RoHS Compliant

  • Input Voltage

    100-277v AC, Battery (30v DC)

  • Input Frequency

    50/60Hz

  • Input Current

    1.77 Amp at 120V, 212 Watts at full

  • Connection

    US NEMA 5-15

  • Luminance Output at 10'

    1854 (f/c)

  • Power Usage at 110V AC

    187W

  • Battery Operated(30 Volt DC)

    Yes - Single Battery

  • Kilowatt Hour Year at 24/7 Operation

    1633

  • Heat Emitted

    638 (Btu/Hr)

  • Life Span Element at 24/7 Operation

    60000 Hours
    80 Months

  • Operating Temperature Range

    -20 to 50 deg. C / -4 to 122 deg. F

  • Weather Rating

    IP61

  • Durability

    Yes

  • Flicker Free (frames per second)

    100000fps

  • Dimensions (L x W x H)

    13.3 x 12.9 x 21.8" / 33.78 x 32.77 x 55.37cm

  • Weight

    19.5lbs / 8.85kg

About AAdynTech JAB Daylight Kit 1, Includes LED Fixture with Yoke and Pin, Barn Door, 1/4 CTO and 1/4 MG Hard Gel, Lenses, Scrim Bag, ATA Road Case

The JAB Daylight LED fixture in AAdynTech's JAB Series lineup is one of the most sought after lighting fixtures on the market for good reason. Whether for Broadcast ENG remote field production, fixed studio installation, live sports coverage, video shoots or film, the JAB Daylight provides a wealth of practical benefits and features ideally suited to a wide range of lighting applications. Weighing in at only 19 lbs., its small compact footprint allows for an ease of transport for on-the-go lighting assignments.

An unmatched output of better than 1,850 foot-candles at 10 ft. combined with a maximum current draw of a mere 1.77 amps at full brightness means savings up to 90% A/C energy usage. If that weren't enough; the fixture can be operated on 28.8v DC battery power for situations where conventional A/C supply is problematic or non-existent. Unlike HMI fixtures, the JAB Daylight generates minimal heat and no harmful UV or IR emissions - an important safety consideration for both talent and crew.

The fixture is self-contained with an auto-ranging universal power supply requiring no heavy, expensive ballast, head cables or replacement lamps. The Daylight boasts fan-less convection cooling and flicker-free operation up to 12000 frames per second. As with all AAdynTech fixtures; instant 'ON' ensures no warm-up wait time on set - ever. The Daylight comes equipped with specially designed holographic lenses that provide optical efficiency by creating a single light source, effectively eliminating multiple shadows. These quickchange lenses vary the beam angle for narrow, medium or flood while maintaining a flat, even field.

There are several control possibilities; local onboard manual controls, DMX with DMX loop-thru or the optional illuminated UIM Digital Remote. A heavy-duty yoke is standard. Accessory options include; barn doors, road cases, speed rings, light banks and more. The JAB Daylight is available standalone or as several full Kit versions coupled with varying accessories and housed in a molded ATA Mil-spec rolling case. The remarkable versatility of the AAdynTech JAB Daylight truly puts it into a class of its own.

AAdynTech JAB Daylight Kit 1, Includes LED Fixture with Yoke and Pin, Barn Door, 1/4 CTO and 1/4 MG Hard Gel, Lenses, Scrim Bag, ATA Road Case Features

  • 1854 foot candle output at 10 feet
  • 5600K CCT
  • Draws only 1.77 amp at full output
  • Auto range voltage - 100/277 VAC - 50/60Hz
  • Up to 90% energy savings
  • Precise brightness control with no color shift
  • Single light source eliminates multiple shadows
  • No heat generation - operates cool to the touch
  • Douse button (momentary off)
  • Included 5deg., 15deg., 30deg., 55deg. lenses to vary beam angle
  • No head cables, ballast or spare lamps
  • Optional digital User Interface Module (UIM) control
  • Recalibration countdown hour 'smart' meter (with UIM)
  • Manual, DMX or digital remote control
  • Programmable multiple lightning and strobe effects (with UIM or DMX control)
  • Multiple user memory storage with recall (with UIM)
  • 2 year warranty on fixture
  • Operating temperature at -20c to +50c
  • Certified UL, ETL, CSA, CE & Rosh compliant
  • USA & International Patent Pending
  • No UV or IR

Key Features

  • 1854 foot candle output at 10 feet
  • Draws only 1.77 amp at full output
  • Auto range voltage - 100/277 VAC - 50/60Hz
  • Up to 90% energy savings
  • Precise brightness control with no color shift
  • Single light source eliminates multiple shadows
