AJA HD10A HDTV 10-Bit Analog to Digital Converter
AJA HD10A: Picture 1 thumbnail
AJA HD10A: Picture 2 thumbnail
AJA HD10A: Picture 3 thumbnail
See all AJA items
ClearanceUsed Condition: For Parts

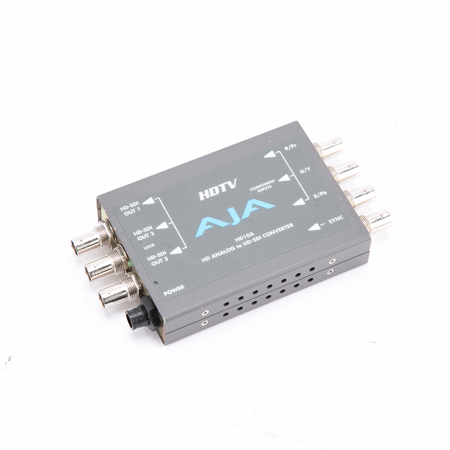

Used AJA HD10A HDTV 10-Bit Analog to Digital Converter

SKU: US1922867 MFR: HD10A
Be the first to review this item
$26.00
Earn VIP Reward Points
See all Used options (1) from $26
Calculate Shipping

See Options

1
Add to List

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

AJA HD10A Specifications

  • Component Inputs

    YPbPr, RGB (SMPTE-274), 3 BNCs

  • External Sync Input (optional)

    If used, supplies Sync; if not used Sync is generated internally

  • HD Serial Outputs

    HD-SDI, SMPTE-292/296, 3 BNCs

  • Output Formats

    SMPTE-292
    1080i 50/59.94/60 Hz
    1080p sf 23.98/24
    1035i 50/59.94/60 Hz
    720p 23.98/24/29.97/30/59.94/60 Hz

  • Frequency Response

    +/- .5dB to 30MHz (Y)
    +/- .25dB to 15MHz (C)

  • Power(AJA power supply model DWP)

    5v DC regulated, 4.5 watt

  • Size

    5.8" x 3.1" x l"(147 x 79 x 25mm)

  • Warranty

    AJA 5 years parts & labor warranty

About AJA HD10A HDTV 10-Bit Analog to Digital Converter

The AJA HD10A is a miniature, high-quality, 10-bit analog to digital converter for HDTV. A companion to the popular HD10C D/A converter, the HD10A can add an HD-SDI output to cameras, computers with HD RGB graphics, VTRs, or other analog-only HD equipment. The HD10A accepts HD YPbPr or RGB analog and outputs three duplicate HD-SDI signals. Works in 1080i, 1035i, 1080psf and 720p with internal or external sync (tri-level).

AJA HD10A HDTV 10-Bit Analog to Digital Converter Features

  • High-Quality 10-bit HDTV A/D Conversion
  • Full Bandwidth Component HD RGB or YPbPr Input
  • Three HD-SDI Outputs
  • Multi-Standard
  • Internal or External Sync
  • Optional 12V Power
  • External DIP switch user interface for configuration
  • Bi-level sync capable (internal jumper)
