Anton Bauer ABP-VCLX 560 CINE VCLX Battery/Charger/Cable/Case Kit - SKU#1730272

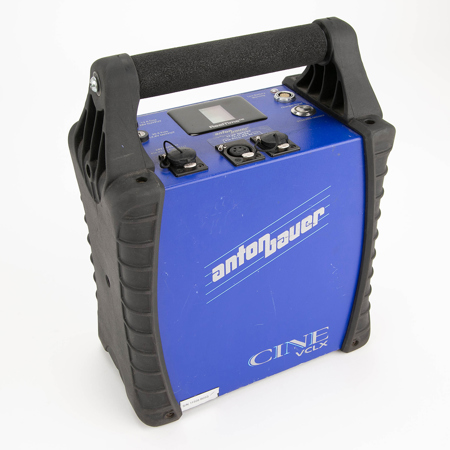

Picture does not represent the actual item
See what's in the box

See all Anton Bauer items

Used Anton Bauer ABP-VCLX 560 CINE VCLX Battery / Charger / Cable / Case Kit

SKU: US1730272

This item is no longer available.

Recommended Items

Anton Bauer VCLX NM2: Picture 1 regular
Anton Bauer VCLX NM2 600Wh Dual Voltage Ni-MH Free-Standing Battery
$4,469.75$3,969.75
Anton Bauer VCLX LI 1600: Picture 1 regular
Anton Bauer VCLX LI 1600 1642Wh Lithium-Ion Free Standing Battery
$5,445.00$5,172.75
Anton Bauer SO-14/28R: Picture 1 regular
Anton Bauer SO-14/28R Simultaneous Voltage Snap-On Belt
$1,662.50$1,401.00
Anton Bauer : Picture 1 regular
Anton/Bauer SO-30/13 Snap-On Gold-Mount Power Belt
$69.00$64.00
Anton Bauer NM38: Picture 1 regular
Anton Bauer NM38 630wh Battery Replacement Module
$2,560.25$2,437.75
Anton Bauer NM44: Picture 1 regular
Anton Bauer NM44 Cell Replacement Module for VCLX NM2 Battery
$2,299.00$2,189.00
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

Anton Bauer ABP-VCLX 560 CINE VCLX Battery/Charger/Cable/Case Kit - SKU#1730272 Specifications

  • Battery: Type

    NiMH

  • Battery: Capacity

    560 Wh

  • Battery: Voltage

    14.4 and 28 V

  • Battery: Amperage

    20 amps at 14.4 V, 12 amps at 28 V

  • Battery: Connectors

    2x 4-pin XLRs for 14.4 V 1x 3-pin XLR for 28 V

  • Charger: Battery Bays

    1

  • Type of Charging

    Can power battery at the same time as functioning as a 14.4 VDC or 28 VDC power supply

  • Charger: Diagnostics

    Automatic Charge Termination
    Lifesaver Maintenance Routine

  • Charger: Connectors

    4-pin and 3-pin Lemos

  • Charger: Power Requirements

    90-250 VAC, 50 or 60 Hz

  • Cable: Connectors

    Lemo to Lemo

  • Dimensions

    Battery: 10x12.8x5.5" / 25.4x32.5x14cm
    Charger: 10.5x2.2x8.5" / 26.6x5.6x21.6cm
    Case:12.7x12x15" / 32.26x30.48x38.1cm

  • Weight

    Battery: 25 lbs / 11.3 kg
    Charger: 4.2 lbs / 1.9 kg
    Case: 15.7 lbs / 7 kg

About Anton Bauer ABP-VCLX 560 CINE VCLX Battery/Charger/Cable/Case Kit - SKU#1730272

The Anton Bauer ABP-VCLX 560 is a CINE VCLX Battery/Charger/Cable/Case Kit. The battery and charger continuously communicate with one another via the battery's onboard computer to achieve maximum power efficiency. The two exchange data such as battery age, self discharge info, charge/discharge rate, cell imbalance and previously experienced charge/discharge cycles.

The battery has a 560 Wh capacity and 14.4V and 28V dual simultaneous output voltages - 14.4V via two 4-pin XLRs and 28V via one 3-pin XLR. Built into the battery is an LCD monitor that accurately displays the percentage of remaining battery capacity at all times. To protect against damage, the battery has a low voltage cut-off feature that automatically shuts off the battery at 12V.

The charger has a 560W draw and charges the battery in approximately 7 hours using the included Lemo to Lemo cable of the kit. The charger can also function as a 14.4V and 28V power supply.

And the case is designed to specifically hold the battery, charger and cable. The case measures 12x15" and features recessed, locking latches.

Anton Bauer ABP-VCLX 560 CINE VCLX Battery/Charger/Cable/Case Kit - SKU#1730272 Features

  • Battery and charger continuously communicate via the battery's onboard computer
  • Battery has a 560 Wh capacity and 14.4V and 28V dual simultaneous outputs by Lemo
  • An LCD monitor built into the battery displays remaining capacity at all times
  • A low voltage cut-off feature automatically shuts off the battery at 12V
  • The charger has a 560W draw and charges the battery in 7 hours with the included Lemo cable
  • The charger can also function as a 14.4V and 28V power supply
  • The case measures 12x15" and features recessed, locking latches

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Anton Bauer ABP-VCLX 560 CINE VCLX Battery
  • CINE VCLX Charger
  • Power Supply
  • CS-GBC Cine Charger Cable
  • CINE VCLX Case
