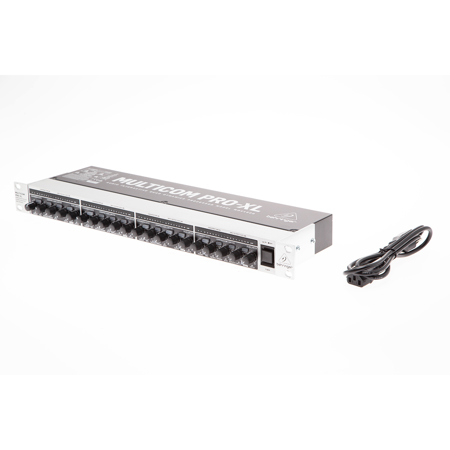

Behringer Multicom Pro-XL MDX4600 4 Channel Compressor/Limiter and Peak Limiter with Dynamic Enhancer & Low Contour Filter, 0.35Hz-200kHz Frequency Response

Picture does not represent the actual item
See what's in the box

See all Behringer items

Used Behringer Multicom Pro-XL MDX4600 4 Channel Compressor/Limiter and Peak Limiter with Dynamic Enhancer & Low Contour Filter, 0.35Hz-200kHz Frequency Response

SKU: US1840830
Be the first to review this item

This item is no longer available.

Recommended Items

undefined undefined: Picture 1 regular
Behringer Multicom Pro-XL MDX4600 V2 Reference-Class 4-Channel Dynamics Processor, Bundle with 2x 10' XLR Microphone Cable
undefined undefined: Picture 1 regular
Behringer Multicom Pro-XL MDX4600 V2 Reference-Class-4 Channel Expander /Gate/Compressor/Peak Limiter with Dynamic Enhancer & Low Contour Filter
undefined undefined: Picture 1 regular
Behringer Composer Pro-XL MDX2600 2-Channel Compressor with De-Esser
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

Behringer MDX4600 Specifications

  • Audio Input Type

    XLR and 1/4" TRS connectors, HF-shielded, servo-balanced

  • Audio Input Impedance +4 dBu

    90 kW bal., 45 kW unbal. at 1 kHz

  • Audio Input Impedance -10 dBV

    180 kW bal., 90 kW unbal. at 1 kHz

  • Audio Input Operating level

    +4 dBu/-10 dBV (switchable)

  • Audio Max. input level

    +22 dBu balanced and unbalanced

  • Audio Input CMRR

    typ. 40 dB, >60 dB at 1 kHz

  • Audio Outputs Type

    XLR and 1/4" TRS connectors, Electronically controlled servo-balanced output stage

  • Audio Outputs Impedance

    95 W bal., 50 W unbal. at 1 kHz

  • Audio Max. output level

    21 dBu, +20 dBm balanced and unbalanced

  • Side chain Inputs Type

    1/4" TS connector, unbalanced, HF-shielded, DC-decoupled

  • Side chain Inputs Impedance

    45 kW

  • Side chain Max. input level

    +24 dBu

  • Side chain Outputs Type

    1/4" TS connector, unbalanced, HF-shielded, DC-decoupled

  • Side chain Outputs Impedance

    50 W

  • Side chain Max. Output level

    +21 dBu

  • System Bandwidth

    20 Hz to 20 kHz, +0/-0.5 dB

  • System Frequency range

    0.35 Hz to 200 kHz, +0/-3 dB

  • System S/N ratio

    115 dB, unweighted, 22 Hz - 22 kHz

  • System THD

    0.008% typ. at +4 dBu, 1 kHz, gain 1
    0.07% typ. at +20 dBu, 1 kHz, gain 1

  • System IMD

    0.01% typ. SMPTE

  • System Crosstalk

    dB at 1 kHz

  • Expander/Gate Section Type

    IRC (Interactive Ratio Control) expander

  • Expander/Gate Section Threshold

    variable (OFF to +10 dB)

  • Expander/Gate Section Ratio

    variable (1:1 to 1:8)

  • Expander/Gate Section Attack

    <1 msec/50 dB, program-dependent

  • Expander/Gate Section Release

    variable SLOW: 100 msec/1 dB, FAST: 100 msec/100 dB

  • Compressor Section Type

    IKA (Interactive Knee Adaptation) compressor

  • Compressor Section Threshold

    variable (-40 to +20 dB)

  • Compressor Section Ratio

    variable (1:1 to infinity:1)

  • Compressor Section Attack/release

    variable (manual or automatic)

  • Compressor Section Auto characteristic

    wave adaptive compressor

  • Compressor Section Manual attack time

    variable (0.3 msec/20 dB to 300 msec/20 dB)

  • Compressor Section Manual release time

    variable (0.05 sec/20 dB to 5 sec/20 dB)

  • Compressor Section Auto attack time

    typ. 15 msec for 10 dB, 5 msec for 20 dB, 3 msec for 30 dB

  • Compressor Section Auto release time

    program-dependent, typ. 125 dB/sec

  • Compressor Section Output

    variable (-20 to +20 dB)

  • Peak Limiter Type

    IGC (Interactive Gain Control) peak limiter

  • Peak Limiter Level

    variable (0 dB to OFF (+21 dBu))

  • Peak Limiter Ratio

    infinity:1

  • Peak Limiter Level 1 limiter type

    clipper

  • Peak Limiter Attack

    "zero"

  • Peak Limiter Release

    "zero"

  • Peak Limiter Level 2 limiter type

    program limiter

  • Peak Limiter Level 2 Attack

    program-dependent, typ. <5 msec

  • Peak Limiter Level 2 Release

    program-dependent, typ. 20 dB/sec

  • Dynamic Enhancer Type

    IDE (Interactive Dynamic Enhancer)

  • Dynamic Enhancer Filter frequency

    2.5 kHz (lower cut-off frequency)

  • Dynamic Enhancer Characteristic

    high-pass filter (6 dB/oct.)

  • Dynamic Enhancer Boost

    max. 28 dB at 7.5 kHz

  • Mains Voltage

    120 V-, 60 Hz

  • Power Consumption

    18 W

  • Fuse

    100 -120 V-: T 630 mA H
    200 -240 V-: T 315 mA H

  • Dimensions

    44.50 x 483.00 x 217.00mm (1.75 x 19.01 x 8.54")

  • Weight

    5.30lbs (11.68lbs)

About Behringer Multicom Pro-XL MDX4600 4 Channel Compressor/Limiter and Peak Limiter with Dynamic Enhancer & Low Contour Filter, 0.35Hz-200kHz Frequency Response

The Behringer Multicom Pro-XL MDX4600 4 Channel Compressor/Limiter and Peak Limiter provides four channels of Interactive Knee Adaptation (IKA) compression/limiting, housed in a single rack space chassis. A peak limiter on all channels helps prevent clipping of the audio source. Each compressor features program dependent attack and release times with a switchable side-chain filter to help with bass dominated compression. Channels 1/2 and 3/4 can be switched as independent pairs for stereo operation and accurate metering and professional connections provide extensive processing power.

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Behringer Multicom Pro-XL MDX4600 4 Channel Compressor/Limiter and Peak Limiter
  • AC Power Cable
