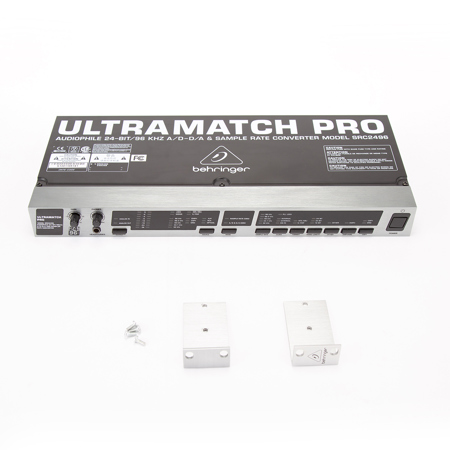

Used Behringer Ultramatch Pro SRC2496 Audiophile 24-Bit/96 kHz A/D-D/A & Sample Rate Converter

32, 44.1, 48, 88.2, 96 kHz

Via digital input and word clock: Accepts all sampling rates between 31 and 100 kHz, automatic synchronization by PLL

XLR, transformer-balanced

110 Ohms

0.2 V to 5 V, peak-to-peak

RCA, transformer-balanced

75 Ohms

0.2 V to 5 V, peak-to-peak

Toslink, optical fiber cable

BNC

50 k Ohms

Word clock (1 x FS)

2 V to 6 V peak-to-peak

XLR, transformer-balanced

110 Ohms balanced

3.5 V peak-to-peak

RCA, transformer-balanced

75 Ohms

0.5 V, peak-to-peak

Toslink, optical fibre cable

XLR, balanced

20 k Ohms

24-bit/96 kHz 128/64 times oversampling delta-sigma AKM A/D converter

-4 dBu to +22 dBu for 0 dBFS, adjustable

>105 dB

XLR, balanced

160 Ohms

24 bit/96 kHz 128 times oversampling delta-sigma AKM D/A converter

+16 dBu at 0 dBFS

>108 dB

Jitter permitted at input: >40 ns
Internal jitter at input: <2 ns
Internal jitter with external Synchronization: <20 ns, 10 ns typ.

Professional, audio use, stereo, no emphasis or 50/15 us, Fs = 32, 44.1, 48, 88.2, 96 kHz

Consumer, audio use, 2-channel original material switchable, copy permit switchable, no emphasis or 50/15 us, Fs = 32, 44.1, 48 kHz; (88.2, 96 kHz not defined)

120 V, 60 Hz

15 W

100 - 120 V: T 250 mA H 250 V
200 - 240 V: T 125 mA H 250 V

Standard IEC receptacle

1.75 x 19 x 8.54" / 4.44 x 48.26 x 21.69cm (approx.)

5.06lbs / 2.29kg (approx.)
