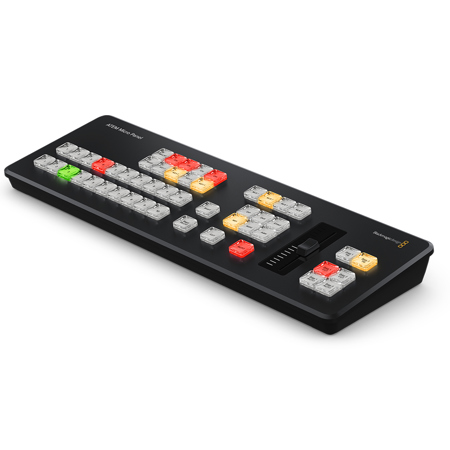

Used Blackmagic Design ATEM Micro Panel

SKU: US1970411 MFR: SWPANELAA1ME10
Earn VIP Reward Points

What`s in the box:

  • Blackmagic Design ATEM Micro Panel

Key Features

  • Enhance live production with this compact ATEM Micro Panel for seamless control.
  • Enjoy wide compatibility; this switcher works with Mac & Windows via USB-C.
  • Create stunning transitions with dedicated DIP, DVE, and stinger transition buttons.
  • Easily manage your video sources with 10 direct and 20 shifted cross points.
  • Use upstream and downstream key buttons to add professional effects to your video.
  • Portable design with internal battery and USB-C charging for on-the-go streaming.
See More Product Details

INCLUDES FREE WARRANTY

  • This used item comes with a free 1-year warranty. ?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$69.99

3 Year

$94.99

4 Year

$119.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Blackmagic Design ATEM Micro Panel Specifications

Connections

Connections

Jump to...
  • Computer Interface

    USB Type-C

  • Bluetooth

    Bluetooth 5.1 LE

Product Specifics

Jump to...
  • Number of Mix Effects Rows

    1

  • Direct Cross Points

    10

  • Shifted Cross Points

    20

  • Crosspoint Button Type

    Tri-Color LED

  • Preview Transition

    1

  • Switching Type Buttons

    CUT and AUTO

  • Transition Type Buttons

    DIP, DVE, STINGER, MIX, WIPE

  • M/E Select Buttons

    4

  • Upstream Key Buttons

    4 with ON/OFF

  • Downstream Key Buttons

    2 with ON/OFF

  • Transition Slider

    1

Software

Jump to...
  • Software Applications

    ATEM Micro Panel controls ATEM Software Control Panel running on the host computer

Operating Systems

Jump to...
  • Operating Systems

    Mac: Mac 13.0 Ventura, Mac 14.0 Sonoma or later
    Windows: Windows 10 and 11

Power Requirements

Jump to...
  • Power Supply

    Internal battery with power switch
    USB-C port for external power supply and battery charging

  • Power Usage

    3 W max

Environmental

Jump to...
  • Operating Temperature

    5 Degree to 40 Degree C (41 Degree to 104 Degree F)

  • Storage Temperature

    -20 Degree to 45 Degree C (-4 Degree to 113 Degree F)

  • Relative Humidity

    0% to 90% non-condensing

Physical

Jump to...
  • Dimensions

    16.14 x 5.35 x 1.63" (41 x 13.58 x 4.14cm)

  • Weight

    2.31 lbs (1.04kg)

About Blackmagic Design ATEM Micro Panel

Take your video production to the next level with the ATEM Micro Panel, a high-quality hardware panel designed for seamless physical switching in conjunction with ATEM Software Control. This compact yet powerful device mirrors the professional design of the ATEM Advanced Panels, featuring high-end backlit buttons and a sleek, low-profile manual transition fader, making it an incredibly portable solution for your broadcasting needs.

The ATEM Micro Panel boasts two rows of ten buttons for program and preview, along with a shift button that allows you to access up to 20 sources. This feature-rich device also includes buttons for upstream and downstream keyers, transitions, preview transition, and macros. With the addition of four M/E buttons, this panel is capable of working with even the most extensive switchers.

Connectivity is a breeze with the ATEM Micro Panel. You can easily connect it to the ATEM Software Control computer via USB-C. Alternatively, the panel's large internal battery supports wireless connection via Bluetooth for hours of uninterrupted use, making it an ideal choice for on-the-go broadcasting.

The ATEM Micro Panel is not just a cost-effective solution; it's a gateway to professional-quality broadcasting. It shares the same high-end buttons as the ATEM Advanced Panels, providing a true broadcast-quality feel. The panel's layout is intuitive, with buttons for program and preview, four upstream and two downstream key buttons, a macro button, and four M/E buttons for controlling a massive 4 M/E switcher.

The panel's fader allows for smooth manual transition control, further enhancing its portability. Whether you're connecting via USB-C or Bluetooth, the ATEM Micro Panel is the perfect companion when you need a portable, professional-grade control panel. This device is specifically designed to work seamlessly with ATEM Software Control and includes buttons for program and preview, keyers, transitions, macros, and fader control.

Blackmagic Design ATEM Micro Panel Features

  • High-end backlit buttons and low-profile manual transition fader for a true broadcast-quality feel
  • Lightweight and low-profile design makes it incredibly portable, perfect for on-the-go setups
  • Familiar layout with two rows of buttons for program and preview, plus shift buttons to access up to 20 sources
  • Buttons for upstream and downstream keyers, transitions, macros, and 4 M/E buttons for controlling large switchers
  • Connects to ATEM Software Control computer via USB-C or wirelessly via Bluetooth
  • Offers affordable panel control without compromising on quality or functionality

Warranty Information

This used item has a FREE 1-year warranty. See details.

Key Features

  • Enhance live production with this compact ATEM Micro Panel for seamless control.
  • Enjoy wide compatibility; this switcher works with Mac & Windows via USB-C.
  • Create stunning transitions with dedicated DIP, DVE, and stinger transition buttons.
  • Easily manage your video sources with 10 direct and 20 shifted cross points.
  • Use upstream and downstream key buttons to add professional effects to your video.
  • Portable design with internal battery and USB-C charging for on-the-go streaming.
