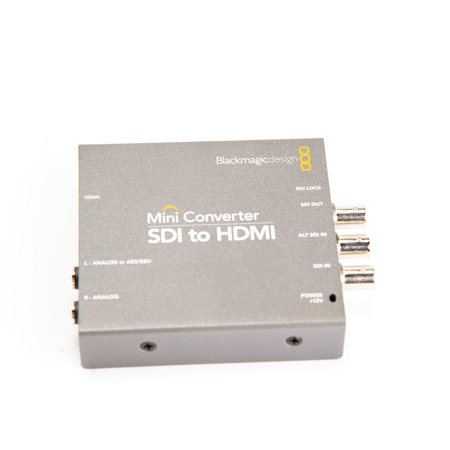

Used Blackmagic Design Mini Converter SDI to HDMI with Embedded Audio #CONVMBSH

SKU: US1908840 MFR: CONVMBSH
$61.00
Earn VIP Reward Points

Key Features

  • Embedded Audio
See More Product Details

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$11.99

2 Year

$18.99

3 Year

$28.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Blackmagic Design Mini Converter SDI to HDMI with Embedded Audio #CONVMBSH Specifications

  • SDI Video Input

    Switchable between SD, HD and 3 Gb/s SDI

  • SDI Redundant Input

    Automatically switches over if main SDI input is lost

  • SDI Video Outputs

    Switchable between SD, HD and 3 Gb/s SDI

  • Dual Rate Support

    Auto detection of HD or standard definition SDI inputs

  • Updates and Configuration

    Via USB 2.0 high speed. (480 Mb/s)

  • Re-clocking

    Yes

  • Analog Audio

    2 channels of professional balanced analog audio with standard 1/4 inch jack connections

  • Digital Audio

    2 channels of professional balanced digital with standard 1/4 inch jack connections. AES/EBU standard

  • HDMI

    HDMI out

  • SDI Format Support

    625/25 PAL, 525/29.97 NTSC, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94 and 720p60

  • SDI Compliance

    SMPTE 292M, SMPTE 259M, SMPTE 296M, ITU-R BT.656 and ITU-R BT.601

  • SDI Video Sampling

    4:2:2

  • SDI Video Rates

    SDI video connections are switchable between standard definition and high definition

  • SDI Color Precision

    4:2:2

  • SDI Color Space

    YUV

  • SDI Audio Sampling

    Television standard sample rate of 48 kHz and 24 bit

  • SDI Auto Switching

    Automatically selects between SD SDI, HD-SDI and 3 Gb/s SDI

  • Analog Format Support

    625/25 PAL, 525/29.97 NTSC, 1080PsF23.98, 1080PsF24, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94 and 720p60

  • Analog Color Precision

    4:2:2

  • Analog Color Space

    YUV

  • HDMI Format Support

    625/25 PAL, 525/29.97 NTSC, 625/50p PAL, 525/59.94p NTSC, 1080p23.98/24, 1080i50, 1080i59.94/60, 720p50 and 720p59.94/60

  • HDMI Color Precision

    4:2:2 and 4:4:4

  • HDMI Color Space

    YUV and RGB

  • Software Control

    Mac OS X and Windows software upgrade via USB

  • Settings Control

    Mini Switches or USB software

  • Firmware Upgrade

    Via included firmware updater application

  • Power Supply

    +12V universal power supply included; Cable tie point

  • Warranty

    Blackmagic Design 3 Year Limited Warranty

About Blackmagic Design Mini Converter SDI to HDMI with Embedded Audio #CONVMBSH

The Blackmagic Design Mini Converter SDI to HDMI converts from SDI to HDMI video with embedded HDMI audio, plus balanced AES/EBU or analog audio. Imagine using big screen televisions and video projectors for broadcast video monitoring. It allows to easily connect HDMI displays to SDI based equipment.

Blackmagic Design Mini Converter SDI to HDMI with Embedded Audio #CONVMBSH Features

  • SDI to HDMI Conversion: Use this device to convert SDI video sources to HDMI video output
  • Embedded Audio: This unit can embed SDI audio from balanced AES/EBU or analog audio inputs

Warranty Information

This used item has a FREE 180-day warranty. See details.
