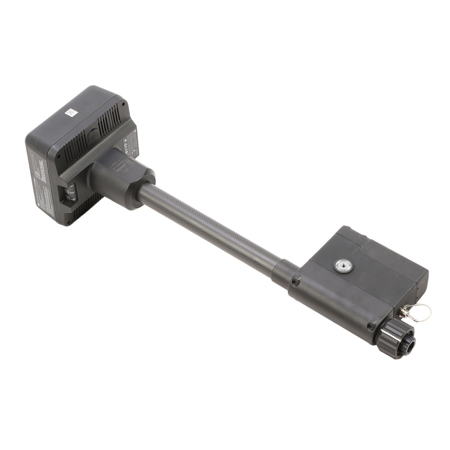

DJI D-RTK 2 High Precision GNSS Mobile Station - SKU#1787804

Picture does not represent the actual item
See what's in the box

See all DJI items

Used DJI D-RTK 2 High Precision GNSS Mobile Station

SKU: US1787804

This item is no longer available.

Buy it New

DJI D-RTK 2 High Precision GNSS Mobile Station
DJI D-RTK 2 High Precision GNSS Mobile Station
$3600.00
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

DJI D-RTK 2 Specifications

Receiver

Receiver

Jump to...

  • GNSS

    Simultaneously receive
    GPS: L1 C/A, L2, L5
    Beidou: B1, B2, B3
    GLONASS: F1, F2
    GALILEO: E1, E5A, E5B

  • Positioning Accuracy

    Single Point
    Horizontal:1.5 m(RMS)
    Vertical:3.0 m(RMS)

    RTK
    Horizontal: 0.4" / 1 cm+ 1 ppm (RMS)
    Vertical: 0.8" / 2 cm+ 1 ppm (RMS)
    1 ppm: For every 0.62 mi / 1 km increase in distance the accuracy will be 0.04" / 1 mm less.
    For example, the horizontal accuracy is 0.43" / 1.1 cm when the receiving end is 0.62 mi / 1 km away from the base station.

  • Positioning

    Update Rate: 1 Hz, 2 Hz, 5 Hz, 10 Hz, and 20 Hz

  • Cold Start

    < 45 Seconds

  • Hot Start

    < 10 seconds

  • Recapture Time

    < 1 Seconds

  • Initialization Reliability

    >99.9%

  • Differential

    Data Format: RTCM 2.x/3.x

Communications

Jump to...

  • Data Link Protocol

    OcuSync, Wi-Fi, LAN, and 4G

  • Operating Frequencies

    2.400 GHz to 2.483 GHz (China, United States, Australia, Europe, Japan, Korea)
    5.725 GHz to 5.850 GHz (China, United States, Australia)

  • EIRP

    OcuSync
    2.4 GHz
    SRRC (Mainland China) / CE (Europe) / MIC (Japan) / KCC (Korea): < 20 dBm
    FCC (United States, Australia) / NCC (Taiwan, China): < 26 dBm
    5.8 GHz
    FCC (United States, Australia) / SRRC (Mainland China) / NCC (Taiwan, China): < 26 dBm

  • EIRP (Contd.)

    Wi-Fi
    2.4 GHz
    SRRC (Mainland China) / CE (Europe) / MIC (Japan) / KCC (Korea): < 20 dBm
    FCC (United States, Australia) / NCC (Taiwan, China): < 22 dBm
    5.8 GHz
    FCC (United States, Australia) / SRRC (Mainland China) / NCC (Taiwan, China): < 22 dBm

  • Communication Distance

    Operating Mode 1/3
    SRRC/NCC/FCC/MIC/KCC/CE: 2 km
    (Unobstructed and free of interference, when the D-RTK 2 Mobile Station is used as a base station and the distance from the D-RTK 2 antenna to the bottom of the tripod is 1.8 m, when the difference in height between the remote controller and D-RTK 2 is less than 2 m, and when the remote controller is 1.2 m from ground level)

  • Communication Distance (Contd.)

    Operating Mode 4
    Between the aircraft and mobile station:
    NCC/FCC: 7 km; SRRC/MIC/KCC/CE: 5 km
    Between the remote controller and mobile station: 200 m (Unobstructed and free of interference at a flying altitude of about 120 m, when the distance from the D-RTK 2 antenna to the bottom of the tripod is 1.8 m, and when the remote controller is 1.2 m from ground level)

  • Communication Distance (Contd..)

    Operating Mode 5
    NCC/FCC: 12 km; SRRC/MIC/KCC/CE: 6 km
    (Unobstructed and free of interference, when the distance from the D-RTK 2 antenna to the bottom of the tripod is 1.8 m)

  • Memory Capacity

    16 GB

Electrical Characteristics

Jump to...

  • Power Consumption

    12 W

  • Power Supply

    16.5 to 58.8VDC

  • Battery Info

    Required, included

  • Battery Material

    Lithium ion

  • Battery Quantity

    1

  • Battery Type

    Non-universal

  • Battery Capacity

    4920 mAh

  • Battery Energy

    37.3 Wh

  • Run Time

    WB37 Battery: > 2 hours
    MG-12000P Battery: > 50 hours

General

Jump to...

  • Operating Temperature

    4 Degree to 131 Degree F (-20 Degree to 55 Degree C)

  • IP Rating

    IP65

  • Dimensions

    D-RTK 2 Body with Extension Rod: 6.6 x 6.6 x 67.2" (16.8 x 16.8 x 170.8cm)

About DJI D-RTK 2 High Precision GNSS Mobile Station - SKU#1787804

Because precision and reliability are paramount in surveying and mapping applications, the D-RTK 2 High Precision GNSS Mobile Station from DJI is an advanced, high-tech solution designed to deliver unparalleled accuracy. This upgraded GNSS receiver supports all major global satellite navigation systems, including GPS, GLONASS, Beidou, and GALILEO, providing real-time differential corrections that yield centimeter-level positioning data for superior relative accuracy.

The D-RTK 2 Mobile Station is not just precise, but also quick and easy to set up. Its high-gain antenna ensures optimal signal reception from a multitude of satellites, even in the presence of obstructions, enhancing the accuracy of drone-based operations.

Designed for seamless connectivity, this high-precision GNSS mobile station supports multiple communication modes, including 4G, OcuSync, WiFi, and LAN. This ensures uninterrupted, stable data transmission under any application scenario. It can connect to up to five remote controllers simultaneously when used with DJI Agras drones, the Phantom 4 RTK, or the P4 Multispectral, and can even connect to multiple aircraft when used with the Matrice 300 RTK. This multi-drone connectivity opens up possibilities for coordinated operations, significantly boosting efficiency.

Durability is another key feature of the D-RTK 2 Mobile Station. With an IP65 level ingress protection and a lightweight carbon fiber body, this portable GNSS mobile station is built to withstand tough conditions. Its built-in IMUs monitor movements and calibrate the tilt sensors, alerting the operator of any abnormalities during the mission, thereby minimizing risks.

The D-RTK 2 Mobile Station is a comprehensive solution compatible with a range of DJI products including Phantom 4 RTK, P4 Multispectral, MG-1P RTK, Agras T16, Agras T20, Matrice 210 RTK V2, and Matrice 300 RTK. It also supports DPS (DJI Positioning Service), providing high precision positioning data within the cover range of the base station. This makes it an ideal tool for a variety of industrial applications, including surveying, aerial inspections, and agriculture.

DJI D-RTK 2 High Precision GNSS Mobile Station - SKU#1787804 Features

  • Optimized Accuracy, Ultimate Reliability
  • Centimeter-Level Positioning
  • Stay Connected for Any Mission
  • Durability You Can Trust
  • A Comprehensive Solution

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • RTK 2 Body
  • Extension Rod
  • Charging Hub
  • AC Power Adapter
  • 2x Intelligent Battery (WB37)
  • Battery Cover
  • AC Power Cable
  • USB Type-C Cable
  • USB Type-C OTG Cable
  • Hex Key
