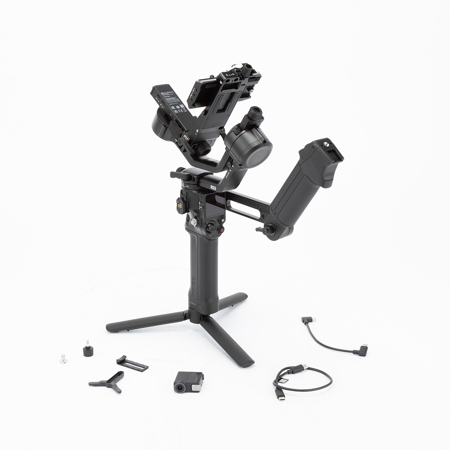

Used DJI DJI RS 5 Gimbal Combo Kit with AI Tracking Module & Briefcase Handle

SKU: US2048968 MFR: CP.RN.00000497.03
Earn VIP Reward Points

What`s in the box:

  • DJI RS 5 Handheld Gimbal Stabilizer
  • Quick-Open Tripod
  • BG33 Battery Grip
See more

Key Features

  • Capture incredibly smooth footage with advanced 3-axis stabilization, perfect for dynamic action shots.
  • Enjoy extended shooting sessions with an impressive 14-hour battery life, keeping your creativity flowing.
  • Its lightweight and portable design, weighing just 2.63 lbs, makes this handheld gimbal ideal for travel.
  • Effortlessly balance your camera with intuitive controls, ensuring quick setup for any filming scenario.
  • Supports a robust 6.6 lbs payload capacity, accommodating a wide range of professional mirrorless cameras.
  • Experience superior build quality and responsive performance, delivering reliable results for every project.
See More Product Details

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

DJI RS 5 Specifications

RS 5 Gimbal Stabilizer

RS 5 Gimbal Stabilizer

Jump to...
  • Color

    Black

  • Accessory Port

    Ronin Series Accessories (RSA)/NATO Ports
    1/4"-20 Mounting Hole
    Cold Shoe
    Camera Control Port (USB-C)
    Multifunctional Port (USB-C)

  • Connections

    Bluetooth 5.0
    USB-C Charging Port

  • Ronin App Requirements

    iOS 14.0 or above
    Android 9.0 or above

  • Languages Supported by the Touchscreen

    English, Simplified Chinese, Traditional Chinese, German, French, Korean, Japanese, Spanish, Portuguese (Brazil), Russian, Thai

  • Tested Payload

    6.6 lbs (3kg)

  • Maximum Controlled Rotation Speed

    Pan: 360 Degree /s
    Tilt: 360 Degree /s
    Roll: 360 Degree /s

  • Mechanical Range

    Pan Axis: 360 Degree continuous rotation
    Roll Axis: -95 Degree to +240 Degree
    Tilt Axis: -112 Degree to +214 Degree

  • Axis Lock

    Auto

  • Vertical Shooting

    Supported

  • Operating Frequency

    2.4000-2.4835 GHz

  • Bluetooth Transmitter Power

    < 8 dBm

  • Operating Temperature

    -4 to 113 Degree F (-20 to 45 Degree C)

  • Battery

    Model: BHX715-2150-15.48
    Type: LiPo 4S
    Capacity: 2150 mAh
    Energy: 33.29 Wh
    Voltage: 11.2 V to 17.8 V
    USB Input: 5 V/3 A, 9 V/3 A, 12 V/3 A, 15 V/3 A, 20 V/3 A Max Standby Time Approx. 14 hours
    Charging Time: Approx. 1 hour
    Suggested Charging Temperature: 41 to 104 Degree F (5 to 40 Degree C)

  • Battery Info

    Required, Included

  • Battery Material

    Lithium Ion

  • Battery Type

    Non-Universal

  • Battery Quantity

    1

  • Dimensions (L x W x H)

    Folded: 9.74 x 4.55 x 10.18" (247.4 x 115.7 x 258.7mm) (excluding camera, grip, and Quick-Open Tripod)
    Unfolded: 8.78 x 7.56 x 16.48"(223.2 x 192.2 x 418.8mm) (including grip, excluding camera and Quick-Open Tripod)

  • Weight

    Gimbal: 2.63 lbs (1193g) (Approx.) (including the Upper and Lower Quick-Release Plates and screws)
    Grip: 9.6 oz (274g) (Approx.)
    Quick-Open Tripod: 4.8 oz (149g) (Approx.)
    Upper and Lower Quick-Release Plates: 3.36 oz (93g) (Approx.) (including screws)

RS Enhanced Intelligent Tracking Module

Jump to...
  • Tracking Distance

    0.5-10 m

  • Operating Environment

    Illuminance > 20 lux

  • Trigger Modes

    Gimbal trigger, gesture, gimbal touchscreen

  • Gesture Functions

    Start/stop of tracking, start/stop of recording, framing adjustment

  • Power Consumption

    Approx. 1 W

  • Operating Temperature

    14 to 113 Degree F (-10 to 45 Degree C)

  • Mounting Method

    Magnetic attachment

  • Dimensions (L x W x H)

    1.41 x 0.68 x 1.51" (35.9 x 17.5 x 38.5mm)

  • Weight

    0.64 oz (19g) (Approx.)

Electronic Briefcase Handle

Jump to...
  • Standby Power Consumption

    Approx. 0.2 W

  • Operating Temperature

    -4 to 113 Degree F (-20 to 45 Degree C)

  • Dimensions (L x W x H)

    2.36 x 7.77 x 3.12" (60 x 197.5 x 79.5mm)

  • Weight

    5.28 oz (149g) (Approx.)

26 Accessories for DJI DJI RS 5 Gimbal Combo Kit with AI Tracking Module & Briefcase Handle

  • All Accessories (26)
  • Handles (1)
  • Tracking Module (1)
  • Battery Grips (1)
  • Quick Release Plates (2)
  • Tripods & Monopods (2)
  • Transmitters & Receivers (2)
  • Grips & Handles (4)
  • Weights (1)
  • Quick Release Systems & Plates (1)
  • Cables & Adapters (3)
  • Power Supply & Accessories (4)
  • Brackets & Mounts (3)
  • Recording Monitor (1)

About DJI DJI RS 5 Gimbal Combo Kit with AI Tracking Module & Briefcase Handle

DJI RS 5. Lead the Scene.

The lightweight commercial stabilizer DJI RS 5 features the new RS Enhanced Intelligent Tracking Module, allowing you to select a person, vehicle, pet, or any object on the built‑in touchscreen for effortless subject tracking. Fine‑tuning knobs on each axis arm, along with Teflon interlayers, deliver smooth and precise balancing. The new Electronic Briefcase Handle offers direct gimbal and camera control, unlocking more creative moves and shooting angles. Combined with faster charging and extended battery life, DJI RS 5 empowers solo creators and small studios to produce like pros.

Enhanced Intelligent Tracking and Composition

The DJI RS 5's new tracking module makes it incredibly easy to keep your subject in the frame. Just tap a person, vehicle, pet, or object on the built-in touchscreen, and the stabilizer will smoothly and automatically follow them as they move.

DJI RS 5 Stabilizer Intelligent Tracking Module

Enhanced Algorithm & Torque

With the 5th-Generation RS Stabilization Algorithm and a 50% increase in peak motor torque (compared to the previous generation), movements are exceptionally fluid.

DJI RS 5 Stabilizer Enhanced Algorithm

Carries Mainstream Setups

Switches to vertical shooting without extra accessories. With a robust 3kg (6.6lbs) playload capacity, it carries mainstream mirrorless camera and lens combinations.

DJI RS 5 Stabilizer Mainstream Setups

New Z-Axis Indicator

Achieving the perfect camera balance is simpler than ever. This new visual guide helps you easily check if your camera is properly aligned on the vertical axis, which is essential for keeping your video footage as smooth and steady as possible.

DJI RS 5 Stabilizer Instant Feedback

Electronic Briefcase Handle with Gimbal and Camera Control

This specialized handle allows you to comfortably hold the camera lower to the ground for unique, creative angles. The DJI RS 5 also features built-in controls, meaning you can adjust both your camera and stabilizer settings directly from the handle without having to shift your grip.

DJI RS 5 Stabilizer Electronic Briefcase Handle

1-Hour Full Charge and 15% Extended Runtime

The DJI RS 5 lets you spend more time filming and less time waiting around. Its battery fully charges in just one hour and lasts 15% longer than previous DJI RS models.

DJI RS 5 Stabilizer Full Charge in 1 Hour

Bluetooth Shutter for More Cameras

In addition to Sony, Canon, and Nikon, the Bluetooth shutter now supports specific Panasonic and Fujifilm cameras, enabling wireless control of shutter, zoom, and Clear Image Zoom.

DJI RS 5 Stabilizer Bluetooth Shutter

Fine-Tuning Knobs and Teflon Enhanced Balancing

Getting your camera perfectly balanced before filming is now smoother and much more precise. Special Teflon layers reduce friction on the arms, while simple twist knobs let you make tiny, exact adjustments so your camera sits perfectly level.

DJI RS 5 Stabilizer Knobs

3rd-Gen Native Vertical Filming

Loosen and press the single-side knob, remove the horizontal plate, rotate it 90o, and then tighten it back in place – done in just a few seconds.

DJI RS 5 Stabilizer Vertical Filming

2nd-Gen Automated Axis Locks

Pack up and set up in seconds. This stabilizer's automated locks securely hold the stabilizer's moving arms in place when you turn it off, making it safe to travel with. When you power it back on, the arms instantly unlock so you can start shooting right away.

DJI RS 5 Stabilizer Automated Axis Locks

Support for DJI Focus Pro Motor

When paired with two Focus Pro Motors, RS 5 allows you to adjust the lens zoom via the joystick and control the focus via the dial.

DJI RS 5 Stabilizer Support for DJI Focus Pro Motor

BG70 High-Capacity Battery Grip

Extends RS 5’s battery standby time to 30 hours, ideal for extended filming like e
vents, weddings, or outdoor projects without frequent battery swaps.

DJI RS 5 Stabilizer Battery Grip
DJI RS 5 Stabilizer SDR Transmission

Support for DJI SDR Transmission

You can utilize the SDR Transmission for high-definition live feeds, remote gimbal and camera control, Force Mobile, and more.

DJI RS 5 Stabilizer RSA Communication Port

RSA Communication Port

Connects to the Electronic Briefcase Handle and more accessories. The open RS SDK also lets third-party developers create custom functions.

Dual-Layered Quick-Release Plates

The Arca-Swiss upper plate and Manfrotto lower plate allow quick switching between gimbal and tripod without rebalancing, thanks to position memory.

DJI RS 5 Stabilizer Quick-Release Plates

Warranty Information

This used item has a FREE 180-day warranty. See details.
