DJI Part 17 Focus Motor for Ronin-S Focus Wheel - SKU#1891900

Picture does not represent the actual item
See what's in the box

See all DJI items

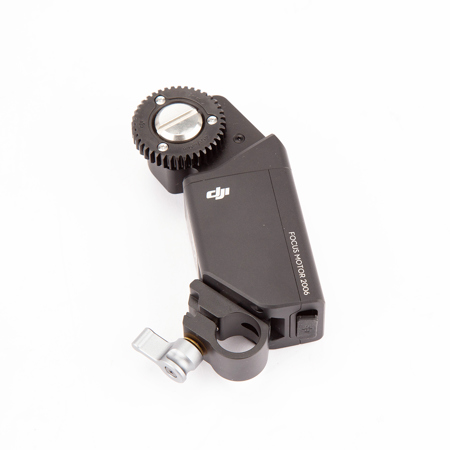

Used DJI Part 17 Focus Motor for Ronin-S Focus Wheel

SKU: US1891900

This item is no longer available.

Recommended Items

DJI Focus Pro Grip: Picture 1 regular
DJI Focus Pro Grip
$409.00$329.00
DJI Focus Motor: Picture 1 regular
DJI Ronin-SC Focus Motor
$119.00
DJI RS 4/RS 4 Pro: Picture 1 regular
DJI RS 4 Pro Combo Gimbal Stabilizer
$1,099.00$1,094.99
DJI Focus Motor: Picture 1 regular
DJI Ronin-SC Focus Motor Rod Mount
$25.00
DJI 3D Focus System: Picture 1 regular
DJI Ronin 3D Focus System for DJI RS 2
$169.00
Overview
Compare
Learn
Specs
Protection
Q&A

Questions & Answers

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

DJI Focus Motor Specifications

Compatibility

Compatibility

Jump to...

  • Compatibility

    Ronin-S Focus Wheel

Focus Motor

Jump to...

  • Maximum Torque

    0.5 Nm

  • Maximum Speed

    210 RPM

  • Operating Current

    Free current: 25 mA (12 V)
    Stall current: 0.5 A (12 V)

  • Operating Voltage

    6-17 V

  • Noise

    25 dB

  • Rod Clamp Inner Diameter

    15mm (0.59")

  • Gear

    No. of teeth: 40
    Module: 0.8

  • Operating Temperature

    -20 to 55 deg. C (-4 to 131 deg. F)

Gear

Jump to...

  • No. of Teeth

    151

  • Module

    0.8

  • Diameter

    30 to 110mm (1.18 to 4.33")

  • Length

    377mm (14.84")

General

Jump to...

  • Dimensions

    Focus Motor: 110 x 53 x 30mm (4.33 x 2.09 x 1.18")

  • Weight

    Focus Motor: 198g (6.98 oz) (power cable included)

Related Articles & Videos

DJI Announces New RS3 Gimbal and Accessories

DJI Announces New RS3 Gimbal and Accessories

Read more

About DJI Part 17 Focus Motor for Ronin-S Focus Wheel - SKU#1891900

FEATURED REVIEWS

Yes, worth it!

By TOBY W.

High quality build as expected from DJI.

Dji rs3 focus motor

By glenn s.

This focus motor is great

The Ronin-S Focus Motor is used with the Ronin-S Focus Wheel to control the focus, iris and zoom.

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • DJI Focus Motor
  • Rod Mount
  • 2x 15mm Rod
  • 2x Focus Gear Strip
  • Power Cable
