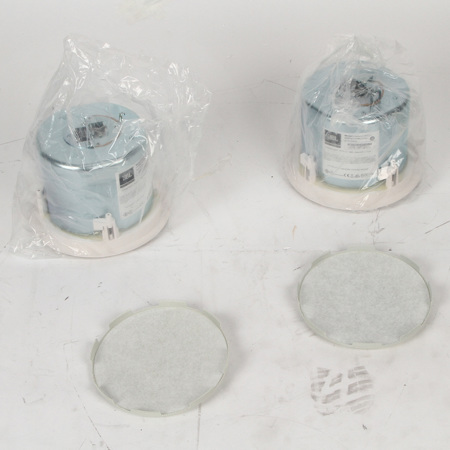

Used JBL Control 26CT Two Way Vented Ceiling Speaker with Built-in Transformer, 6.5" Woofer, Pair

SKU: US1334657

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

JBL 26CT In-Ceiling Speaker Specifications

  • Freq. Range (-10 dB)

    75 Hz - 20 kHz

  • Power Capacity

    150 Watts Continuous Program Power
    75 Watts Continuous Pink Noise

  • Nominal Sensitivity

    89 dB SPL, 1W @ 1 m (3.3 ft)

  • Nominal Coverage Angle

    110Deg. conical coverage

  • Directivity Factor (Q)

    5.9 averaged 500 Hz to 4 kHz

  • Directivity Index (DI)

    4.6 averaged 500 Hz to 4 kHz

  • Rated Maximum SPL

    107 dB @ 1 m (3.3 ft)

  • Transformer Taps

    070V: 60W, 30W, 15W & 7.5W taps
    100V: 60W, 30W & 15W taps

  • Low-Frequency

    165 mm (6.5 in) Polypropylene-coated, 1" coil on aluminum former

  • High-Frequency

    19 mm (3/4 in) Titanium coated polyester

  • Enclosure

    Backcan: Formed steel
    Baffle/Rim: Medium impact polystyrene, fire rated UL94V-0

  • Overload Protection

    Full-range power limiting to protect network and transducers (not on Control)

  • Termination

    Removable locking connector with screw-down terminals. 2 input terminals and 2 loop-thru output terminals. Max. wire 12 AWG (2.5 mm2)

  • Cutout Size

    220 mm (8.75 in)

  • Dimensions

    8.3 x 9.9 in. (210 x 252 mm) 7.5 in. (190 mm) front of ceiling tile to back of back can

  • Weight

    7.5 lbs. (3.4 kg) CT: 10 lbs. (4.2 kg) each

About JBL Control 26CT Two Way Vented Ceiling Speaker - Pair SKU#1334657

Let the Control 26CT Two Way Vented Ceiling Speaker with Built-in Transformer and 6.5" Woofer elevate your audio experience. This high-quality, stylish, and durable speaker pair from JBL is designed for upscale installations, delivering efficient and reliable performance.

Engineered for high power handling with minimal distortion, these ceiling-mounted speakers ensure balanced, superior sound throughout your listening area. The Control 26CT's 16 Ohm impedance allows for the connection of multiple speakers in parallel, eliminating the need for more costly constant voltage distribution systems.

The inclusion of a built-in multitap transformer makes these speakers compatible with both 70V and 100V systems. The computer-optimized enclosure enhances smooth bass response, while JBL's exclusive SonicGuard technology safeguards the speakers from overload, ensuring longevity and consistent performance.

The Control 26CT speakers provide an impressively broad 110-degree area of coverage, designed for longer, cooler operation, which contributes to greater long-term power handling. The vented design of these speakers not only improves sound quality but also extends coverage, making for a simpler and less expensive installation. Experience the difference with the Control 26CT Two Way Vented Ceiling Speaker with Built-in Transformer and 6.5" Woofer.

JBL Control 26CT Two Way Vented Ceiling Speaker - Pair SKU#1334657 Features

  • 140 Watts power capability
  • Multi-tap transformer for 70V/100V systems
  • 75Hz to 20kHz frequency range (-10dB)
  • 16 Ohm load
  • Coaxially mounted 6.5 in. (165mm) woofer with butyl rubber surround and 3/4 in. (19 mm) titanium coated diffraction-loaded tweeter
  • High power, wide frequency response and low distortion for high sound level capability
  • Wide coverage allows for fewer speakers, reducing the cost of the installed sound system without sacrificing performance
  • JBL's exclusive SonicGuard overload protection allows higher operational levels and improved system reliability (26C only)

What's in the box:

  • 2 Tile Support Rails (Fits Both 2 x 4 ft. or 600 x 1200 mm Tiles)
  • Cutout Template
  • Paint Shield
  • 2x C-Shaped Support Backing Plate
  • Removable Locking Writing Connector
  • Original Box
  • Item Note: Box is crushed
