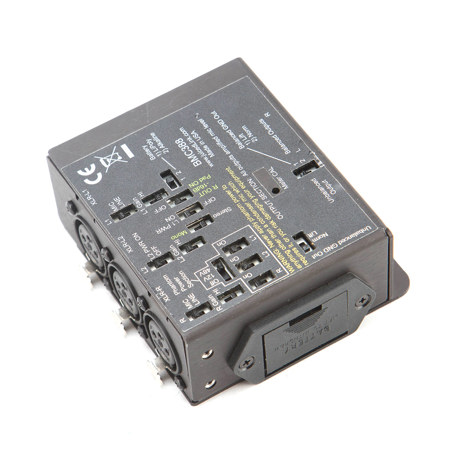

JuicedLink BMC388 Cinema Camera Low-Noise Preamp - SKU#1742265

Picture does not represent the actual item
See what's in the box

See all JuicedLink items

Used JuicedLink BMC388 Cinema Camera Low-Noise Preamp, 20 Hz to 20 kHz Frequency Response, 48V Phantom Power

SKU: US1742265

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

JuicedLink BMC388 Specifications

  • Compatibility

    Blackmagic Cinema Camera

  • Connectivity

    3 x XLR balanced preamp inputs
    2 x 1/8" (3.5 mm) balanced mini-jack outputs (locking)
    1 x 1/8" (3.5 mm) unbalanced stereo mini-jack output (locking)

  • Phantom Power

    48 V phantom power
    12 V power saving phantom mode

  • Gain

    30 dB (max available gain)

  • Frequency Response

    +0/-1.5 dB from 20 Hz to 20 kHz

  • Switches

    Mic/Line
    Hi/Lo Gain
    Mono/Stereo

  • Power Supply

    9 V alkaline battery or 9 V LiPoly battery (switchable)

  • Battery Life

    Approx. 7 hours (no phantom, all 3 XLR inputs active, alkaline battery)
    Approx. 13 hours (no phantom, 1 XLR input active, alkaline battery)

  • Enclosure

    Aluminum

  • Dimensions (W x H x D)

    3.4 x 1.5 x 3.7" (86.4 x 38.1 x 94.0mm)

  • Weight

    8 oz (226.8 g)

About JuicedLink BMC388 Cinema Camera Low-Noise Preamp - SKU#1742265

The JuicedLink BMC388 is a feature rich low-noise preamp, which can enable you to reduce the audio "hiss" from your camera. It has 3 XLR inputs and 48V/12V phantom power, meters, and locking balanced as well as unbalanced outputs. It is built tough, and refined to provide the best power efficiency, smallest size, and lightest weight. It incorporates sweet features such as Audio Bracketing (for camera overload protection), Selective Power-Down (to extend battery life)

JuicedLink BMC388 Cinema Camera Low-Noise Preamp - SKU#1742265 Features

  • Connectivity: Three balanced XLR low-noise preamp inputs
  • Connectivity: Two balanced 3.5mm mini-jack outputs (locking) with amplified mic level
  • Connectivity: One unbalanced 3.5mm stereo mini-jack output (locking) with amplified mic level
  • Durable aluminum enclosure
  • Power supply is switchable between 9V alkaline and 9V LiPoly battery use
  • Selective power down mode to turn off portions of the preamp not being used
  • Audio output bracketing duplicates the left channel on the right channel at lower signal level (approximately 16dB lower). So, if the camera overloads on the main signal on the left channel, you have a backup at a safe lower level on the right channel
  • Accomplished by setting the Mono/Stereo switch to Mono (mixing all mics together and sending to the right and left outputs), then attenuating the right output by turning on the R-pad switch
  • Audio output bracketing adds no noise or distortion, in contrast to the noise and distortion created by limiters. It also consumes no battery power

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • JuicedLink BMC388 Blackmagic Cinema Camera Low-Noise Preamp
  • Item Note: Missing 2x RP101 Stereo Minijack Cable 3.5mm Male to 3.5mm Male (9"); 2x Nylon 1/4-20 Socket Cap Screws; Nylon 4-40 Socket Cap Screw
