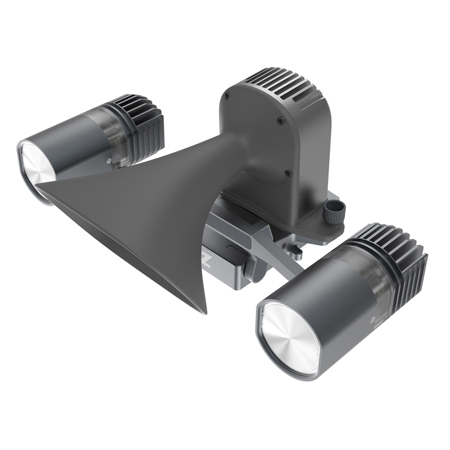

Used JZ M30 Quick Search Kit for DJI Matrice 30 Series

SKU: US1904249 MFR: JZ.QS.0002.02

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

JZ M30 Search Kit Specifications

  • Electrical interface

    DJI SDK

  • Supported models

    Matrice 30 (Matrice 350 RTK)

  • Degree protection

    IP44

  • Searchlight power

    60W

  • Speaker power

    10W

  • Sound pressure at 1 meter

    114db

  • Broadcasting distance

    984.25' (300m)

  • Methods of voice

    DJI Pilot 2

  • Lighting modes

    Combined lighting

  • Lighting angle

    14 Degree

  • Gimbal

    Single-axis stabilization gimbal

  • Installation method

    Quick-release screw

  • Working Temperature

    14 Degree F - 122 Degree F (-10 Degree C - 50 Degree C)

  • Storage Temperature

    -4 Degree F - 140 Degree F (-20 Degree C - 60 Degree C)

  • Photometrics

    Lighting distance: 164' (50m)
    Lighting area: 113 sq. m
    Center illumination: 36Lux

    Lighting distance: 328' (100m)
    Lighting area: 471 sq. m
    Center illumination: 8.7Lux

    Lighting distance: 492' (150m)
    Lighting area: 1063 sq. m
    Center illumination: 3.7Lux

  • Dimensions

    T60S Lamp + H1E Speaker: 4.80 x 6.41 x 2.67" (122 x 163 x 68mm)

  • Weight

    T60S Lamp: 4.51 oz (128g)
    H1E Speaker: 3.59 oz (102g)
    Total: 8.11 oz (230g)

About JZ M30 Quick Search Kit for DJI Matrice 30 Series

Become a master of emergency and security management with the M30 Quick Search Kit for DJI Matrice 30 Series. This high-quality, durable kit is an innovative solution for enhancing your DJI Matrice 30 Series drone's capabilities. Weighing a mere 230 grams, this portable kit packs a punch with a lighting power of 60W, providing an impressive illumination brightness of over 36lux at a distance of 50 meters.

The kit's 14-degree spotlight design is complemented by a single-axis stabilized gimbal that supports camera gimbal linkage. This versatile feature allows for control angles of +30 degrees to -90 degrees, ensuring optimal lighting and camera coordination. The kit also includes a color light group with the ability to switch between five vibrant colors, enhancing visibility and communication in various environments.

The M30 Quick Search Kit is equipped with advanced TTS (Text-to-Speech) technology for voice broadcasting, capable of achieving a maximum sound pressure level of 114DB at a distance of one meter. The effective broadcast distance exceeds 300 meters, supporting real-time voice broadcasting with DJI Pilot 2. This feature is ideal for search and rescue operations, security patrols, and traffic management, where clear, loud communication is crucial.

The kit also supports bilingual TTS loop playback, allowing for communication in multiple languages and local dialects. This makes it a versatile tool for international operations or diverse environments.

Designed for seamless integration, the M30 Quick Search Kit is compatible with the DJI Matrice 30 Series by default and can also be used with the DJI Matrice 350 RTK with an additional JZ M350 PSDK Bracket. The kit is fully compatible with DJI Pilot2, eliminating the need for third-party apps and ensuring flight safety.

Whether you're conducting nighttime patrols, directing traffic flow, or performing emergency repairs, the M30 Quick Search Kit for DJI Matrice 30 Series is a comprehensive solution that combines lighting and public address functions to enhance your drone's capabilities.

JZ M30 Quick Search Kit for DJI Matrice 30 Series Features

  • 114db: Sound pressure at 1 meter
  • 70W: The maximum power
  • 14 Degree : Spotlight illumination
  • 200m: Lighting distance

Warranty Information

This used item has a FREE 1-year warranty. See details.

Key Features

  • Enhance your DJI Matrice 30 with this Quick Search Kit for optimal performance.
  • The JZ M30 kit includes a powerful searchlight for superior visibility during missions.
  • Communicate clearly with the integrated speaker, broadcasting up to 984 feet away.
  • Enjoy single-axis gimbal stabilization for steady lighting and sound projection.
  • This durable kit is IP44 rated, ensuring reliable use in various weather conditions.
  • Quick-release screw design allows for easy and secure installation on your drone.
