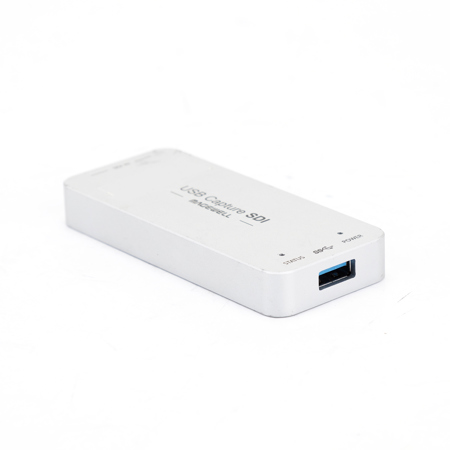

Magewell USB Capture SDI Gen 2
See all Magewell items
Used Condition: Average

Used Magewell USB Capture SDI Gen 2

SKU: US2028612 MFR: 32070
(3)
$133.00
Earn VIP Reward Points
See all 1 Used options from $133

What`s in the box:

  • Magewell One Channel HD USB Capture SDI Gen 2 Dongle
See more

Key Features

  • Can run continuously for weeks on end
  • Supports HD video input
  • Plug-and-play operation
  • No additional software/drivers required
  • Compatible with Mac, Windows, Linux, Chrome OS
  • Simple user interface
See More Product Details

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Free Shipping

See Options

1
Add to List

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2022-01-02T09:05:21

Rated 5 out of 5

Excellent

Plug and play! I love magewell. I don't think you need to buy a 4K one, because if you're using a teradek or even coming out of the camera, you can always drop res- which is going to be better for your stream anyways.

Brittany J.

2020-09-03T08:44:25

Rated 5 out of 5

Very good.

Very good product! We are using for the church.

Mark S.

2020-08-19T18:22:15

Rated 5 out of 5

Once again Adorama shows why they are the leader in the industry!

When another company was unable to fulfil the order for three Magewells needed to make our cameras adaptable to our computer, Adorama and only Adorama was able to immediately fill the order and shipped them overnight. Long a customer of Adorama once again they have shown why they are the leader in the industry. Thank you!

LEE L.

Magewell USB Capture SDI Gen 2 Specifications

  • Supported OS

    Windows 7/8/8.1/10/2008/2008 R2/2012 (x86 & x64)
    Linux (Ubuntu 12.04-16.10, CentOS 7)
    OS X 10.9-10.11
    macOS 10.12
    Chrome OS

  • Supported APIs

    Windows:
    DirectShow
    Wave API/DirectSound/WASAPI

    Linux:
    V4L2
    ALSA

    OS X/macOS:
    QuickTime
    AV Foundation

  • Supported Software

    VLC
    VirtualDub
    OBS
    XSplit
    vMix
    VidBlaster
    Wirecast
    Microsoft Media Encoder
    Adobe Flash Media Encoder
    Any other DirectShow, V4L2, QuickTime, AV Foundation based encoding or streaming software

  • Input Interfaces

    MCX: SD/HD/3G SDI

  • Host Interfaces

    USB 3.0:
    Compatible with USB 2.0
    Compatible with USB 3.1 Gen 1

  • Input Functions

    Support for up to 2048x1080 input resolution

  • SDI Functions

    Integrated cable equalizer supporting cable lengths up to 140M for 3G-SDI signals
    Support for SD/HD/3Ga/3Gb/3Ga-DL/3Gb-DS standards
    Support for 2K (2048x1080) mode
    Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
    Support for 10/12-bit color depth Support for extraction of SMPTE 352 payload identifier
    Support for up to 2 (mono) audio channels at 48KHz

  • SDI Functions (cont.)

    Support for extraction of audio formation information & channel status data
    Limited support of 3Gb-DS: only the first stream can be captured
    Limited support for capture of the first link of dual link interfaces: YCbCr 4:2:2 10-bit 1080p 50/59.94/60: captured as 1080i 50/59.94/60, YCbCr 4:4:4 10-bit: captured as 4:2:2, RGB 4:4:4: R/B sub-sampled

  • Video Capture format

    Support for capture resolutions up to 2048x1080
    Support for capture frame rates up to 120fps
    1920x1080 YUY2 (up to 70fps)
    1920x1080 RGB24 (up to 60fps)
    Support for YUY2 & UYVY 4:2:2 8-bit
    Support for RGB24 & RGB32 4:4:4 8-bit
    The default capture format is YUY2. More capture format can be set using USB Capture Utility

  • Video Processing Functions

    Video processing pipelines with 160 Mpixels/s processing bandwidth
    Video cropping
    Video scaling
    Video de-interlacing: Weave, Blend top & bottom field, Top field only, Bottom field only

    Video aspect ratio conversion:
    Auto or manual selection of input aspect ratio
    Auto or manual selection of capture aspect ratio
    Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox)

  • Video Processing Functions (cont.)

    Video color format conversion:
    Auto or manual selection of input color format & quantization range
    Auto or manual selection of capture color format, quantization range & saturation range
    Support for RGB, YCbCr 601, YCbCr 709 color formats
    Support for Limited or Full quantization range
    Support for Limited, Full & 'Extended gamut' saturation range

    Video frame rate conversion
    Vertical flip and mirror

  • Multiple devices on one computer

    Support for connecting multiple USB devices to one system
    Support for setting the device serial number as the device name shown in the system using USB Capture Utility

  • SDK

    The USB Capture SDK provide functions including signal status extraction, capture configuration, etc.

  • Firmware Upgrade

    Multiple devices in one system can be upgraded simultaneously

  • LED Indicator

    Status LEDs indicate the working state of each channel: idle, input signal locked, memory failed or FPGA configuration failed.

  • Power Consumption

    5V Max current: 0.5A
    Max power consumption: 2.5W

  • Operating temperature

    0 to 50 deg. C (32 to 122 deg. F)

  • Storage temperature

    -20 to 70 deg. C (-4 to 158 deg. F)

  • Relative Humidity

    5% to 90% non-condensing

  • Dimensions (LxWxH)

    92.2 x 40.2 x 12.3mm (3.63 x 1.58 x 0.48")

About Magewell USB Capture SDI Gen 2

FEATURED REVIEWS

Excellent

By Brittany J.

Plug and play! I love magewell. I don't think you need to buy a 4K one, because if you're using a teradek or even coming out of the camera, you can always drop res- which is going to be better for your stream anyways.

Very good.

By Mark S.

Very good product! We are using for the church.

This compact dongle allows you to easily import an SDI signal into your computer for streaming or recording, providing a straightforward method for linking cameras, switchers, and other broadcast equipment. It's compatible with Windows, Mac, Linux, and Chrome OS, and it doesn't require any additional software or drivers to start using it right away, making this an out-of-the-box solution to your video connectivity needs.

This unit supports both input and output resolutions up to 1080p. And you can connect any 3G/HD/SD-SDI source to the dongle using the included miniature coax connector; A USB 3.0 cable is included too for embedded audio. If you need to stream at a lower resolution than your camera feed is giving you, you can adjust parameters in the dialog window and downscale (or upscale), adjust brightness, deinterlace, and otherwise modify your input feed to match your processor's capabilities.


• Capture Full HD
• Compatible with Windows
• Compatible with Linux
• Compatible with Mac OS X
• Plug and Play
• Support UVC Protocol < br> • Up/down Scali ng
• Deinterlacing
• Image Control
• Various Output Color Spaces
• Firmware Upgrade
• Compatibility with Software
• Continuously Work for 2 4h x7
• Multiple Devices on One Host
• SD/HD/3G-SDI + embedded audio
