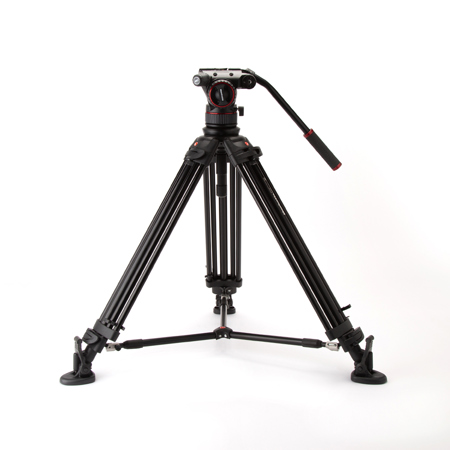

Used Manfrotto Nitrotech N12 Fluid Video Head & 545B Twin Leg Middle Spreader Tripod, 66.9" Max Height, 26.4 lbs Capacity

SKU: US1972845 MFR: MVKN12TWINMUS
Earn VIP Reward Points

What`s in the box:

  • Manfrotto Nitrotech N12 Fluid Video Head
  • 545B Twin Leg Middle Spreader Tripod
  • Pan Bar
  • Carrying Bag

Key Features

  • N8 video head can support loads up to 26.4 lbs
  • Tripod legs can support up to 55 lbs
  • N8 features nitrogen-piston drag system for precise adjustments and smooth action
  • Easy Link Connector allows accessory mounting directly to tripod head instead of camera
  • N12 flat base(75mm) can be used with half-ball adapter for other support setups
  • Legs have spiked feet + rubber shoe caps for use on various surfaces
See More Product Details

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Manfrotto Nitrotech N12 + 545B Specifications

  • Weight

    223.96 oz (6349.15g)

  • Material

    Aluminum

  • Safety Payload Weight

    26.46 lbs (12.00kg)

  • Min Height

    29.33" (74.50cm)

  • Maximum Height

    66.93" (170.00cm)

  • Legs Tube Diameter

    0.63 - 0.98" (1.60 - 2.49cm)

  • Quick Release

    Yes

  • Counterbalanced Weight

    26.46 lbs (12.00kg)

  • Center of gravity

    2.17" (5.51cm)

  • Spreader

    Mid level - fixed arm length

  • Closed Length

    35.04" (89.00cm)

  • Ball/Flat

    Flat

  • Accessory Compatibility

    114MV; 181B; 165MV

  • Top Attachment

    1/4" screw, 3/8" screw

  • Base Diameter

    2.95" (7.49cm)

  • Powered by (batteries)

    Lithium

  • Bubble Spirit Level (No.)

    1

  • Center Column

    No center column

  • Easy Link

    Yes (with antirotation)

  • Front Tilt

    -70 deg. / +90 deg.

  • Leg Type

    Twin

  • Leg Angles

    From 30 deg. to 66 deg.

  • Leg Lock Type

    Flip Lock

  • Working Temperature

    5 to 122 deg. F (-15 to 50 deg. C)

  • Pan Drag

    Continuously adjustable from 0 to max level

  • Tilt Drag

    Continuously adjustable from 0 to max level

  • Panoramic Rotation

    360 deg.

  • Plate Type

    504PLONG

About Manfrotto Nitrotech N12 Fluid Video Head & 545B Twin Leg Middle Spreader Tripod, 66.9" Max Height, 26.4 lbs Capacity

The Nitrotech N12 + 545B Dual-Leg tripod system from Manfrotto brings together two workhorse pieces of gear to address your video and photo needs. The N12 video head boasts a continuously-variable counterbalance range (ranging from 8.8 to 26.4 pounds) and all controls are to the left for greater ease of operation. The twin-style aluminum tripod legs feature a mid-level spreader for improved stability, and can handle a payload up to 55 pounds. Thanks to optimized upper and lower collars, you'll get all the rigidity you need for your cinema camera, camcorder, or DSLR.

This Nitrotech N12 video head is an innovation you need. Featuring a nitrogen-piston mechanism instead of stepped counterbalance levels, this head's counterbalance can be adjusted to by feel to perfectly suit the drag needs of your setup. The 75mm flat-base head is versatile as well as functional, ready to work with a half-ball adapter if you opt to use other tripods, sliders, cranes, or other setups. The camera mounting plate locks in from the side and you can adjust the exact locking point for easier balancing. There's also an illuminated bubble level at the rear of the head, which lets you see at a glance whether your camera is perfectly level or not before locking things into place. Additionally, thanks to the 3/8" Easy Link Connector built into the side of the head, you can mount your monitor, light, or other accessories directly onto the head to avoid loading up the camera or the main camera mount.

The 545B Pro tripod's two-stage twin-leg design is optimized for maximal rigidity, able to support loads over 50 pounds. It's equipped with a mid-level spreader, giving you great stability, as well as rubber shoes for excellent grip on smooth surfaces. Additionally, the tripod has a 100mm bowl interface that's adaptable to 75mm.

Manfrotto Nitrotech N12 Fluid Video Head & 545B Twin Leg Middle Spreader Tripod, 66.9" Max Height, 26.4 lbs Capacity Features

  • Nitrotech N12 video head features continuous counterbalance system with nitrogen-piston mechanism instead of stepped levels of counterbalance, allowing for precise adjusting by feel/according to drag needs.
  • Counterbalance control knob can be extended to make room for wider camera setups
  • Sliding camera mounting plate with side-lock mechanism allows for easier load balancing
  • Push-button illuminated bubble level at rear of head
  • 75mm flat-base head can be used with half-ball adapter for mounting to other tripods, sliders, cranes, and other support systems
  • Easy Link Connector is built into side of head for mounting additional accessories directly onto tripod head instead of attaching to camera
  • Dual-leg two-stage tripod is optimized for excellent rigidity and load capacity of 55 pounds
  • Mid-level spreader provides further stability and support
  • Tripod's 100mm bowl interface can be adapted to 75mm for use with additional tripod heads

Warranty Information

This used item has a FREE 180-day warranty. See details.

Key Features

  • N8 video head can support loads up to 26.4 lbs
  • Tripod legs can support up to 55 lbs
  • N8 features nitrogen-piston drag system for precise adjustments and smooth action
  • Easy Link Connector allows accessory mounting directly to tripod head instead of camera
  • N12 flat base(75mm) can be used with half-ball adapter for other support setups
  • Legs have spiked feet + rubber shoe caps for use on various surfaces
