Used NewTek NDI|HX-PTZ2 2.07MP 1080p 20x PTZ Camera

SKU: US1529843 MFR: FG-002963-R001
Earn VIP Reward Points

Key Features

  • Multicast Mode
  • Power over Ethernet
  • Pan-Tilt-Zoom
  • Program and Preview Tally
  • Remote Control & Monitoring
  • Remote Recording
See More Product Details

INCLUDES FREE WARRANTY

  • This used item comes with a free 1-year warranty. ?
Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

NewTek NDI|HX-PTZ2 Specifications

Image Sensor

Image Sensor

Jump to...
  • Image Sensor

    1-Chip 1/2.8" CMOS Sensor

  • Sensor Resolution

    Effective: 2.07 Megapixel

  • Signal-to-Noise Ratio

    50 dB

  • Minimum Illumination

    1 Lux

  • Shutter Speed

    1/1 to 1/10,000 sec

  • Optical Zoom Ratio

    20x

  • Focal Length

    110 to 5.3mm

  • Field of View

    Horizontal: 56 Degree

  • Maximum Aperture

    f/1.6 to 3.8

  • Minimum Focusing Distance

    Wide: 4.9' (1.5m)
    Telephoto: 59.1" (1.5m)

  • Focus Control

    Autofocus
    Manual Focus

Video Output

Jump to...
  • Output Formats

    SDI, HDMI, RJ45: 1920 x 1080p at 25, 29.97, 30, 50, 59.94, 60 fps
    1920 x 1080i at 50, 59.94, 60 fps
    1280 x 720p at 50, 59.94, 60 fps

Control

Jump to...
  • Move Speed

    Tilt: 100 Degree /sec
    Pan: 100 Degree /sec

  • Movement Range

    Pan: 340 Degree (-170 to 170 Degree )
    Tilt: 120 Degree (-30 to 90 Degree )

  • Tally Light

    Yes

  • Supported Control Protocols

    RS-232
    RS-422

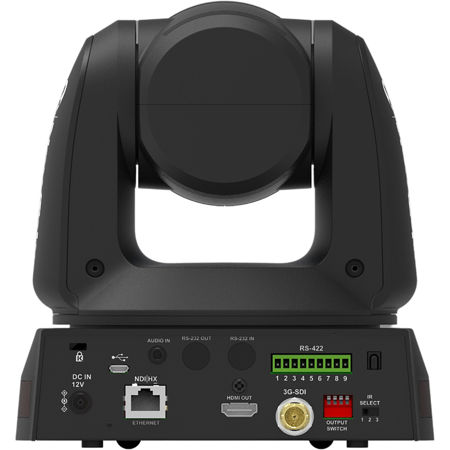

Interfaces

Jump to...
  • Video Output Connectors

    1x BNC (3G-SDI / HD-SDI) Female
    1x HDMI Type A Female
    1x RJ45 (HX / NDI) Female

  • Audio I/O

    1x 1/8" (3.5mm) Stereo Mic/Line Level Input

  • Control Interface

    1x 8-Pin Mini-DIN (RS-232) Input
    1x 8-Pin Mini-DIN (RS-232) Output
    1x 9-Pin Terminal Block (RS-422) Input
    1x RJ45 (LAN) Output

  • Other I/O

    1x USB Micro-B Input

  • PoE Support

    PoE+ 802.3at

  • Power Consumption

    Power Supply: 12 VDC at 1 A

Physical

Jump to...
  • Dimensions

    7.33 x 7.3 x 6.9" (18.61 x 18.55 x 17.4cm)

  • Weight

    4 lbs (1.8kg)

About NewTek NDI|HX-PTZ2 2.07MP 1080p 20x PTZ Camera

Video, Audio, Control, Tally and Power-One Ethernet Cable

NDI Output
Acquire and deliver video to the network in full HD, with NDI output via the latest version of NDI|HX and native support for resolutions up to 1080p at 60 frames per second.

Video Output
Using the latest high efficiency version of NDI to deliver high-quality video across selective bandwidth networks with low-latency and greater flexibility. Optionally acquire and deliver video into conventional workflows with support for 3G-SDI and HDMI hardware output.

Power over Ethernet
Streamline installation and reduce cabling complexity, optionally eliminating the need for a separate power supply connection with support for Power over Ethernet via POE+ (802.3at).

Network Identification
Easily identify your NDIHX-PTZ2 Camera on the network with the ability to apply custom device and channel names. NDI offers auto-discovery; all connected NDI devices are able to find each other automatically without the need to enter IP addresses and port information.

Connect, capture, and control with a single network cable. No need for extra connections, cables, and messy setups.

Simple. Amazing. And Simply Amazing.

Corporate
Turn any office or meeting room into a remote studio for executive communications, video conferencing, or online training.

Education
Streamline virtual classroom production, lecture capture, and distance learning for live and on-demand teaching.

Entertainment
Expand event coverage in-venue and behind the scenes for live streaming, recording, and social video.

Gaming
Capture the action, emotion, and intensity of competitive gaming and esports from every angle.

Government
Inform and involve citizens with real-time access to live meetings and community programming.

Professional A/V
Explore virtually endless video applications, from medical and security installations to weddings and graduations.

Sports
Enhance the fan experience with unique camera angles or outfit facilities for covering practices and club activities

Features

Imagine the possibilities of cameras that can serve as a live video input for any NDI-compatible hardware or software-from anywhere on your network. NewTek NDIHX PTZ Cameras, the faster, easier, and better way to acquire live video.

Multicast Mode
Optionally allow multiple destinations to receive video from your NDI | HX PTZ Camera without individual point-to-point connections to conserve network bandwidth

Power over Ethernet
Streamline installation and reduce cabling complexity, optionally eliminating the need for a separate power supply connection with support for Power over Ethernet via POE+.

Pan-Tilt-Zoom
Perform real-time pan, tilt, and zoom camera movements with motor-driven PTZ camera control and configurable preset positions.

Program and Preview Tally
Receive tally notification from compatible NDI devices via physical LEDs when video output from your NDI | HX PTZ Camera is visible on Program and/or Preview.

Remote Control & Monitoring
Operate camera controls, monitor video, manage login credentials, and configure audio, video, and network settings from any compatible networked device using the Web-based user interface or NewTek NDI Studio Monitor.

Remote Recording
Capture live NDI | HX PTZ Camera video remotely from any compatible computer or device using NewTek NDI Studio Monitor.

Video Settings
Manage NDI | HX PTZ Camera options to include exposure, focus, iris, shutter speed, white balance, wide dynamic range, and more with configurable video settings.

Audio
Present high-quality audio, with support for mic and line level audio input, and adjustable volume control.

NDI Virtual Input
Designate your NDI | HX PTZ Camera as the video input source in popular desktop video applications like Google Hangouts, GoToMeeting, Skype, Skype for Business, WebEx, Zoom, and more, via the included software driver.

Network Identification
Easily identify your NDIHX Camera on the network with the ability to apply custom device and channel names. NDI offers auto-discovery; all connected NDI devices are able to find each other automatically without the need to enter IP addresses and port information.

Free Firmware Updates
Download and install free firmware updates to ensure your NDI | HX PTZ Camera is equipped with the latest features, capabilities, and performance enhancements.

NewTek NDI|HX-PTZ2 2.07MP 1080p 20x PTZ Camera Features

  • Multicast Mode
  • Power over Ethernet
  • Pan-Tilt-Zoom
  • Program and Preview Tally
  • Remote Control & Monitoring
  • Remote Recording
  • Video Settings
  • NDI Virtual Input
  • Network Identification
  • Free Firmware Updates

Warranty Information

This used item has a FREE 1-year warranty. See details.

Key Features

  • Multicast Mode
  • Power over Ethernet
  • Pan-Tilt-Zoom
  • Program and Preview Tally
  • Remote Control & Monitoring
  • Remote Recording
