Osprey Video 825e Specifications

  • Format

    PCI Express (x4)
    Slots: x 4, x 8 or x 16
    PCIe 1.1

  • Video Input

    3G SMPTE 424M x2
    HD SMPTE 292M x2
    SD SMPTE 259M x2
    DVB-ASI x2

  • Video Connector

    SDI (BNC x2)

  • Video Modes

    1080i 50, 59.94, 60
    1080p 23.98, 24, 25, 29.97, 30
    720p 23.98, 24, 25, 29.97, 50, 59.94, 60
    720 x 480 29.97, 30/i (NTSC)
    720 x 576 25/i (PAL)
    720 x 576 25, 50/p

  • 3G SDI

    1080p 50, 59.94, 60

  • Audio Output

    Optional: 2x stereo balanced XLR
    Optional: 2x stereo balanced XLR or AES/EBU or SPDIF

  • Available Drivers

    Microsoft Windows
    Linux

  • Power Consumption

    6.3W

  • Operating Temp Range

    0 to 40 deg. C / 32 to 104 deg. F

  • Non-Operating Temp Range

    -40 to 75 deg. C / -40 to 167 deg. F

  • Rel Humidity Operating

    Between 5 % and 80 % (noncondensing)

  • Rel Humidity Non-Operating

    95 % RH (non-condensing); gradient 30% per hour

  • Operating Altitude Range

    0 to 3048.04m (10000')

  • Non-Operating Altitude Range

    0 to 15240.19m (50000')

  • System recommendations

    High-quality video capture requires a PCIe bus with direct access to the CPU

  • Dimensions (L x H)

    6.60 x 2.71" / 16.76 x 6.88cm (Low profile)

  • Weight

    70g / 2.47oz

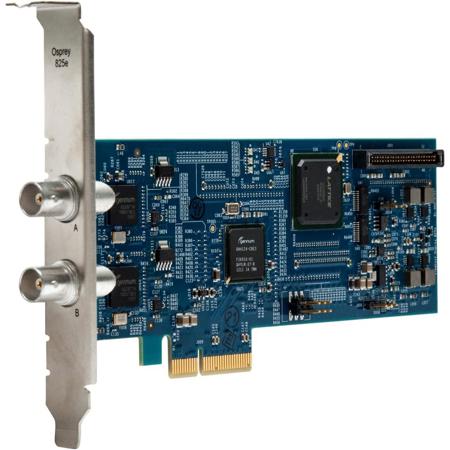

About Osprey Video 825e 2-Channel 3G HD-SDI Video Capture Card - SKU#1458525

Two Input SDI or DVB-ASI
Ideal for high-density applications, the Osprey 825e card features two independent, highly configurable input channels.

Four Input Formats
• 3G SDI (424M) (limited to 2 channels)
• HD SDI (292M)
• SD SDI (259M)
• DVB-ASI MPTS/SPTS (Windows only)

Fully Independent Inputs
All inputs are clock independent, which allows for different input formats on each input

Embedded SDI audio
Four stereo pairs per input are available on each input.

Osprey SimulStream
A standard feature on all Osprey 800 series cards, SimulStream allows each input to produce multiple parallel output streams with completely independent settings for color space, cropping, scaling, closed caption and overlays facilitating simultaneous delivery to multiple applications.

Additional Features
Signal Loss: In the event of signal loss, the Osprey card automatically replaces the lost video with color bars with options for text overlay and audio tones. This feature helps prevent unplanned stoppage of downstream applications upon signal loss.

Video Pre-Processing
• VBI/VANC closed-caption extraction/on-screen rendering
• Logo/bitmap overlay
• Scaling, cropping, de-interlacing and inverse telecine
• ProcAmp control
• Vector Scope and Lumi Scope

Driver Support
• Microsoft DirectShow API
• Linux

Osprey SDK
An Osprey SDK is also available to allow developers to take full advantage of the Osprey 800e driver capabilities.

Osprey 800a Audio Input Expansion board
The Osprey 800a audio input card is a separate expansion board that adds two pairs of balanced audio via XLR connectors along with two additional pairs that can be configured as either unbalanced (RCA), AES/EBU (XLR) or SPDIF (RCA).

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Osprey Video 825e 2-Channel 3G HD-SDI Video Capture Card
  • Low-Profile Bracket
  • Original Box
  • Item Note: Unit was not fully tested
