AVC-Intra 100, AVC-Intra 50, DVCPRO HD, DVCPRO 50, DVCPRO/DV
59.94Hz: 1080/59.94i, 1080/29.97p, 1080/29.97pN, 1080/23.98p, 1080/23.98pA, 1080/23.98pN, 720/59.94p, 720/29.97p, 720/29.97pN, 720/23.98p, 720/23.98pN, 480/59.94i, 480/29.97p, 480/23.98p, 480/23.98pA
50Hz: 1080/50i, 1080/25p, 1080/25pN, 720/50p, 720/25p, 720/25pN, 576/50i, 576/25p
1/3" 2.2MP Progressive MOS Image Sensor x3
Fujinon 1/3" Bayonet Mount (17x Optical)
>1000 TV Lines (Center)
F11 (2000 lx, 3200K, 89.9% reflect, 1080/50i)
F10 (2000 lx, 3200K, 89.9% reflect, 1080/59.94i)
0.4 lux (F/1.6, Gain 24dB, Shutter 1/30)
ND: Clear, 1/4, 1/16, 1/64
3.2" Widescreen Color LCD (921,000 Pixels)
0.45" Widescreen Color (1.23 MegaPixels)
Yes, Different Ranges for Different Record Modes
(2) P2 Card Slots for Video
(1) SD Memory Card Slot for Scene-File Sharing
1/6 to 1/2000 sec (Range depends on Record Mode)
-3dB to +24dB Range
AVC-Intra 100/DVCPRO HD
Approx. 16 min. with a 16GB P2 card
Approx. 32 min. with a 32GB P2 card
Approx. 64 min. with a 64GB P2 card
AVC-Intra 50/DVCPRO50
Approx. 32 min. with a 16GB P2 card
Approx. 64 min. with a 32GB P2 card
Approx. 128 min. with a 64GB P2 card
DVCPRO/DV
Approx. 64 min. with a 16GB P2 card
Approx. 128 min. with a 32GB P2 card
Approx. 256 min. with a 64GB P2 card
16 bit/48kHz 4-Channels
20Hz to 20kHz
Composite: BNC (x1 Output)
HD/SD-SDI: BNC (x2 Output)
Mic/Audio: XLR, 3-Pin Female (x2 Input, Ch1/Ch2)
Audio Out: Pin Jack (x2 Output, Ch1/Ch2)
Earphone: 3.5mm Stereo Mini Jack (x1 Output)
Genlock: BNC (x1 Input)
Timecode: BNC (x1 Input, x1 Output)
FireWire: 6-Pin (x1 Input/Output)
DC Power: XLR 4-Pin (x1 Input, x1 Output)
Remote: 10-Pin
Lens: 12-Pin
USB 2.0: Type-A/B 4-Pin (Host/Device)
12VDC (11-17V)
19W
32-104 Deg. F (0-40 Deg. C)
6.7 x 6.9 x 21.6" (24.6 x 25.1 x 54.9cm)
11 lbs (5kg)
NAB 2013 Show Coverage. As the NAB 2013 show opens, the ARC (Adorama Rental Company) is there in full force, displaying a wide array of recently-announced pro video and digital cinema cameras, including..

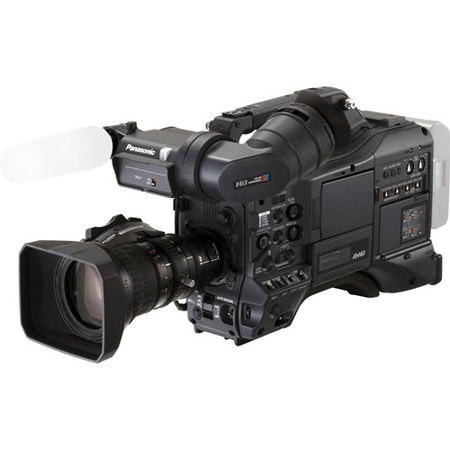

The Panasonic AG-HPX370 Series P2 HD Camcorder is an affordable 1/3" ENG camcorder that offers full-raster 4:2:2 sampling using the professional AVC-Intra HD codec. Equally at home recording 100Mbps DVCPRO HD, the AG-HPX370 brings new levels of lowlight performance to its three 1/3" CMOS sensors, utilizing Ultra Luminance Technology to provide the sensitivity and image quality of larger 1/2" imagers.
With two HD/SD-SDI outputs, two P2 media slots, a 17x Fujinon HD lens and one SD memory card slot (for scene files and user settings), the AG-HPX370 is a top-level image capture device that also offers a high degree of versatility. It can accommodate both 1/3" and 2/3" lenses, it shoots in standard definition as well as HD and with an optional remote control unit it can be used as a studio camera (aided by the included timecode and genlock functionality).
The variety of resolutions (1080i/p, 720p, 480i/p), frame rates (12-60p), image settings and recording modes--not to mention the well-known advantages of a P2 workflow--all provide the flexibility, functionality and sheer image quality that have made Panasonic's professional camcorders the workhorses of so many production environments.
