Used Paralinx Tomahawk HDMI 1:2 DELUXE Package, Includes Transmitter, 2x Receivers, 3x 18" PTap to Lemo Cables, Array MIMO Panel Antenna, Pelican 1550 Case

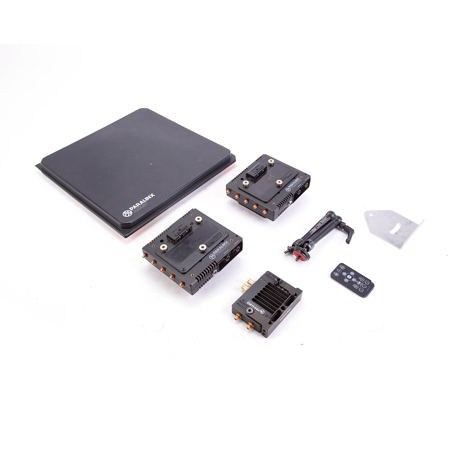

All your Tomahawk gear in one convenient package. This package includes 1 Tomahawk transmitter (choose SDI or HDMI input), 2 Tomahawk receivers (each with dual-SDI outputs), 1 Array panel antenna (choose Gold-Mount or V-Mount), 2 Perch mounting brackets for the receivers, 2 female battery plates for powering the receivers (choose Gold-Mount or V-Mount), 2 male battery plates for pass-through power and attaching the Array (choose Gold-Mount or V-Mount), 1 Sidearm mounting bracket for the transmitter, 3 PTap to Lemo power cables, 1 Lemo to Lemo power cable and a Custom Pelican 1550 Case that holds up to 2 transmitters, 3 receivers, 2 Array panel antennas and accessories.

Paralinx Tomahawk HDMI Transmitter
The Paralinx Tomahawk HDMI Transmitter is a revolutionary HD Video Transmission system offering Real-Time Wireless HD with unprecedented range for your Television, Film, Broadcast, Industrial or UAV/UAS application. The Paralinx Tomahawk HDMI Transmitter, when paired with a Paralinx Tomahawk Receiver, has a range of up to 2000 feet (600m) with default antennas (longer range possible with optional antennas) and still maintains an incredible sub-1ms latency glass-to-glass. The Transmitter features 2-Pin Lemo power connectors capable of a wide 7-17V unregulated input voltage. The Tomahawk HDMI Transmitter features either an HDMI or SDI input (SDI model also has loop-out).

Please note this transmitter will ONLY work with Paralinx Tomahawk receivers (not Arrow-X, Arrow or Arrow Plus). Much like the popular Paralinx Arrow and Arrow Plus, the Tomahawk transmits Full-HD video (up to 1080p/60 4:2:2) with less than 1 millisecond delay and is capable of handling up to 4 simultaneous receivers. The transmitter weighs approximately 6.0oz/170g (without antennas).

• Lightweight Minimalist design for Handheld, Steadicam, Gimbal and UAV Payload.
• Transmitter features HDMI input
• Rugged machined-aluminum enclosure.
• Ultra long-range transmission - Up to 2,000 feet (600 meters).
• REAL-TIME viewing - Less than 1 millisecond latency.
• Uncompressed full-HD video signal allow critically accurate monitoring.
• Multicast capable.
• 128 bit AES Encryption - Secure transmission.
• Operates on 5gHz frequency band.
• Conforms to major technical and environmental standards including FCC, CE, MIC (TELEC) and RoHS Specifications.

Paralinx Tomahawk Receivers
The Paralinx Tomahawk Receiver is a revolutionary HD Video Transmitter system offering Real TimeWireless HD with unprecedented range for your Television, Film, Broadcast, Industrial or UAV/UAS application. The Paralinx Tomahawk Receiver, when paired with a Paralinx Tomahawk Transmitter, has a range of up to 2000 feet (600m) with default antennas (longer range possible with optional antennas) and still maintains an incredible sub 1ms latency glass-to-glass. The Receiver feature 2-Pin Lemo power connectors capable of a wide 7-17V unregulated input voltage. The Tomahawk Receiver features dual 3G-HDSDI outputs.

Much like the popular Paralinx Arrow and Arrow Plus, the Tomahawk transmits Full HD video (up to 1080p/60 4:2:2) with less than 1 millisecond delay and is capable of handling up to 4 simultaneous receivers. The receiver weighs 12 oz/340g (without antennas).

• Lightweight Minimalist design for Handheld, Steadicam, Gimbal and UAV Payload
• Receiver features dual 3G-HDSDI outputs.
• Rugged ABS enclosure for receiver
• Ultra long-range transmission - Up to 2,000 feet (600 meters)
• REAL-TIME viewing - Less than 1 millisecond latency
• Uncompressed full-HD video signal allow critically accurate monitoring
• Multicast capable
• 128 bit AES Encryption - Secure transmission
• Operates on 5gHz frequency band
• Conforms to major technical and environmental standards including FCC, CE, MIC (TELEC) and RoHS Specifications

18" PTap to 2-pin Lemo-type Power Cable
This 18" (45cm) power cable can be used to power your Tomahawk or Arrow-X transmitter from any power source with a PTap/DTap output.

2-pin Lemo-type to 2-pin Lemo-type Power Cable
This power cable can be used to power your Tomahawk transmitter or receiver from any 2-pin Lemo power source. Choose from 18"/45cm or 24"/60cm lengths.

18" Right-Angle to Right-Angle BNC Cable
Custom made short-length BNC cables with right-angle connections. Helps reduce cable clutter around your camera/monitor when you only need a short run. Made with Belden 1855A.

Paralinx Sidearm Transmitter Mounting Bracket
Custom-built mounting bracket designed for the Paralinx Tomahawk or Paralinx Arrow-X transmitter. Features 1/4"-20 and 3/8" screw holes. Compatible with 9mm on-center spacing (Red).

Paralinx Perch Receiver Mounting Brackets
The Paralinx Perch mounting bracket is a must-have for your Paralinx Tomahawk or Arrow-Xreceiver. The kit includes a baby receiver so you can mount the Perch on a stand and raise your receiver up into the air for better line-of-sight transmission. Designed to be used with a battery plate (Gold-Mount, V-Mount or Marshall hole-pattern) and/or Paralinx Array panel antenna.

Paralinx Array MIMO Panel Antenna For Receiver
The Paralinx Array is a custom 5-input MIMO panel antenna designed for use with your Tomahawk Receiver to boost range and increase signal robustness (19dbi max boost). The Array works within the 5GHz spectrum (5.1-5.8GHz) and is small and lightweight with the ability to clip onto your Tomahawk receiver using the included Gold-Mount or V-Mount battery plate (female) and aGold Mount or V-Mount male battery plate. For mounting a Paralinx Array and Tomahawk or Arrow-X Receiver to a stand you might want to consider the PERCH.

Mount Battery Plate (male)
Anton/Bauer Gold-Mount battery plate wired for pass-through power with the Paralinx Tomahawk or Paralinx Arrow-X receiver. Can also be used for easy mounting of your Paralinx Array panel antenna (Gold-Mount) (which includes the female plate).

Mount Battery Plate (female)
Anton/Bauer gold-mount battery plate (female) wired internally to provide power to the Paralinx Tomahawk or Paralinx Arrow-X receiver.

2 dBi Antennas
These 2 dBi linear antennas can be used as replacements for the Arrow-X transmitter or the Arrow-X or Tomahawk receiver. The antennas operates on the 5.1 - 5.8 GHz frequency band and utilizes a RP-SMA connector.

5 dBi Antenna
These 5 dBi linear antennas can be used as replacements for the Tomahawk or Arrow-X transmitter. The antennas operates on the 5.1 - 5.8 GHz frequency band and utilizes an RP-SMA connector.
