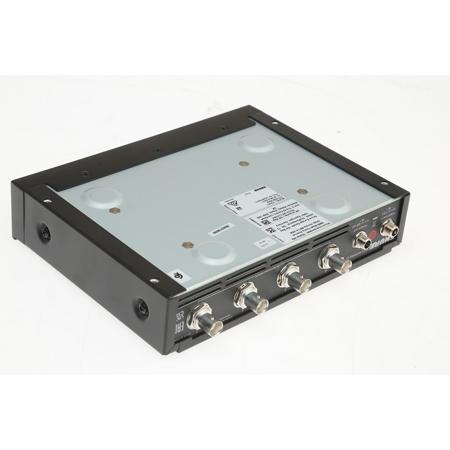

Used Shure PA411 Antenna Combiner for PSM 300 Stereo Personal Monitor System

SKU: US1620259

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2021-08-10T06:15:29

Rated 5 out of 5

Great addition and cable management bonus

The Shure PA411 is a perfect match for an IEM rig with 4 Shure PSM300 units. The bonus feature is the power. We can save 4 power outlets (and the cabling mess) with this unit.

WILLIAM P.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Shure PA411 Specifications

  • RF Input: Connector Type

    BNC

  • RF Input: Frequency Range

    470 to 865 MHz

  • RF Input: Maximum Input Level

    20 dBm per channel

  • RF Input: Port

    Isolation: 50 dB, typical

  • RF Input: Power Operating Range

    Per Channel: 4.5 to 15 dBm

  • RF Input: LED Indicator

    Minimum Detection Threshold: 3 dBm +/- 1 dB

  • RF Input: Overload LED Threshold

    17.5 dBm +/- 1 dB

  • RF Input: Impedance

    50Ohms

  • RF Output: Frequency Range

    470 to 865 MHz

  • RF Output: Intercept Point

    OIP3: 48 dBm, typical

  • RF Output: Connector Type

    BNC

  • RF Output: Impedance

    50 ohms

  • RF Output: Reverse Isolation

    Output to Input: 40 dB, typical

  • RF Output: Gain

    Input to any Output Port: -5 to 0 dB

  • Power Requirements

    15 VDC

  • DC Output

    12 VDC (4)

  • Output Current

    Combined Total from All DC Outputs: 1.4 A, maximum

  • Operating Temperature Range

    0.40 to 145½F (-18 to 63½C)

  • Dimensions (H x W x D)

    1.7 x 7.0 x 7.8" / 4.32 x 17.78 x 19.81cm

  • Weight

    3.6lbs / 1.63kg

About Shure PA411 Antenna Combiner for PSM 300 Stereo Personal Monitor System

Because seamless audio performance is crucial for any live event, the Shure PA411 Antenna Combiner emerges as an essential component for audio professionals. This expertly designed unit streamlines the setup of your PSM 300 Stereo Personal Monitor Systems by efficiently distributing DC power and RF signal to up to four transmitters simultaneously. The PA411's compact half-rack design is engineered to minimize the footprint in your audio rack, allowing for a cleaner, more organized space.

The PA411 Antenna Combiner not only consolidates the RF signals, ensuring stable and clear transmission to each personal monitor, but it also simplifies the power configuration by eliminating the need for multiple power outlets. This feature is particularly beneficial in live performance environments where outlet availability is limited and cable management is a concern.

By integrating the Shure PA411 into your IEM (In-Ear Monitor) setup, you can expect a reduction in rack clutter and an improvement in the overall efficiency of your audio system. The unit's robust construction and reliable performance make it a smart choice for touring bands, houses of worship, and live event venues seeking to enhance their audio monitoring solutions.

Incorporating user feedback, such as the ability to save on power outlets and reduce cabling mess, the PA411 Antenna Combiner demonstrates its value as a practical solution for managing multiple PSM 300 systems. Its compatibility with the Shure PSM300 units ensures a harmonious integration and a performance that lives up to the professional standards expected from Shure products.

Optimize your personal monitoring system with the Shure PA411 Antenna Combiner, a device that embodies efficiency, reliability, and high-quality signal distribution for an exceptional audio experience.

What's in the box:

  • PA411 Antenna Combiner
  • Antenna
  • Power Supply
  • AC Cable
  • Multi AC Power Adapter
  • Rack Ear
