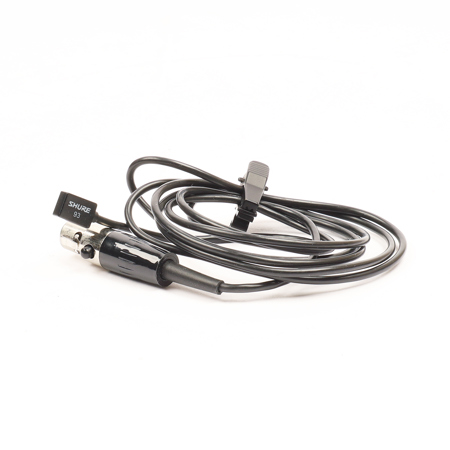

TA4F, for Use with the Shure Wireless Transmitters
50 to 20,000 Hz
Omnidirectional, uniform with frequency
3000 ohms
Open Circuit Voltage: -38 dBV/Pa (13 mV)
0.25 V at 120 dB
Less than 1% at 120 dB
120 dB
102 dB
18 dB typical, A-weighted
76 dB at 94 dB SPL (IEC 651)
Positive pressure on microphone diaphragm produces positive voltage on pins 3 and 4 with respect to pin 1
2 to 10 V; 5 V nominal (pin 2 to pins 3 and 4)
40 microA typical
-18 to 57 degrees C (0 to 135 degrees F)
-29 to 74 degrees C (-20 to 165 degrees F)
1.27 m (4.17 ft)
Black ABS thermoplastic case with stainless-steel-mesh grille
0.23 x 0.37" (5.84 x 9.40mm)
16 g (0.57 oz)
