Sonnet QIO-E3-TB Specifications

  • External Connectors (Qio E3 Enclosure)

    Three ExpressCard/34 (SxS)
    Two eSATA 6GB/s
    External PCIe 2.0 x1 18-pin
    Two 12V power

  • Host Connectors (PCIe & Card Adapter)

    External PCIe x1 - 18

  • Host Connectors (Thunderbolt Adapter)

    Thunderbolt

  • Bus Interface

    PCI Express 2.0 x1

  • Supported Media

    Sony SxS, SxS-1, SxS Pro, SxS Pro+

  • Supported ExpressCard/34 Cards

    All Sonnet ExpressCard/34 cards and most third-party ExpressCard/34 cards and devices

  • Thunderbolt Expansion

    Expands Sonnet Echo ExpressCard/34 Thunderbolt Adapter to three ExpressCard/34 slots

  • Drives Supported

    Two (each of which can be hardware RAIDs of multiple drives)

  • Drives Type Supported

    Serial ATA

  • Firmware

    Flash-ROM upgradeable to latest firmware version

  • Hot Plug Qio E3

    Supported in MacBook Pro

  • Power

    12V @ 1.25A input
    12V @ 0.5A output to support Sonnet Fusion F2QR

  • Absolute Maximum Input Voltage

    20V

  • RoHS Compliant

    Yes

  • Mac Compatibility

    OS X Version 10.6.8-10.9.1
    Mac with a Thunderbolt port

  • Windows Compatibility

    Windows 8, Windows 7, Windows Vista, Windows Server 2008 R2, Windows Server 2008

  • Dimensions (W x D x H)

    5.9 x 6.2 x 1" / 15 x 15.75 x 2.54cm

About Sonnet Qio E3 High-Speed SxS Card Reader Only - SKU#1513524

The Sonnet Qio E3 High-Speed SXS Card Reader is designed specifically for use with SXS media cards. Providing a cost-effective, high-speed multi-slot alternative to stand-alone card readers for videographers and studios alike, Qio E3's three SXS slots enable you to ingest files faster and more efficiently, with aggregate ingest speed up to 300 MB/sec., much faster than standard USB adapters are capable.

Choice of Interface
Qio E3 is available with your choice of a PCIe interface card for desktops, an ExpressCard/34 interface for notebooks, or a Thunderbolt interface adapter (with included Thunderbolt cable) for any Mac with a Thunderbolt port. With the purchase of an additional Qio E3 PCIe adapter card, ExpressCard/34 card, or Thunderbolt adapter, you can move your Qio E3 from suite to suite and then to location and back again without breaking a sweat. No matter where you use it, Qio E3 will quickly become an essential tool in your workflow.

Flexible Power Options

AC Power
For desktop use, a universal 12V output AC power supply (with wall plugs for US, Japan, Europe, UK and Australia) is included.

Battery Power
For battery-powered operation during field work, Sonnet's optional XLR 4-pin adapter cable interfaces Qio E3 with an external battery pack, such as Tekkeon myPower ALL batteries at an 8-19V setting.

FireWire Bus Power
Alternatively, you can power the Qio E3 by connecting it to a computer with a FireWire port with Sonnet's optional FireWire 400-to-3.5mm power cable.

6Gb/s SATA PCIe 2.0 Host Controller Inside
Qio E3 includes two 6 Gb/s eSATA ports, perfect for connecting media readers with an eSATA interface, such as the RED STATION REDMAG 1.8" and 2.5".

Mac and Windows Compatible
Sonnet's Qio E3 offers Mac and PC cross-platform compatibility, extending its usefulness on location and in the studio. Whether you're using a MacBook Pro, PC-based HP Z800 or Mac Pro, or any Mac with a Thunderbolt port, the Qio E3 fits seamlessly into your demanding production workflow.

Travel and Desktop Companion
Qio E3 pro media reader is small-about the size of three stacked CD cases-and takes up so little space, you can use it just about anywhere. It's rugged, too-the robust aluminum case easily withstands heavy use. This pro media reader even incorporates a slot for Kensington and similar security locks to secure the device and deter theft.

Sonnet Qio E3 High-Speed SxS Card Reader Only - SKU#1513524 Features

  • Versatile Support-Support for Sony SxS and PCIe-based ExpressCard/34 cards
  • Fast-Uses PCI Express 2.0 bus interface to deliver superior performance; aggregate available bandwidth of 400 MB/sec
  • Choice of Interface-Qio E3 package includes your choice of interface: PCI Express 2.0 card for desktops, ExpressCard/34 for notebooks, or Thunderbolt for any Mac with a Thunderbolt port
  • SxS Aggregate Media Ingest Speed (3 cards concurrently)-PCIe or Thunderbolt interface: 400MB/s; ExpressCard/34 interface: 200MB/s
  • Mac and Windows Compatible-Qio E3 supports your workflow, regardless the platform you've chosen
  • Built-in SATA Connections-Connect external media readers with an eSATA interface
  • Small and Rugged-Strong aluminum case
  • Security-Slot for Kensington and similar security locks to secure the device and deter theft

What's in the box:

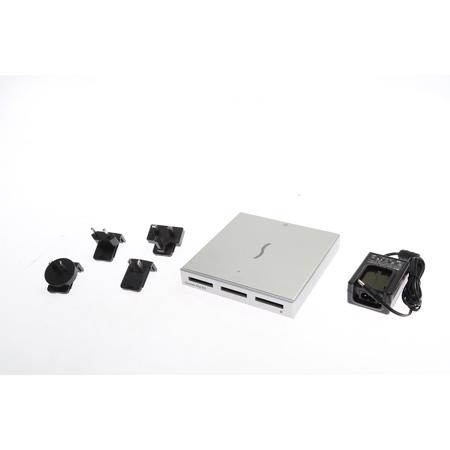

  • Sonnet Qio E3 Professional Compact Flash Media Reader
  • Universal 12V Power Supply
  • Original Box
  • Item Note: Missing External PCIe Interface Cable; Carrying Case; Does not Include PCIe Bus Extender EXpressCard/34 Adapter or Bus Extender PCIe 2.0 Adapter
