Sony BRC-H700 HD 3-CCD Robotic Color Video Camera - SKU#1398760

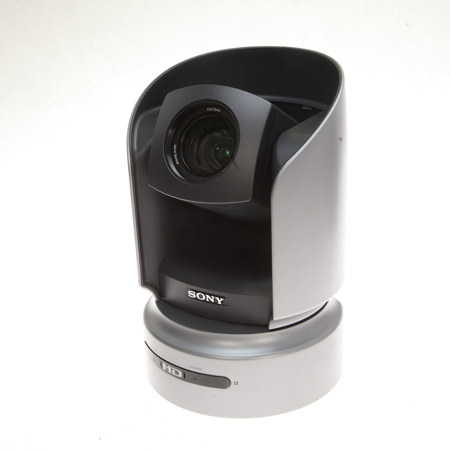

Picture does not represent the actual item
See what's in the box

See all Sony items

Used Sony BRC-H700 HD 3-CCD Robotic Color Video Camera

SKU: US1398760

This item is no longer available.

Recommended Items

Sony PXW-X400KF: Picture 1 regular
Sony PXW-X400KF XDCAM 2/3" Weight-Balanced Camcorder, 8-128mm f/1.9 16x AF Lens
$21,220.00
Sony PXW-X400: Picture 1 regular
Sony PXW-X400 XDCAM 2/3" Weight-Balanced Advanced Shoulder Camcorder
$16,995.00
Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Sony BRC-H700 Specifications

  • Tilt Angle

    -30 to +90 degrees (Tilt)

  • Tilt Speed

    60 degrees/sec

  • Power Consumption

    Max. 24W (Without optional card)

  • Effective Pixels

    Approx. 1.12 mega pixels

  • S/N Ratio

    50 dB

  • Angle of View (H)

    5.55 degrees (tele end ) to 60.3 degrees (wide end)

  • Built-In Video Output

    Analog RGB
    Analog Y/Pb/Pr

  • Lens

    12x optical zoom
    48x with digital zoom
    Carl Zeiss Vario-Sonnar T

  • Signal System

    1080/59.94i
    1080/50i (switchable)

  • Video Output

    HFBK-HD1: HD-SDI
    HFBK-SD1: Down converted SD (RGB, Y/Cb/Cr, Y/C Composite SDI )
    HFBK-XG1: WXGA, XGA, VGA
    HFBK-TS1: HDV (With an optional card)

  • White Balance

    Auto
    Indoor
    Outdoor
    One-push WB
    Manual

  • Imager

    Robotic Camera

  • Operating Temperature

    0 to 40 degrees

  • Storage Temperature

    -20 to 60 degrees

  • Minimum Illumination

    6lx (50IRE F1.6)

  • Angle of View (V)

    3.12 degrees (tele end) to 36.2 degrees (wide end)

  • Backlight Compensation

    On/Off

  • Camera Control Interface

    RS-232C (VISCA protocol)/RS-422 (VISCA protocol)

  • Focal Length

    f=4.5 to 54.0mm (F1.6 to F2.8)

  • Focus System

    Auto/Manual

  • Gain

    Auto/Manual (0 to 18 dB and Hyper Gain)

  • Image Flip

    On/Off

  • Minimum Object Distance

    800mm (tele end)

  • ND Filter

    Off/ND1/ND2

  • Optical Image Stabilizer

    On/Off

  • Pan Angle

    -170 to +170 degrees

  • Pan Speed

    0.25 to 60 degrees/sec

  • Preset Positions

    16 positions

  • Shutter Speed

    1/10000 to 1/59.94 (1/50) sec.

  • Synchronization

    Internal/External

  • Power Requirements

    DC 12V

  • Dimensions (W x H x D)

    207mm (Diameter) x 315.8mm (H)

  • Weight

    4.5kg

  • Warranty

    Sony 1 year parts & labor with drum assembly for 90 days warranty

About Sony BRC-H700 HD 3-CCD Robotic Color Video Camera - SKU#1398760

The Sony BRC-H700 is a 3CCD High-Definition P/T/Z color video camera. The BRC-H700 combines a high picture quality HD 3CCD camera with pan/tilt/zoom mechanism, wrapped in a sleek, compact body. Like its standard definition family member, the BRC-300, the BRC-H700 can also be mounted on the ceiling. The BRC-H700 supports analog RGB, Y/Pb/Pr output as standard and is also equipped with a slot for optional cards resonding to diverse needs.

By inserting optional cards into this slot, HD-SDI (HDBK-HD1), down converted SKI (HFBK-SD1), computer XGA (HFBK-XG1) and HDV (HFBK-TS1) formats can be used. The BRU-H700 HD optical mutliplex unit with the BRBK-H700 HD optical multiplex card enables the BRC-H700 to transmit uncompressed digital data without deterioration through the CCFC-M100HG HD optical fiber cable. The same RM-BR300 remote control unit for the BRC-300 can be used with BRC-H700; it will simultaneously control up to 7 cameras from a distance.

Sony BRC-H700 HD 3-CCD Robotic Color Video Camera - SKU#1398760 Features

  • All-in-one stylish robotic camera with robust body
  • Superb picture quality by using 1/3 type HD 3-CCDs
  • Carl Zeiss Vario-Sonnar T Lens with representation of picturing in every detail
  • Built-in Auto Focus 48x zoom (12x Optical, 4x Digital)
  • Desktop and ceiling-mount installation
  • Wide system expandability with interface card slot for optional cards
  • External sync input
  • 16 position presets
  • RS-232C/RS-422 serial control (VISCA protocol)
  • Daisy chain capability (up to 7 units)
  • Image stabilization function that reduce vibration
  • ND filter that can adapt incident illumination
  • Multi-function IR Remote Commander unit
  • OSD (On-Screen Display)

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Sony BRC-H700 HD 3-CCD Robotic Color Video Camera
  • AC Adapter
  • AC Power Cable
  • RS-422 Terminal Block Connector
  • Item Note: Missing Ceiling Bracket; Wire Rope; Package Mounting Screws; Remote
