Sony DMXP01 Portable Digital Mixer with 32-Bit, Full Digital Sound Processing

Picture does not represent the actual item
See what's in the box

See all Sony items

Used Sony DMXP01 Portable Digital Mixer with 32-Bit, Full Digital Sound Processing

SKU: US1387198

This item is no longer available.

Recommended Items

Sony DMXP01: Picture 1 regular
Sony DMXP01 Portable Digital Mixer with 32-Bit, Full Digital Sound Processing
$311.00$270.00
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2021-01-22T00:49:36

Rated 5 out of 5

Great engineering, but display oversight by Sony designers.

Well It's 2021, Adorama is STILL selling this 16 year old piece of equipment (it is still listed as IN STOCK) on their website and NO reviews?? I have spent many years with the DMX-P01 slung on my shoulder recording sound for picture. From About 2006-2011 I owned this mixer and used it on commercials, tv shows, movies (low budget), documentary programs. It was sonically great to my ears. I believe that it was the first portable digital mixer. The only shortcoming is that the display only shows input gain levels or output levels, never both at the same time. Also there are no dedicated peaking indicators on the inputs. So if you are combining multiple inputs into a mono or stereo output the summed energy will require monitoring, however you will be in the dark as to which inputs may be near peaking. User experience and also if you happen to be using wireless receivers with good gain structure can compensate for this oversight on Sony's part. There are input limiters available and adjustable compression on the main outputs. My DMX-P01 now serves as a (very expensive) desktop speaker monitor volume mixer/headphone output for my computer workstation...still going strong.

John M.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

Sony DMXP01 Specifications

  • Power Supply

    DC 12 V via 4-pin Hirose connector

  • A/D Converter

    24 bits

  • Battery Life

    5 hours or more with Sony AA-size alkaline batteries

  • D/A Conversion

    24 bits

  • Sampling Frequency

    48 kHz or 96kHz

  • Total Harmonic Distortion

    Less than 0.05%

  • Operating Temperature

    -5 to +40½ C (+23 to +104½ F)

  • Storage Temperature

    -30 to +70½ C (-22 to +158½ F)

  • Frequency Response

    20 Hz to 40 kHz +0.5/-3.0 dB (at 96 kHz sampling frequency)

  • Camera Send/Return

    Send level: -60/-10/+4 dBu (max. +24 dBu), 600 ohm Return level: 0 dBu (max. +20 dBu), 10kohm

  • Cascade Input (Digital)

    Bus Input (L/R), S/PDIF (IEC60958 coaxial), phono, 75 ohms

  • Equivalent Input Noise

    -126 dBu (IHF-A)

  • Input/Output Limiter

    Threshold: 0 to +20 dB

  • Level Meter Calibration

    VU, BBC-type DIN-type, NORDIC-type, IEC-type1, dBSF (selectable)

  • Monitoring

    1/4-inch TRS jack (x1) and 3.5mm dia. TRS jack (x1) with level control

  • Tape Out (Analog)

    2ch (L/R), -10 dBu (max. +10dBu), 3.5mm dia. TRS jack, unbalanced, 10 kohm load or more

  • Cascade Output (or S/PDIF Output)

    2 ch (L/R), S/PDIF (IEC 60958 coaxial), phono, unbalanced 75 ohm load or more

  • Power Requirements

    DC 12V

  • Power Consumption

    Internal: DC 12V (eight AA-size (LR6) alkaline batteries)
    External: DC 12 V via DC jack or DC 10 to 15 V via an XLR 4-pin connector

  • Dimensions

    10-1/2 x 2-3/4 x 8-1/8 inches (266 x 68 x 206 mm)

  • Weight

    4 lbs 13 oz (2.2 kg)

  • Warranty

    Sony warranty

About Sony DMXP01 Portable Digital Mixer with 32-Bit, Full Digital Sound Processing

FEATURED REVIEWS

Great engineering, but display oversight by Sony designers.

By John M.

Well It's 2021, Adorama is STILL selling this 16 year old piece of equipment (it is still listed as IN STOCK) on their website and NO reviews?? I have spent many years with the DMX-P01 slung on my shoulder recording sound for picture. From About 2006-2011 I owned this mixer and used it on commercials, tv shows, movies (low budget), documentary programs. It was sonically great to my ears. I believe that it was the first portable digital mixer. The only shortcoming is that the display only ...

View full Review

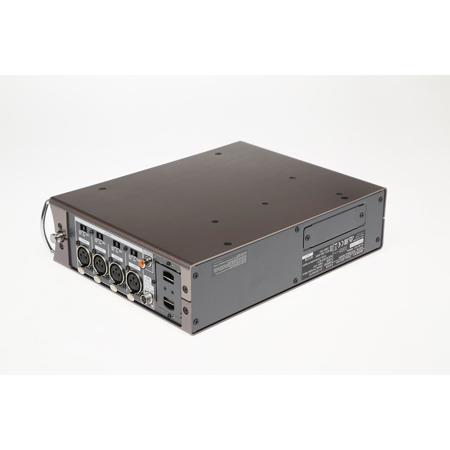

The Sony DMX-P01 digital mixer is a lightweight and portable field mixer developed for electronic news gathering (ENG) and electronic field production (EFP).

The unit has 32-bit, full digital sound processing and its unique Scene store - recall feature enables users to instantly recall up to ten different mixer user-snapshots.

Sony DMXP01 Portable Digital Mixer with 32-Bit, Full Digital Sound Processing Features

  • Outstanding audio quality with 32-bit internal processing
  • Sampling rate of either 48 kHz or 96kHz
  • Full digital processing provides outstanding sound quality for ENG and EFP applications
  • Flexible meter scales: Meter scale and ballistics can be easilty changed from one metering type to another
  • Memory storage and recall: Users can effortlessly store and recall parameter settings from the setup menu
  • Digital cascade: For applications requiring additional inputs, two DMX-P01 mixers can be cascaded using a 32-bit digital cascade connection, providing a total of 8 inputs
  • Digital Output: 2-channel AES3 digital audio

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Sony DMXP01 Portable Digital Mixer
  • 2x Battery Holders
  • Item Note: Missing 12-Pin Multi-Connector; Feet
