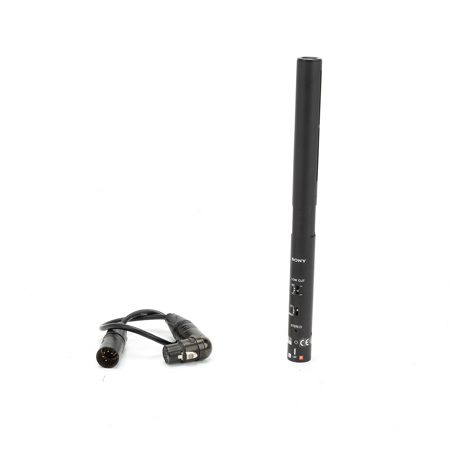

Used Sony ECM-680S MS Stereo Shotgun Microphone, 50 Hz to 20 kHz Frequency Response

SKU: US2062945 MFR: ECM680S
Earn VIP Reward Points

What`s in the box:

  • Sony ECM-680S MS Stereo Shotgun Microphone
  • Windscreen
  • Mic Holder
See more

Key Features

  • Capture pristine audio with this Sony shotgun microphone, ideal for film & broadcast.
  • Experience superior sound quality; the ECM-680S ensures clear, professional recordings.
  • Achieve excellent stereo/monaural flexibility with this shotgun mic's versatile settings.
  • Durable & lightweight at 4.9oz, this portable microphone is perfect for on-location shoots.
  • Minimize unwanted noise; the included windscreen ensures clean audio even in windy conditions.
  • Connect easily using the 5-pin XLR; this shotgun microphone integrates seamlessly with Sony cams.
See More Product Details

INCLUDES FREE WARRANTY

  • This used item comes with a free 90-day warranty. ?
Overview
Compare
Accessories
Learn
Specs
Protection

Reviews about this item

Review Summary

Sony ECM-680S Specifications

  • Capsule Type

    Stereo MS Electret Condenser

  • Frequency Response

    Stereo: 50 Hz to 20 kHz Monaural: 40 Hz to 20 kHz

  • Directivity

    Uni-directional

  • Sensitivity

    Stereo: -28 dB +/-3 dB
    Monaural: -32 dB +/-3 dB

  • Dynamic Range

    Stereo:104 dB or more Monaural: 106 dB or more

  • S/N Ratio

    Stereo: 74 dB or more
    Monaural: 76 dB or more
    (IEC179 A-weighted, 1 kHz, 1Pa)

  • Inherent Noise (0dB=20½Pa)

    Stereo: 21 dB SPL or less, Monaural 20 dB SPL or less

  • Induction Noise

    0 dB SPL or less

  • Wind Noise

    60 dB SPL or less (with windscreen), 55 dB SPL (without windscreen),(0 dB SPL=20u PA)

  • Max SPL (dB SPL)(0dB=20½P)

    124 dB SPL

  • Connector

    5-pin XLR (Cable Supplied)

  • Cable Length

    XLR-5 pin to XLR-5pin
    15 inches (Connects with Sony camcorder equipped with front 5-pin mic input)

  • Power Requirements

    DC 40 to 52 V

  • Dimensions (LxDiameter)

    9.84 x 0.78" (250 x 20mm)

  • Weight

    140g (4.9 oz)

Related Articles & Videos

A fearless approach to creating your own videos

A fearless approach to creating your own videos

Jumping into video without a net? Want to go viral on YouTube? Here’s how to avoid the fear, the swish, button mashing, and other rookie regrets when planning and shooting a video.
Read more

20 Accessories for Sony ECM-680S MS Stereo Shotgun Microphone, 50 Hz to 20 kHz Frequency Response

  • All Accessories (20)
  • Windscreens (4)
  • Cables & Adapters (6)
  • Shockmounts (4)
  • Boompoles (3)
  • Grips & Handles (2)
  • Boom Pole Holder (1)

About Sony ECM-680S MS Stereo Shotgun Microphone, 50 Hz to 20 kHz Frequency Response

The Sony ECM-680S is an MS stereo shotgun, electret condenser microphone, ideal for a broad range of field production and broadcast studio applications. Incorporating newly developed microphone capsules, the ECM-680S offers excellent sensitivity, low inherent noise and a flat-and-wide frequency response. The most distinguished feature of the ECM-680S is its switchable operation between a highly directional monaural mode and stereo mode.

Monaural mode provides highly directional sound pickup, while stereo mode delivers natural and spatial sound. The MS microphone signal of the ECM-680S is internally decoded and it provides L and R (stereo) outputs. The ECM-680S is supplied with a XLR-5-pin to XLR-5 pin cable for use with 5-pin XLR input equipped camcorders. The optional K-1504 cable should be used when connecting the ECM-680S stereo shotgun with camcorders having two 3-pin XLR inputs.

Sony ECM-680S MS Stereo Shotgun Microphone, 50 Hz to 20 kHz Frequency Response Features

  • Excellent Sound Quality: The ECM-680S uses the Mid-Side technique that offers natural stereo sound & excellent localization. Equipped with newly developed large diaphragm microphone capsules with bi-directional characteristics, the ECM-680S delivers superb sensitivity & extremely low inherent noise
  • Stereo and Monaural Switchable: The ECM-680S can operate in either stereo or monaural (uni-directional) mode, allowing it to be used in both EFP and ENG applications. Stereo mode is ideal for capturing environmental sound with natural sound quality
  • Flat-and-Wide Frequency Response: The ECM-680S microphone has a flat-and wide frequency response (50 Hz to 20 kHz (stereo)/40 Hz to 20 kHz (monaural)) in both stereo and monaural modes and will provide sound reproduction that is extremely smooth and natural
  • Built-in Low Cut Filter: The built-in two-position (M,V) low cut switch provides a simple method of reducing the effects of undesired ambient noise
  • Compact and Lightweight Design: The ECM-680S has been designed to be a compact yet high-performance stereo shotgun microphone, ideal for camera mounted use. It measures only 9 7/8 inches in length and weighs less than 4.9 oz, maintaining good balance and mobility

Warranty Information

This used item has a FREE 90-day warranty. See details.

Key Features

  • Capture pristine audio with this Sony shotgun microphone, ideal for film & broadcast.
  • Experience superior sound quality; the ECM-680S ensures clear, professional recordings.
  • Achieve excellent stereo/monaural flexibility with this shotgun mic's versatile settings.
  • Durable & lightweight at 4.9oz, this portable microphone is perfect for on-location shoots.
  • Minimize unwanted noise; the included windscreen ensures clean audio even in windy conditions.
  • Connect easily using the 5-pin XLR; this shotgun microphone integrates seamlessly with Sony cams.
