Review Summary
Shotgun
Supercardioid / Unidirectional
2x Electret Condenser
Mono / Stereo
End Address
Black
Low Cut/HPF, Mono/Stereo, Polar Pattern
50 Hz to 20 kHz (Cardioid) 40 Hz to 20 kHz (Supercardioid)
-28 dB (Cardioid)
-32 dB (Supercardioid)
124 dB
21 dB (Cardioid)
20 dB (Supercardioid)
No
1x XLR 5-Pin Male
Phantom Power
40 to 52 V
5/8"-27 Female (3/8"-16 Female with Included Adapter)
°: 0.8 x L: 9.8" / °: 20 x L: 250 mm
3.7 oz / 105 g

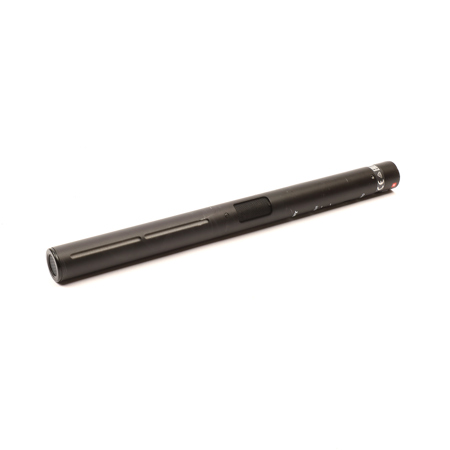

The Sony ECM-680S is an MS stereo shotgun, electret condenser microphone, ideal for a broad range of field production and broadcast studio applications. Incorporating newly developed microphone capsules, the ECM-680S offers excellent sensitivity, low inherent noise and a flat-and-wide frequency response. The most distinguished feature of the ECM-680S is its switchable operation between a highly directional monaural mode and stereo mode.
Monaural mode provides highly directional sound pickup, while stereo mode delivers natural and spatial sound. The MS microphone signal of the ECM-680S is internally decoded and it provides L and R (stereo) outputs. The ECM-680S is supplied with a XLR-5-pin to XLR-5 pin cable for use with 5-pin XLR input equipped camcorders. The optional K-1504 cable should be used when connecting the ECM-680S stereo shotgun with camcorders having two 3-pin XLR inputs.
