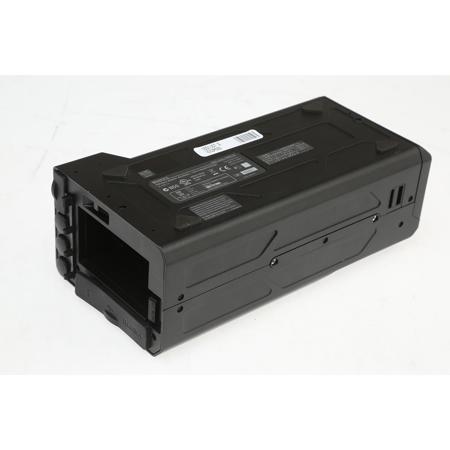

Used Sony PMW-50 Portable SxS Field Deck and Card Reader (803 Hours)

SKU: US1551167

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Sony PMW-50 Specifications

  • Record/Play Format Video

    - HD422 mode: CBR, maximum bit rate: 50 Mbps, MPEG-2 422P@HL
    - HD420 mode: VBR, 35 Mbps, MPEG-2 MP@HL
    - DVCAM mode: DVCAM

    - HQ mode: VBR, maximum bit rate: 35 Mbps, MPEG-2 MP@HL
    - SP mode: CBR, 25 Mbps, MPEG-2 MP@H14
    - DVCAM mode: DVCAM

  • Record/Play Format Audio

    - HD422 mode: LPCM 24 bits, 48 kHz, 4 channels
    - Other mode: LPCM 16 bits, 48 kHz, 4 channels

    - HD mode: LPCM 16 bits, 48 kHz, 4 channels
    - SD mode: LPCM 16 bits, 48 kHz, 2 channels

  • Record/Play Time MPEG HD422

    Approx. 120 min with SBP-64/ SBS-64G1A (64 GB) memory card
    Approx. 60 min with SBP-32/ SBS-32G1A (32 GB) memory card
    Approx. 30 min with SBP-16 (16 GB) memory card

  • Record/Play Time HD 420 Mode (MPEG HD)

    Approx. 180 min with SBP-64/ SBS-64G1A (64 GB) memory card
    Approx. 90 min with SBP-32/ SBS-32G1A (32 GB) memory card
    Approx. 45 min with SBP-16 (16 GB) memory card

  • Record/Play Time HQ Modes (MPEG HD)

    Approx. 200 min with SBP-64/ SBS-64G1A (64 GB) memory card
    Approx. 100 min with SBP-32/ SBS-32G1A (32 GB) memory card
    Approx. 50 min with SBP-16 (16 GB) memory card

  • Record/Play Time SP1440 Modes (MPEG HD)

    Approx. 280 min with SBP-64/ SBS-64G1A (64 GB) memory card
    Approx. 140 min with SBP-32/ SBS-32G1A (32 GB) memory card
    Approx. 70 min with SBP-16 (16 GB) memory card

  • Recording/Playback Time (DVCAM)

    Approx. 220 min with SBP-64/ SBS-64G1A (64 GB) memory card
    Approx. 110 min with SBP-32/ SBS-32G1A (32 GB) memory card
    Approx. 55 min with SBP-16 (16 GB) memory card

    Approx. 260 min with SBP-64/ SBS-64G1A (64 GB) memory card
    Approx. 130 min with SBP-32/ SBS-32G1A (32 GB) memory card
    Approx. 65 min with SBP-16 (16 GB) memory card

  • Battery Operating Time

    Approx. 150 min with BP-U30 battery (while recording, LCD monitor On, SDI/HDMI Off)
    Approx. 300 min with BP-U60 battery (while recording, LCD monitor On, SDI/HDMI Off)
    Approx. 450 min with BP-U90 battery (while recording, LCD monitor On, SDI/HDMI Off)

  • Media Type

    ExpressCard/34 slot (x2)

  • HD-SDI Input

    BNC (x1), HD/SD selectable
    SMPTE 292M/259M standards

  • SD-SDI Input

    BNC (x1), HD/SD selectable
    SMPTE 292M/259M standards

  • Analog Composite Output

    BNC (x1)
    NTSC, PAL or HD-Y

  • HDMI Output

    Type A 19-pin (x1), output

  • Analog Audio Output

    Phono jack (CH-1, CH-2)
    -10dBu (Reference Level), 47k ohm

  • Headphone Output

    Stereo mini jack (x1)

  • i.LINK

    IEEE 1394, 4-pin (x1)
    HDV stream input/output, DVCAM stream output, S400

  • USB

    USB device, Type-B (x1)

  • DC Output (12 V)

    DC jack (12 V)

  • Option

    4-pin, Type A

  • Built-in Display

    3.5" type color LCD monitor: 852 (H) x 3 (RGB) x 480 (V), 16:9

  • Power Requirements

    DC 12 V

  • Power Consumption

    Approx. 10.5 W

  • Operating Temperature

    32°F to 104°F (0°C to 40°C)

  • Storage Temperature

    -4°F to +140°F (-20°C to +60°C)

  • Dimensions (WxHxD)

    4.9 x 3.4 x 9.3" (124 x 86 x 237mm)

  • Weight

    2.2 lbs (1kg)

About Sony PMW-50 Portable SxS Field Deck and Card Reader - (803 Hours) SKU#1551167

The PMW-50 SxS field deck supports mobile XDCAM HD422 video production applications. Since the introduction of the PMW-100/200/500 series camcorders, use of SxS memory camcorders has rapidly increased. For example, in broadcast news operations, a portable recording deck which works as an operation hub in the field is certainly an invaluable asset. The PMW-50 SxS field deck allows users to playback and view content (via a 3.5-inch LCD panel) recorded on an SxS memory card, copy the data on an SxS card to other storage devices, and record an external SDI signal or convert a signal from SDI to i.LINK, and more.

Through USB and i.LINK interfaces, both file-based and streaming operations are supported. Upcoming capabilities such as the ability to copy data from an SxS memory card to an external storage device such as a USB hard drive will also help users minimize their operational costs. The PMW-50 supports a range of formats, including MPEG HD422 50Mbps (MXF) and MPEG HD420 35Mbps (MP4). The PMW-50 can also function as an ingest machine to an NLE system.

PrimeSupport
This product comes with the full PrimeSupport package. That's fast, hassle-free repairs and a helpline offering expert technical advice. Plus the peace of mind that Sony is looking after your equipment and your business.

Sony PMW-50 Portable SxS Field Deck and Card Reader - (803 Hours) SKU#1551167 Features

  • Compact unit: The PMW-50 is a lightweight, rugged handheld recorder/player offering full portability for news and field operations. Weighing less than 2.2 lbs, the unit is designed to be tough and insensitive to vibrations and can be operated on BP-U battery.
  • 3.5" display: The PMW-50 acts as a stand-alone multi format SxS viewer or desktop SNG Card feeder.
  • Compliant with the most popular video formats: The PMW-50 supports all formats, from XDCAM EX family and XDCAM HD422 as standard. (UDF & FAT 32 format HD422/420 & DVCAM). The unit is .MXF and .MP4 files compliant, offering flexibility for broadcast and corporate operations.
  • Direct recording on SxS cards via HD/SD-SDI inputs: The PMW-50 enables second/parallel recording with embedded audio via HD/SD-SDI inputs.
  • SD, MS , XQD cards and SxS Media support: There is a flexibility of media availability, which allows user to choose the most appropriate media for their application.
  • Multiple inputs and outputs: The PMW-50 features HD/SD-SDI inputs along with a variety of outputs: analogue composite, HD/SD-SDI, HDMI, analog audio, headphone, iLink and USB.

What's in the box:

  • Sony PMW-50 Portable SxS Field Deck and Card Reader
  • Firmware 1.0
  • Item Note: Missing Shoulder Strap; Infrared Remote Commander; BC-U1 Battery Charger
