Review Summary
OLED panel
419.7 mm (16 5/8 inches)
365.8 x 205.7 mm (14-1/2 x 8-1/8 inches)
1920 x 1080 pixels (Full HD)
16:9
RGB 10-bit
89deg./89deg./89deg./89deg. (typical) (up/down/left/right contrast > 10:1)
BNC (x1), 1.0 Vp-p +/-3 dB sync negative
BNC (x2)
HDMI (x2)
Stereo mini jack (x1), -5 dBu 47 kilohms or higher
Modular connector 8-pin (x1) (pin-assignable)
RJ-45 modular connector (Ethernet) (x1) (10BASE-T/100BASE-TX)
DC 12 V (output impedance 0.05 ohms or less)
BNC (x1), loop-through, with 75 ohms automatic termination
BNC (x1), output signal amplitude: 800 mVp-p +/-10%, output impedance: 75 ohms unbalanced
Stereo mini jack (x1)
1.0 W (mono)
Stereo mini jack (x1)
AC 100 V to 240 V, 50/60 Hz, 1.0 A to 0.5 A, DC 12 V 7.0 A
Approx. 90 W (maximum), Approx. 70 W (average power consumption in the default status)
0deg.C to 35deg.C (32deg.F to 95deg.F), Recommended: 20deg.C to 30deg.C (68deg.F to 86deg.F)
30% to 85% (no condensation)
-20deg.C to +60deg.C (-4deg.F to +140deg.F)
0% to 90%
700 hPa to 1060 hPa
With stand: 436.0 x 305.6 x 161.0 (17-1/4 x 12-1/8 x 6-3/8 inch)
Without stand: 436.0 x 289.6 x 120.0 (17-1/4 x 11-1/2 x 4-3/4 inch)
Without Stand: 7.2 kg (15 lb 14 oz)
With an optional SU-561 monitor stand: 9.3 kg (20 lb 8 oz)

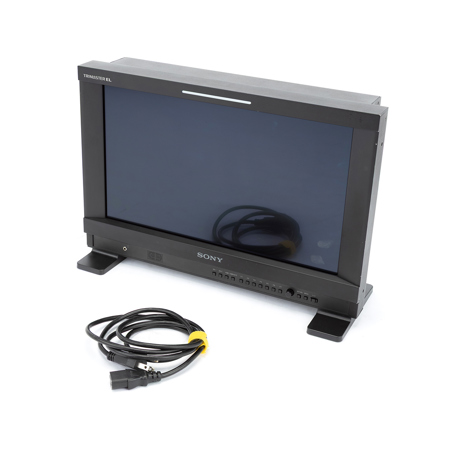

The Sony PVM-1741 "All in one" OLED picture monitor delivers unparalleled picture quality with high-value performance features and functions, all in a compact design. Sony's 17-inch Super Top Emission OLED display panel benefits from superb black performance, wide color gamut and quick response with virtually no motion blur. By combining the Sony OLED display panel (Full HD, 10-bit driver) and Sony's OLED processing technologies, the PVM-1741 OLED monitor delivers groundbreaking picture quality.
