1.3RU Chassis, with convertible configuration for standard 19" rackmount or set-top box with feet included
Microsoft Windows 10 Pro 64-bit
4x SDI Ports (Magewell ProCapture)
2TB (40+ hours of HD video)
Telestream Wirecast Pro 7
NewBlue Titler Live Ultimate: Includes all of the features found in Titler Live Advance plus up to 16 channels of graphics through NDI, CSV Export/Import, Live Feed Monitor capability and over 50 additional titling templates (For Creating Rich, Animated Title Designs)
Telestream Switch 3 Plus (To play, inspect and make corrections to video)
Wirecast Gear is pre-installed with Windows 10 OS
Wirecast 7 Pro
Switch 3 Plus
NewBlueFX Titler Live Standard, Advance NDI, or Ultimate (version depends on Wirecast Gear model number)
Processor - Intel Core i7-6700 Processor
Memory - 16GB DDR4 Dual Channel Memory
System Drive - 250GB M.2 SATA System Drive
Storage Drives - High speed SATA 6Gb/s SSD (single or dual, depending on model)
Video Ingest - 4-channel professional camera inputs with HDMI
Intel USB 3.0 with USB Type-C (Perfect for external video and project storage)
802.11ac 867Mbps dual band wireless (inc. antenna) + Bluetooth 4.2
115dB SNR HD Audio (works with new Wirecast Audio Mixer)
Dual GbE LAN RJ45, 802.11ac WiFi, Bluetooth 4.2 (Most extensive networking available for robust network inputs and flexible streaming options)
PS/2 Keyboard/Mouse Port
USB 3.0 Ports - 4 rear/2 front
Display outputs - DVI-D, dual HDMI
Yes
AC input, auto-sensing, suitable for most countries
Input Range: 90-264VAC (RMS), Full Range Input
Frequency: 47-63Hz
Input Current: Maximum 6A (RMS) at 115VAC, 3A (RMS) at 230VAC
16.95 x 9.85 x 2.25" (430.53 x 250.19 x 57.15mm)
Fits a standard 19" rack configuration. Takes up 1.3U spaces
Live event streaming simplified! Wirecast Gear gives you a fully configured live streaming production system that is affordable and easy to use. No need to build your own system. They have done all the work. You can start streaming in minutes, with an end-to-end system configured specifically for your needs.

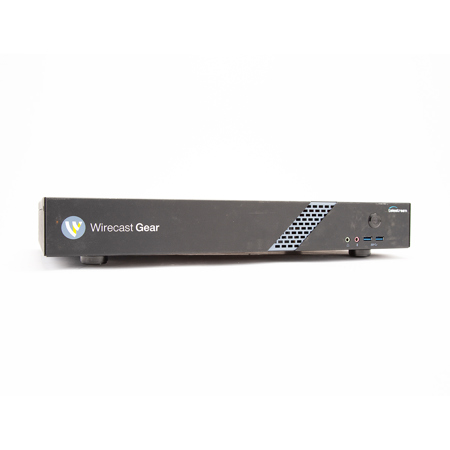

Wirecast Gear is an extremely portable computer workstation designed to run Wirecast Pro for live event production and streaming. With four HD-SDI professional camera inputs and all the live streaming production features of Wirecast Pro, in a compact, powerful hardware system, Wirecast Gear is a unique blend of performance, ease of use and affordability. Just plug in your cameras and start streaming.
Versatile, convenient design
The versatile Wirecast Gear workstation is based on a short-depth rackmount for convenient mounting in a travel case or in-place installation. It also comes with a set of rubber feet for table top operation with a sleek, ergonomic design built to not eat up your production workstation environment. The unit uses solid state drives, as opposed to traditional spinning hard drives, which makes Wirecast Gear ideal for transport, less prone to failure and guarantees maximum performance.
Fully configured, ready-to-use system
Wirecast Gear removes the hurdle of system integration and configuration and allows live event producers to focus on production and streaming. Plug your cameras into one of the four HD-SDI inputs and you're ready to go. Wirecast Gear includes Wirecast Pro live streaming production software, Switch Plus and NewBlue Titler Live (Version varies by model). Includes robust connections including USB-C and three display outputs to create an optimal production environment. Display outs can also feed high resolution (up to UHD) presentation monitors for low latency, live in-venue screens.
Impressive features, at a lower price
From ingest of live sources to an encoded live stream, Wirecast Gear handles it all. Wirecast Gear has a versatile and convenient footprint, more powerful live streaming production features.
Powerful live production
Wirecast Gear comes with Wirecast 7 live streaming production software installed. This award winning software lets you switch between multiple live cameras while dynamically mixing in other media such as movies, images and sounds and adding production features such as transitions, instant replay, playlists, built-in titles, chroma key, virtual sets, live scoreboards and more.
Built-in encoding
When you're ready to stream, Wirecast's built-in encoding engine allows you to stream high-quality H.264 video and AAC audio over RTMP, RTP and Windows Media protocols for maximum flexibility. Stream to multiple destinations simultaneously and record. Wirecast offers over 30 convenient built-in destinations for industry-leading streaming services and platforms like Facebook Live, YouTube Live, Microsoft Azure, Akamai, DaCast, Wowza and more.
