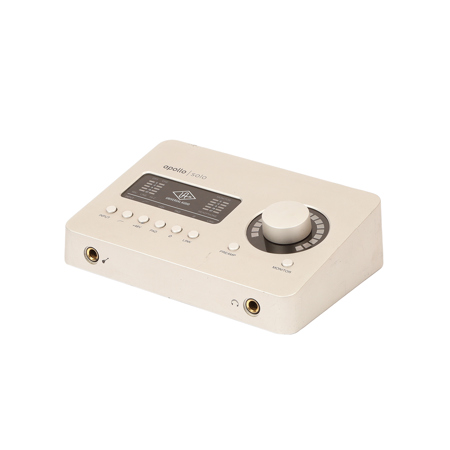

Used Universal Audio Apollo Solo USB Heritage Edition Desktop 2x4 USB Type-C Audio Interface with Realtime UAD Processing for Windows (USB Cable Not Included)

SKU: US1787618

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Universal Audio Apollo Solo Specifications

General

General

Jump to...
  • Form Factor

    Tabletop

  • Display

    5x Multi-Segment LED Meter

  • Channels of I/O

    Analog:
    2 Inputs / 4 Outputs at 192 kHz

  • Max Sample Rate/Resolution

    192 kHz / 24-Bit

  • Number of Mic Preamps

    2

  • Input Level Adjustment

    1x Knob

  • Expansion Slots

    None

  • Pad

    Mic:
    -20 dB (Switchable per Channel)

  • Gain/Trim Range

    Mic/Line/Hi-Z Inputs:
    +10 dB to +65 dB

  • High-Pass Filter

    75 Hz, 12 dB/Octave

  • Solo/Mute

    None

Connectivity

Jump to...
  • Analog Audio I/O

    2x Combo XLR-1/4" TRS Balanced Mic/Line Input
    1x 1/4" TS Unbalanced Hi-Z Input (Front Panel)
    2x 1/4" TRS Balanced Monitor Output
    1x 1/4" TRS Unbalanced Headphone Output (Front Panel)

  • Phantom Power

    48 V, Selectable On/Off (Selectable on Individual Inputs)

  • Digital Audio I/O

    None

  • Host Connection / USB

    1x USB Type-C (USB 3.0 / 3.1 Gen 1)

  • USB (Non-Host)

    None

  • Sync I/O

    None

  • Network I/O

    None

  • MIDI I/O

    None

  • Wireless Connectivity

    None

Performance

Jump to...
  • Frequency Response

    System:
    20 Hz to 20 kHz +/-0.1 dB

  • Max Input Level

    Mic Inputs:
    +25.2 dBu (Min Gain, with Pad)

    Line Inputs:
    +20.7 dBu

    Hi-Z Inputs:
    +12.5 dBu (Min Gain)

  • Max Output Level

    Monitor Outputs:
    +20.7 dBu

  • Headphone Output Power

    240 mW into 32 Ohms
    62 mW into 300 Ohms

  • Impedance

    Mic Inputs:
    5.5 Kilohms

    Line Inputs:
    10 Kilohms

    Hi-Z Inputs:
    1 Megohm

    Monitor Outputs:
    100 Ohms

  • Dynamic Range

    Mic/Line/Hi-Z Inputs:
    118 dBA

    Monitor Outputs:
    115 dBA

    Headphone Outputs:
    115 dBA (600-Ohm Load)

  • THD+N

    Mic Inputs:
    -108 dBFS

    Line Inputs:
    -107 dBFS

    Hi-Z Inputs:
    -105 dBFS

    Monitor Outputs:
    -106 dBFS

    Headphone Outputs:
    -97 dB (600-Ohm Load)
    -88 dB (32-Ohm Load)

Digital Audio

Jump to...
  • Sample Rates

    Up to 192 kHz

  • Sample Rate Conversion

    None

  • Bit Depths

    24-Bit

  • Latency

    1.1 ms at 96 kHz (Input to Output)

  • Sync Sources

    Internal

  • Memory Card Slot

    None

Compatibility

Jump to...
  • OS Compatibility

    Windows 10 (64-Bit, Only)

  • Included Software

    None

  • Supported Drivers/API & Plug-Ins

    Windows Driver Downloadable from Manufacturer

  • Processor Requirement

    PC:
    Intel Core i3
    Intel Xeon

  • Storage Requirements

    6 GB

  • Mobile Device Compatibility

    None

  • Required Hardware

    Available USB 3.0 / 3.1 Gen 1 Port
    USB Cable (Not Included)

  • Internet Connection

    Required for Registration, Software/Driver Download, Plug-In Authorization

  • Power Requirements

    AC/DC Power Adapter (Included)

  • AC Input Power

    100 to 240 VAC, 50 / 60 Hz

  • AC/DC Power Adapter

    12 VDC, Center-Positive (Included)

  • Power Consumption

    10 W

Physical

Jump to...
  • Operating Humidity

    20 to 80%

  • Operating Temperature

    32 to 95 Degree F (0 to 35 Degree C)

  • Storage Temperature

    -40 to 176 Degree F (-40 to 80 Degree C)

  • Dimensions

    7.1 x 4.8 x 1.8" (18.03 x 12.19 x 4.57cm)

  • Weight

    1.4 lbs (0.6kg)

9 Accessories for Universal Audio Apollo Solo USB Heritage Edition Desktop 2x4 USB Type-C Audio Interface with Realtime UAD Processing for Windows (USB Cable Not Included)

  • All Accessories (9)
  • Microphones & Audio (6)
  • Headphones (3)

About Universal Audio Universal Audio Apollo Solo USB HE USB Type-C Audio Interface

Make your recordings stand out with the Apollo Solo USB Heritage Edition Desktop 2x4 USB Type-C Audio Interface with Realtime UAD Processing for Windows. This high-performance desktop audio interface delivers superior audio conversion, dual Unison mic preamps, and an array of onboard UAD plug-ins, enabling you to produce album-quality results in real time.

The Apollo Solo USB interface boasts esteemed Apollo A/D and D/A conversion technology, setting it apart from other devices in its class. Its Unison technology and built-in UAD-2 processing allow you to record through iconic studio tools such as the UA 610-B Tube Preamp & EQ, LA-2A and 1176 compressors, with near-zero latency.

Experience the power of class-leading A/D and D/A conversion, as featured on countless hit records. Track with near-zero latency through mic preamp and guitar amp emulations from renowned brands like Neve, API, and Fender, using Unison technology. Mix with the included UAD plug-ins like the Teletronix LA-2A and 1176 compressors, Pultec EQs, and more.

The Apollo Solo USB's Unison technology offers the tone, touch, and "feel" of the world's most coveted preamps. These include the bundled UA 610-B Tube Preamp, authentic mic preamp emulations from Neve and API, and guitar amp emulations from Fender and Marshall. This technology physically reconfigures Apollo's impedance and gain staging, providing the classic tube and transformer sounds of the world's most recorded mic preamps and guitar amps.

The Apollo Solo USB comes with a suite of incredible analog emulation plug-ins, including the world's only authentic Teletronix LA-2A and 1176LN compressors, Pultec EQs, and more. These plug-ins will elevate your recordings with rich, sonically complex analog sound.

For guitarists and bassists, the Apollo Solo USB includes Unison technology on its front panel instrument input, providing access to precise emulations of amps like the Fender '55 Tweed Deluxe, Ampeg B-15N Bass Amplifier, and the included Marshall Plexi Classic.

The Apollo Solo USB's onboard headphone output is louder and punchier, with lower noise and flatter frequency response than any interface in its class. This ensures you can confidently track and mix using headphones, knowing you're hearing every sonic detail.

The Apollo Solo USB Heritage Edition is a robust, all-metal construction audio interface that delivers professional results. It's like having a virtual analog studio that fits onto any desktop and easily travels in your laptop bag. This edition features 5 premium UAD titles, including complete plug-in Collections of our award-winning Teletronix and UA 1176 compressors, Pultec EQs, UA 610 mic preamps, and more, giving you a curated analog studio, right out of the box.

The new Apollo Heritage Editions deliver a premium software suite of 5 or 10 award-winning UAD plug-in titles, including the full Collections from Teletronix, Fairchild, Pultec, Helios, and UA. These are the same UAD plug-ins that built UA's reputation for analog modeling over the past decade, including vintage compressors, EQs, mic preamps, and reverb, providing you with the most accurate library of classic analog emulations anywhere, right out of the box.

Universal Audio Universal Audio Apollo Solo USB HE USB Type-C Audio Interface Features

  • Desktop 2x4 USB audio interface for Windows 10 with class-leading 24-bit/192 kHz audio conversion
  • Unison mic preamp and guitar amp emulations from Neve, API, Manley, Marshall, Fender, and more
  • Realtime UAD Processing allows near-zero latency tracking with classic UAD plug-in effects, regardless of software buffer setting
  • Includes studio compressors, EQs, reverbs, and guitar amp emulations, and more as part of "Realtime Analog Classics" bundle
  • Best-in-class headphone amplifier for loud, detailed, low-noise monitoring
  • USB 3 (Type-C) cable sold separately

What's in the box:

  • Universal Audio Apollo Solo Audio Interface
  • External Power Supply
