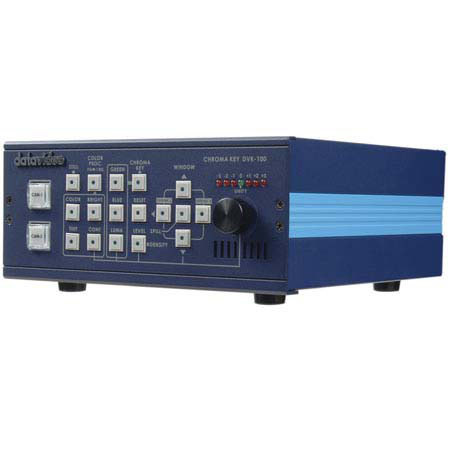

Datavideo DVK-100 Chromakeyer Kit with Dual Color Chromakey Light System & Retro-Reflective Backcloth
See all Datavideo items

Datavideo DVK-100 Chromakeyer Kit with Dual Color Chromakey Light System & Retro-Reflective Backcloth

SKU: VDDVDVK100K

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Specification about this item

  • Input

    Composite Camera x2, Looping, 1 Vpp @ 75 ohms, on BNC connectors
    Y/C Camera x2, Looping, @ 75 ohms, on 4-Pin connectors
    Composite Background, Looping, 1 Vpp @ 75 ohms, on a BNC connector
    Y/C Background, Looping, @ 75 ohm, on a 4-Pin connector
    RS-232, Remote, on a 9-Pin connector
    GPI, on a mini-plug connector

  • Output

    Composite Out x2, 1 Vpp @ 75 ohms, on BNC connectors
    Y/C Out, @ 75 ohms, on a 4-Pin connector

  • Control Front Panel

    Camera 1 or 2
    Still
    Color Processing Color/Tint/Bright/Contrast
    Chroma Key Green/Blue/Luma
    Window Up/Down/Left/Right
    Rotary Knob Key Adjust

  • Control Dip Switch

    NTSC or PAL
    IRE 0/7.5
    NTSC/PAL Auto Detect
    Video or Color Bar

  • Power Source

    12 VDC on an AC Power Adapter

  • Dimensions

    8.25 x 8.25 x 3.5"

  • Weight

    4.4 lbs

  • Warranty

    Datavideo warranty

About Datavideo DVK100KIT

The Datavideo DVK-100 Chromakeyer Kit has Datavideo DVK-100 is a two camera live chroma keyer. It has many advanced features which can give excellent results even from less than perfect Chroma Key setups. This device features proc-amp adjustments, NTSC/PAL Capability and 3 types of keying.

Additionally, the kit comes with a DataVideo CKL-100, a dual-color (blue/green) ring light that can be mounted on a variety of still or video cameras with the included adapters. The light ring can switch from green to blue manually, or with the use of the Datavideo DVK-100 chroma-keyer. The intensity of the ring light is controlled with a variable brightness power supply.

Datavideo DVK100KIT Features

  • DVK-100 Chromakeyer Color Processing Adjustments: The Color Processor Adjustments allow color saturation, brightness, contrast and tint (NTSC only) to be adjusted for both the foreground (Cam-1 / Cam-2) and background images
  • Keying Options: Green, Blue and Luma are the three keying options available. With the Chroma Key button switched on, the user can select the keying option to suit their needs
  • Operation: This unit operates by utilizing two camera inputs with keying backgrounds (green, blue, black, white) and mixing it with the Background input featuring a pre-recorded tape from a VTR or a Still from capture
  • Remote Capabilities: Full remote capabilities can be utilized via RS-232 on a 9-Pin connection; simple camera switching can be accomplished via the GPI input featuring a closed contact
  • Dual Camera Input: This keyer has the ability to select from either of the two camera inputs
  • Multiple Systems: This keyer can operate and process video in the NTSC or PAL television system
  • Portable Capabilities: Because of 12 VDC operation this keyer can operate in many portable production situations
  • Synchronized Signals: Two full frame TBCs enable this keyer to output a clean and synchronized signal
  • CKL-100 Light System: Light ring switchable from blue to green
  • Dimmer control included
  • Make beautiful chroma keys with minimal attention to background lighting
