Venus Laowa Proteus T2.0 Flex 2x Anamorphic Lens 45mm Feet

SKU: VE4520PLEFF MFR: VE4520PLEF-F
Earn VIP Reward Points

Key Features

  • Versatile 2x anamorphic lens with user-interchangeable flare feature
  • Modular design offering four flare options: amber, silver, blue, and clear
  • Standard silver flare with an option for minimal horizontal Clear Flare
  • Quick and easy flare module swap with a secure screw-lock mechanism
  • No additional optical calibration needed after flare module changes
  • Ideal for filmmakers seeking creative control and visual flexibility
See More Product Details
Special Order?Estimated to Ship: 11/15/2025
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Venus Laowa Proteus T2.0 Flex 2x Anamorphic Lens Specifications

  • Available Focal length

    20mm, 28mm, 35mm, 45mm, 60mm, 85mm, 100mm, 28/45/85mm Set, 35/60/100mm Set

  • Mount

    Arri PL/Canon EF (Interchangeable Canon EF bayonet is presented)

  • Aperture range

    T2-22

  • Format

    Super35

  • Image circle

    25.92 x 21.6mm

  • Angle of View (Horizontal)

    20mm: 104.7 Degree
    28mm: 85.6 Degree
    35mm: 73 Degree
    45mm: 59.8 Degree
    60mm: 46.7 Degree
    85mm: 33.9 Degree
    100mm: 29.1 Degree

  • Angle of View (Vertical)

    20mm: 56.7 Degree
    28mm: 42.2 Degree
    35mm: 34.3 Degree
    45mm: 27 Degree
    60mm: 20.4 Degree
    85mm: 14.5 Degree
    100mm: 12.3 Degree

  • Lens structure

    20mm/28mm: 17 elements in 15 groups
    35mm/45mm: 17 elements in 14 groups
    60mm: 17 elements in 14 groups
    85mm: 18 elements in 13 groups
    100mm: 18 elements in 14 groups

  • Aperture blades

    10 blades

  • Flange Distance

    ARRI PL : 52mm / Canon EF : 44mm

  • Focus throw

    300 Degree

  • Aperture throw

    60 Degree

  • Min. focusing distance

    20mm/28mm: 1' 7" (48cm)
    35mm/45mm: 1' 10" (55cm)
    60mm: 2' 3" (70cm)
    85mm: 2' 8" (82cm)
    100mm: 3' 2" (99cm)

  • Available Markings

    Imperial / Metric

  • In-focus driving mode

    Manual (MF)

  • Gear mod

    0.8M

  • Filter Thread

    105mm

  • Front Diameter

    114mm

  • Flare Color

    Amber / Blue / Silver / Clear

  • Dimensions (Dia. x L)

    20mm: 4.7 x 7" (119.6 x 178mm)
    28mm/35mm/45mm: 4.7 x 7.2" (119.6 x 182mm)
    60mm: 4.7 x 7.8" (119.6 x 198mm)
    85mm/100mm: 4.6 x 9.4" (116 x 240mm)

  • Weight

    20mm: 5.51 lbs (2.5kg)
    28mm/35mm/45mm: 5.29 lbs (2.4kg)
    60mm: 5.07 lbs (2.3kg)
    85mm: 6.5 lbs (2.95kg)
    100mm: 6.17 lbs (2.8kg)

  • UPC Code

    6940486708813

Models
<b>New Arrival</b> - Venus Laowa Proteus T2.0 Flex 2x Anamorphic Lens
$9,999.00

Special Order

18 Styles Available

Generally ships in 7-14 days, subject to availability

Venus Laowa OOOM 25-100mm T2.9 Cine Lens Bundle for PL Mount, Feet, White
$7,500.00

Pre Order Now

You may place this on order now and it will be shipped on a first come first serve basis. We do not charge your card until we actually ship.

Venus Laowa Proteus 26-45mm T2.9 2x Anamorphic Cine Lens for PL/EF, Amber, Feet
$5,999.00

Special Order

Generally ships in 7-14 days, subject to availability

Kit StyleBaseBaseBase
FormatSuper 35Super 35APS-C, Super 35
Lens TypeMultipleTelephoto, Wide AngleWide Angle
Fixed Focal LengthNANANA
Lens MountPL & EF MountPL MountPL & EF Mount
Maximum ApertureT2.0T2.9T2.9
Zoom Focal LengthNA25-100mm26-45mm
Focus TypeManual FocusManual FocusManual Focus

About Venus Laowa Proteus T2.0 Flex 2x Anamorphic Lens

Introducing Proteus 2X Anamorphic Flex Series - the unique 2X anamorphic set with a user-interchangeable flare feature. The series becomes highly flexible and economical, providing 4 different flare options to fit any production through the modular design.

Flex - Ease with Flare
Each Proteus Flex comes in a main Proteus body and 4 interchangeable flare modules, including amber, silver, blue and the brand new clear flare versions. Whether for a sci-fi film, a mellow music video or a commercial, filmmakers and rental houses can swap the flare modules locally to match production needs following simple steps.

One Lens for All Flares
With the flexibility and versatility to change the flare color, the new Proteus Flex effectively turns a set of Proteus anamorphic lenses into 4 different sets. Filmmakers can swap between blue, amber, silver and clear flare options to bring the desired aesthetic touch to the scenes.

Mesmerizing Clear Flare
Apart from the colored flare versions, the Proteus Flex includes a brand-new flare coating - Clear Flare. It produces minimal horizontal flare even when shooting towards strong lights. This unique character is for DP who wants a cleaner and more elegant look.

ASC Tested
In collaboration with Markus Forderer, ASC and CINEFLARE, all flare versions of Proteus lenses are tested and captured in different T-stops.

Quick And Easy Swap
The flare modules can be easily installed, swapped and screw-locked into the precision crafted main Proteus body. As the flare modules are carefully adjusted to match the specific lens body, no further optical calibration is required after the swap. The swap can be done in 10 minutes without the need to ship back and forth to service facilities.

Venus Laowa Proteus T2.0 Flex 2x Anamorphic Lens Features

  • Patented anamorphic design
  • Constant 2X squeeze ratio
  • T2 Large Aperture
  • Outstanding sharpness
  • Close-focusing distance
  • Pleasant oval bokeh
  • Low Focus-breathing
  • User-friendly cine housing
  • Full-frame coverage with 1.4X extender

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Versatile 2x anamorphic lens with user-interchangeable flare feature
  • Modular design offering four flare options: amber, silver, blue, and clear
  • Standard silver flare with an option for minimal horizontal Clear Flare
  • Quick and easy flare module swap with a secure screw-lock mechanism
  • No additional optical calibration needed after flare module changes
  • Ideal for filmmakers seeking creative control and visual flexibility

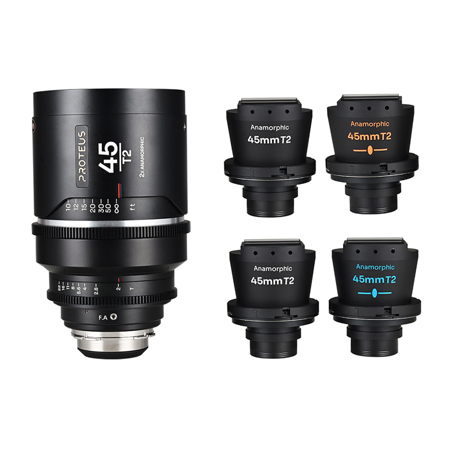

What's in the box:

  • Venus Laowa Proteus T2.0 Flex 2x Anamorphic Lens
  • Amber Flare Module
  • Blue Flare Module
  • Clear Flare Module
  • 3x Flare Ring (Amber/Blue/Clear)
  • Canon EF Mount Bayonet Adapter
  • Front Lens Cap
  • Rear Lens Cap
  • Assembly Tool
  • Hard Case
  • Venus 3 Year Limited Warranty
