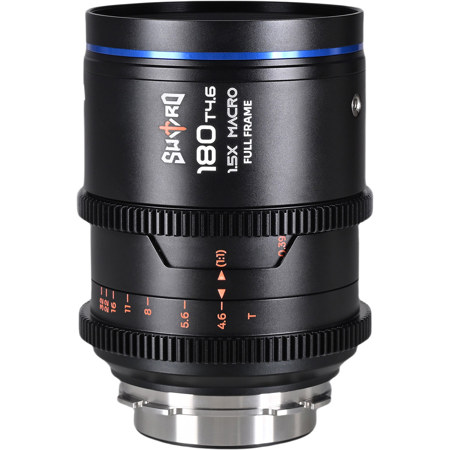

Venus Laowa Sword Macro Cine Lens, PL Mount 180mm

SKU: VESW18046PL MFR: VESW18046PL
Earn VIP Reward Points

Key Features

  • Revolutionary macro cine lenses designed for full-frame formats
  • Lightweight design under 1kg (2.2lbs) for enhanced portability
  • Exceptional sharpness and clarity from center to edge
  • Superior chromatic aberration control for vibrant visuals
  • Impressive 2:1 magnification for detailed macro shots
  • Versatile focal lengths from 15mm to 180mm for diverse shooting scenarios
See More Product Details
Special Order?Estimated to Ship: 10/02/2025
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Venus Laowa Sword Macro Cine Lens, PL Mount Specifications

  • Available Focal length

    15mm, 25mm, 35mm, 60mm, 100mm, 180mm

  • Aperture range

    15mm: T4.1-32
    25mm, 35mm, 60mm, 100mm: T2.9-22
    180mm: T4.6-32

  • Lens Mount

    PL Mount

  • Format

    Full Frame

  • Image circle diameter

    1.7" (43.2mm)

  • Angle of view

    15mm: 110.5 Degree
    25mm: 81.7 Degree
    35mm: 63.4 Degree
    60mm: 39.7 Degree
    100mm: 24.4 Degree
    180mm: 13.7 Degree

  • Lens structure

    15mm: 12 elements in 9 groups
    25mm, 35mm: 13 elements in 10 groups
    60mm: 14 elements in 11 groups
    100mm: 12 elements in 10 groups
    180mm: 12 elements in 9 groups

  • Aperture blades

    15mm: 14
    25mm: 7
    35mm, 60mm, 100mm, 180mm: 13

  • Aperture throw

    15mm: 36.38 Degree
    25mm: 40 Degree
    35mm: 59.4 Degree
    60mm: 73.1 Degree
    100mm: 65 Degree
    180mm: 61.3 Degree

  • Focus throw

    15mm: 84 Degree
    25mm: 100 Degree
    35mm, 180mm: 270 Degree
    60mm: 160 Degree
    100mm: 220 Degree

  • Focus scale

    Dual Scale

  • Min. focusing distance

    15mm: 4.72" (12cm)
    25mm: 6.61" (16.8cm)
    35mm: 7.01" (17.8cm)
    60mm: 8.27" (21cm)
    100mm: 9.72" (24.7cm)
    180mm: 12.05" (30.6cm)

  • Min. working distance

    0.028" (0.07cm)

  • Focus mode

    Manual (MF)

  • Magnification

    15mm, 25mm, 35mm: 1X
    60mm, 100mm: 2X
    180mm: 1.5X

  • Follow Focus Pitch

    0.03" (0.8mm)

  • Filter Thread

    15mm: Dia. 95mm
    25mm, 35mm, 60mm, 100mm, 180mm: Dia. 77mm

  • Front Diameter

    15mm: 3.94" (100mm)
    25mm, 35mm, 60mm, 100mm, 180mm: 3.15" (80mm)

  • Dimensions

    15mm: 2.65 x 4.13" (67.27 x 104.8mm)
    25mm, 35mm: 3.72 x 3.37" (94.56 x 85.6cm)
    60mm: 4.45 x 3.37" (112.93 x 85.6mm)
    100mm: 5.49 x 3.37" (85.6 x 139.5mm)
    180mm: 4.93 x 3.37" (125.1 x 85.6mm)

  • Weight

    Without front lens cap and rear lens cap:
    15mm: 22.57 oz (640g)
    25mm: 26.63 oz (755g)
    35mm: 26.45 oz (750g)
    60mm: 25.96 oz (736g)
    100mm: 33.75 oz (957g)
    180mm: 25.89 oz (734g)

  • UPC Code

    6940486709049

Models
Venus Laowa Sword Macro Cine Lens, PL Mount
$1,499.00

Special Order

6 Styles Available

Generally ships in 7-14 days, subject to availability

Venus Laowa 12mm T2.9 Zero-D Cine Lens for PL Mount
$1,499.00

Special Order

Generally ships in 7-14 days, subject to availability

Kit StyleBaseBaseBase
FormatFull FrameFull FrameFull Frame
Lens TypeMultipleWide AngleMacro
Fixed Focal Length-12mm24mm
Lens MountPL MountPL MountPL Mount
Maximum Aperture-T2.9f/14
Zoom Focal LengthNA-NA
Focus TypeManual FocusManual FocusManual Focus

About Venus Laowa Sword Macro Cine Lens, PL Mount

Just unveiled, the Laowa Sword Macro Full Frame Cine series is a revolutionary collection of macro cine lenses crafted for filmmakers and photographers seeking versatility and precision. This innovative lineup includes a range of focal lengths, from the expansive 15mm, 25mm, and 35mm wide-angle lenses to the more focused 60mm, 100mm, and 180mm options, offering a comprehensive toolkit for diverse shooting scenarios. Each lens in this series is designed to cover full-frame formats, ensuring exceptional sharpness, vibrant color rendition, and outstanding macro capabilities.

Weighing in at under 1kg (2.2lbs), the Laowa Sword lenses are among the lightest in their class, providing unparalleled ease of use and portability. Despite their lightweight design, these lenses maintain a robust build, making them ideal for various shooting setups. Whether mounted on gimbals, robotic arms, or used for outdoor and travel shoots, their compact form factor allows for seamless adaptability and creative freedom.

Engineered for superior performance, the Laowa Sword series delivers remarkable sharpness and clarity, capturing every detail with precision from the center to the edges of the frame. This ensures that whether you're capturing wide shots or intricate close-ups, the image quality remains consistently high.

Chromatic aberration (CA) is expertly controlled across the series, minimizing color fringing and preserving the integrity of your visuals. This advanced optical design guarantees sharp and vibrant images throughout the entire frame, enhancing the overall quality of your work.

A standout feature of the Laowa Sword series is its exceptional macro capabilities, with select models offering an impressive 2:1 magnification ratio. This allows for incredibly detailed close-up shots, capturing the finest textures and nuances with unmatched clarity, making it a perfect choice for macro cinematography enthusiasts.

Explore the ultimate masterclass of macro cinematography with the Laowa Sword Macro Cine Lens series, where innovation meets precision for unparalleled visual storytelling.

Venus Laowa Sword Macro Cine Lens, PL Mount Features

  • Groundbreaking macro cine lenses for all users
  • Versatile focal lengths from 15mm to 180mm
  • Full-frame coverage with exceptional sharpness
  • Lightweight design under 1kg for easy handling
  • Superior chromatic aberration control for vibrant visuals

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Revolutionary macro cine lenses designed for full-frame formats
  • Lightweight design under 1kg (2.2lbs) for enhanced portability
  • Exceptional sharpness and clarity from center to edge
  • Superior chromatic aberration control for vibrant visuals
  • Impressive 2:1 magnification for detailed macro shots
  • Versatile focal lengths from 15mm to 180mm for diverse shooting scenarios

What's in the box:

  • Venus Laowa Sword Macro Cine Lens (PL Mount)
  • Front Lens Cap
  • Rear Lens Cap
  • Venus 3 Year Limited Warranty
