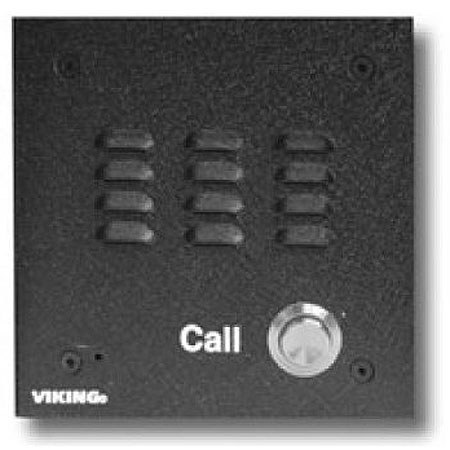

Viking E-10A Speaker Phone with a Stainless Steel Face Plate, Adjustable Microphone and Speaker Volume
SKU: VIKSP407
This item is no longer available.
Share:
Overview
Compare
Specs
Protection
Q&A
About Viking SP-407
The Viking E-10A telephone line powered entry phone is designed to provide two-way handsfree communication. When the "Call" button is pressed, the E-10A will come off-hook and will remain off-hook until a CPC signal is detected, the programmed timeout has elapsed, a busy signal is detected, or the call goes silent, making the unit automatically disconnect.
The E-10A can be connected directly to a C.O. line or analog PABX/KSU station when programmed as a ringdown circuit, or used with a Viking Dialer. If a line or station is not available, Viking's DLE-200B ring down circuit can be used. One to four E-10A speaker phones can share an existing phone line in a house or small business when used with a Viking C-200, C-250 or C-2000B Entry Phone Controller.
Viking SP-407 Features
- Alternate action call button to place or cancel a call
- Intelligent call progress detection for automatic hang-up on CPC, silence, busy signal, or time out
- Telephone line powered
- Weather resistant features: mylar speaker, gaskets, internally sealed push button switch, UV stable exterior, enamel coated PCB
- Adjustable microphone and speaker volume
- Programmable maximum call length
- Selectable auto-answer feature allows remote monitoring
- Two way handsfree communication
- Programmable VOX (mic/speaker) switching speed
- Vandal resistant, black powder painted, aluminum face plate with heavy duty 316 stainless steel call button and mounting gasket
- Flush mountable using included plastic rough-in box
- Applications: Door or gate communication, business delivery entrances
- Applications: Use with a Viking C-200 or C-250 to control an E-10A on a single line
- Applications: Use with a Viking C-2000B to control 1 to 4 E-10A and door/gate control on a single phone line
- Applications: Provide unique front and back door chimes and paging when used with a Viking SLP-1, SLP-4 and C-2000B
- Applications: Residential, commercial and industrial door security
- Applications: Use with a Viking K-1900-5 or K-1900-30 for automatic speed dialing on telephone lines or analog PABX/KSU station ports
- Applications: Use on any analog PABX station port with programmable ringdown capability
