Viking W-1000 Weather Resistant Handsfree HD Doorbox

SKU: VIKW1000

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2016-07-08T10:03:05

Rated 5 out of 5

Worth the upgrade

Newer model (same model number) has some very beneficial features. Worth the upgrade.

Dave R.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Viking W-1000 Specifications

  • Power

    120V AC/13.8V AC 1.25A UL listed adapter provided

  • Environment

    -26deg. C to 54deg. C (-15deg. F to 130deg. F) with 5% to 95% Non-Condensing Humidity

  • Ringer Output

    3.0 REN maximum, 20Hz

  • Ring Cadence

    1 second ON, 3 seconds OFF

  • Maximum Loop Length

    1.9 Km (6300 ft) - 24 AWG twisted pair

  • Maximum Power Run

    45.7 m (150 ft) - 24 AWG twisted pair

  • Speaker Volume

    Approximately 70db maximum at 1m

  • Standard Connections

    (1) 4-Position Terminal Block

  • Dimensions

    127 x 127 x 57mm (5.0 x 5.0 x 2.2")

  • UPC Code

    615687220711

About Viking W-1000

FEATURED REVIEWS

Worth the upgrade

By Dave R.

Newer model (same model number) has some very beneficial features. Worth the upgrade.

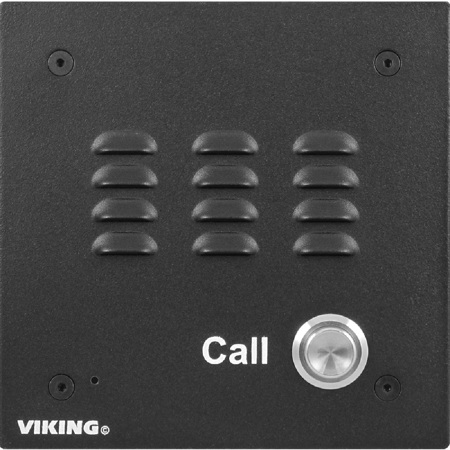

The Viking W-1000 (flush mount) Weather Resistant Doorbox is designed to be installed on the unused telephone line input of nearly any phone system. One or two doorboxes can also share an existing residential phone line and provide door strike and CCTV camera control when used in combination with a C-1000B doorbox controller. When the "Call" button is pressed, the doorbox generates a standard ring cadence for an adjustable number of rings. To converse with the visitor, the inside party simply answers the call from the phone of their choice.

Viking W-1000 Features

  • New high output speaker amplifier with volume adjustment POT
  • Microphone volume adjustment POT
  • 24 volt talk battery
  • 20 Hz ring generator (3.0 REN ring load maximum)
  • Selectable number of rings (2, 3, 10 or 30)
  • Extended operating temperature range: -15deg.F to 130deg.F
  • Compact 45deg. terminal strip for easy wiring
  • Applications: Residential and Business door security, Gate communication, Communication with truck stop/gas station fuel island, Communication with delivery and employee entrances, Use with Viking's C-1000B, RC-2A, or RC-3 to operate electronic door strikes
  • Applications: Add the VE-5x5 to allow the W-1000 to be surface mounted or attached to a gooseneck

Key Features

  • New high output speaker amplifier
  • Microphone volume adjustment POT
  • 24 volt talk battery
