Review Summary

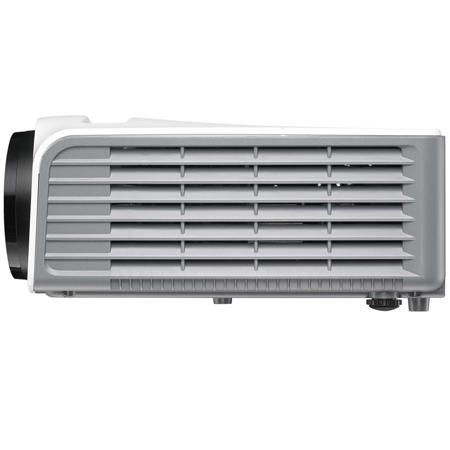

The D557WH is a native WXGA digital projector from Vivitek. It features DLP and BrilliantColor technologies to display distinct, vibrant images in a widescreen format. The Vivitek D557WH features numerous connectivity options including MHL/HDMI v1.4, a brightness level of 3000 ANSI Lumens and a 15000:1 contrast ratio., The projector features also Direct-3D, ensuring that the D557WH is more than capable of handling media applications available now and in the future.
DLP technology with BrilliantColor for vibrant and rich picture quality
3,000 ANSI lumens of brightness and 15,000:1 contrast ratio for clear, crisp and bright presentations
WXGA (1280 x 800) native resolution scalable up to a maximum UXGA (1600 x 1200) resolution
Innovative 5 segment colorwheel (RGBYW) provides improved brightness and automatic gain control
MHL device compatibility for streaming of video and audio content from a compatible mobile device
Convenient top loading design for easy lamp replacement
Multiple inputs for easy connection to a variety of devices: MHL/HDMI v1.4, VGA-In (x2), S-Video, composite video
Source filtering function to save time locating device signal source
3D ready with 3D-Ready via DLP Link, IR, Blu-Ray 3D
Audio ready with built-in 2 watt audio speaker, audio-in and audio out ports
Reduces energy consumption to less than 0.5W in stand-by mode
Keypad lock prevents accidental system adjustments
2.3kg for easy portability
DLP Technology
DLP (Digital Light Processing) is a display technology from Texas Instruments (TI). The technology inside is often referred to as DMD (Digital Micro-Mirrors). It consists of an array of mirrors where each mirror represents a pixel element. For example, a high-definition DLP projector or rear projector with 1920 x 1080 pixel resolution would have over 2 million tiny mirrors. Each mirror is attached to an electronically driven hinge that controls the amount of colored light that is reflected.
BrilliantColor
BrilliantColor from Texas Instruments is a multi-color processing technology that produces vibrant images. BrilliantColor technology uses up to six colors, instead of just the three primary colors, red, green and blue, to improve color accuracy and brightens secondary colors.
HDMI
HDMI (High Definition Multimedia Interface) is an uncompressed, all-digital audio/video interface that supports audio/video sources such as a set-top box, DVD player, A/V receiver and video monitors such as a digital projector or digital television (DTV). HDMI is backward compatible with DVI 1.0 specification and supports HDCP
