Review Summary
Full Frame Bionic Display with human-eye resolution.
Focus area (27 Degree x 27 Degree ) at 70 PPD uOLED, 1920 x 1920 px per eye
Peripheral area at over 30 PPD LCD, 2880 x 2720 px per eye
Colors: 99% sRGB, 93% DCI-P3
Horizontal 115 Degree
90 Hz
Ultra-low latency, dual 12-megapixel video pass-through at 90 Hz
12 to 31" (30 to 80cm)
LiDAR + RGB fusion, 40 cm-5 m operating range
Ultraleap Gemini (v5)
3-point precision fit headband
Replaceable, easy-to-clean polyurethane face cushions
Automatic interpupillary distance adjustment 59-71mm
Two headset adapters in-box
Two USB-C cables (5m) in-box
PC Connections: 2 x DisplayPort and 2 x USB-A 3.0+
SteamVR 2.0 (recommended) or 1.0 tracking system
Varjo inside-out tracking (beta) utilizing RGB video pass-through cameras
200 Hz with sub-degree accuracy; 1-dot calibration for foveated rendering
3.5mm audio jack with microphone support
7.87 x 6.69 x 11.8" (200 x 170 x 300mm)
21 oz (594g)
Headband: 13.6 oz (386g)

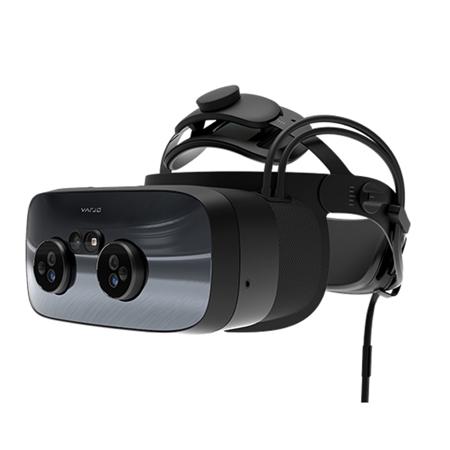

Varjo XR-3 Focal Edition: Visual Precision for Advanced Mixed Reality Training
Varjo XR-3 Focal Edition offers superior visual quality for advanced mixed reality simulation use cases where seeing small text and illustrations on physical instruments close-up is mission-critical.
Visual precision in mixed reality close up.
Seeing crucial dials and knobs in proper focus with content close to the user requires a closer focusing point.
The mixed reality camera system in the Varjo XR-3 Focal Edition is calibrated to provide improved image clarity in the 30 cm to 80 cm range (12" to 31") from the headset, in comparison to a standard XR-3.
Highest-level security and privacy.
The XR-3 Focal Edition is built with the most demanding security environments in mind, across defense, intelligence, and critical infrastructure.
The headset is sold with a perpetual, offline license that enables operations in non-internet connected environments and does not require users to create accounts.
Furthermore, it can be delivered with radio frequency capability removed as required to operate in some classified environments.
Specialized compliance needs covered.
The XR-3 Focal Edition is fully TAA/BAA-compliant (the Trade Agreements Act and the Buy America Act), with the devices being built custom-made at Varjo's HQ in Helsinki, Finland.
TAA compliance is becoming an ever-increasing requirement enabling HMD-based solutions to be used for secure and classified operations.
All the industry-leading features of the standard model.
Offering photorealistic, true-to-life mixed reality combined with industry-leading capabilities and components found in a headset, the Varjo XR-3 Focal Edition includes everything available in the standard Varjo XR-3.
It is also compatible with all the same software applications and hardware devices-no extra customization is required.
NEW TAA-compliant headset for advanced mixed reality training use cases
A variant of the standard TAA-compliant Varjo XR-3, the XR-3 Focal Edition was designed to provide superior visual quality for mixed reality implementations where real-world objects such as cockpits, car dashboards, cell phones, and kneeboards are used in close range.
