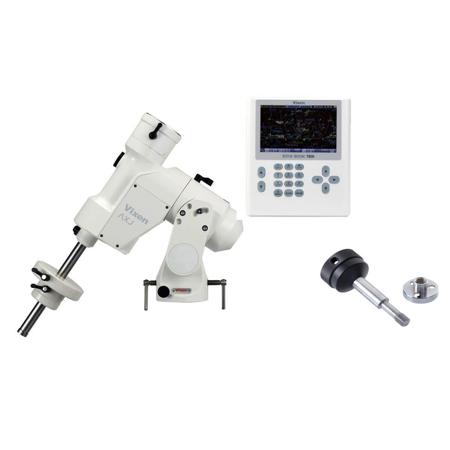

Vixen AXJ GoTo EQ Mount with Star Book Ten (Head Only)

SKU: VX36951

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Vixen AXJ Specifications

AXJ
  • R.A. Slow Motion

    Worm wheel gears with 225 tooth whole circle micro movement, dia 114.5mm Brass

  • DEC Slow Motion

    Worm wheel gears with 192 tooth whole circle micro movement, dia. 96mm Brass

  • Worm Axes

    Boa/ 15/5 mm, Brass

  • R.A. & DEC Axis

    Dia 40mm. Carbon Steel

  • Number of Bearings

    14 Pieces

  • Weight Shaft

    Dia 25mm, retractable, made of stainless steel

  • Polar Scope

    Polar Scope PF-L Built in, 6x20mm, field of view 8 Degree , 3 arc min. accuracy. Scale Pattern: 3 star alignment with precessional compensation (-year 2040); Illumination: automatic power off dark filed illumination (8 step dimmable)

  • Azimuth Adjustment

    Fine adjustments with twin screw knobs about 1.7 Degree per rotation adjustable range about 5 Degree for fine and 360 Degree for coarse adjustment

  • Altitude Adjustment

    Latitude adjustable between 0 and 70 Degree (divided in 3 zones and adjustable about 15 Degree per zone for high, middle and low altitude); altitude scale in 5 Degree increments; Fine adjustments with tangent screw knob and 0.7 Degree per rotation

  • Motor Drive

    Electric motor drive (Belt Drive) with stepping motore, with micro-step control (330ps)

  • Star Chart

    Automatic GO-TO slewing with STARBOOK TEN

  • Slewing and Tracking

    800x of sidereal rate at maximum

  • Power Port

    DC 12V EIAJ RC5320A Class 4

  • Power Supply

    Comes with cigarette lighter plug cord (center plus polarity)

  • Working Voltage

    DC12V

  • Power Consumption

    0.45mm to 2.2A (12kg loaded), 0.6 to 2.5A (22kg Loaded)

  • Dimensions

    18.3 x 16.5 x 5.4" (46.6 x 42.0 x 13.8cm)

  • Loading Weight

    48.5 lb (22kg) (Maximum torque load: 550 kg-cm at point of 25cm from the meeting of the RA and DEC Axes)

  • Counterweight

    3.3 and 7.7 lb (1.5 and 3.5kg)

  • Weight

    38.4 lb (17.4kg) (without counterweights)

Star Book Ten

Jump to...
  • Working Voltage

    DC-12V

  • CPU Display

    32bit RISC Processor, 324 MHz

  • Display

    5*TFT Color LCD, WVGA (800x480)

  • Brightness Adjustment

    Yes

  • No. of Objects in Memory

    2,73,332

  • Hibernate Mode

    Yes

  • Solar and Lunar Tracking Mode

    Yes

  • Comet and Satellite Tracking Mode

    Yes

  • Planet Tracking Mode

    Yes

  • Backlash Compensation

    Yes

  • Permanent PEC

    Yes

  • Autoguider Compatible

    Yes

  • Extension Slot

    Yes

  • Object Registration

    Yes

  • Dimensions

    6.6 x 6 x 1" (16.7 x 15.2 x 2.5cm)

  • Weight

    13.4 oz (379.8g)

About Vixen AXJ

Vixen's newest addition to their award winning equatorial mounts is the AXJ Mount. With its large 48.5 lb loading capacity this mount will hold everything you want to put on it. Featuring highly accurate V-PEC (Vixen permanent periodic error correction) of +-4 arc sec, the AXJ mount has a newly incorporated belt drive mechanism that eliminates backlash and noise. The mount includes SXG tripod. The AXD tripod and pillar can be used with the AXJ-TR102 conversion set.

The AXJ Mount comes with Vixen's STAR BOOK TEN, handheld computer controller. TEN in Japanese means "The Heavens" and this mount will get you there with ease. With observatory quality controls, popular objects appear on the High Definition screen and the AXJ "SEE-TO" Technology shows you the sky before the GO-TO sends you there. With the ability to zoom to any area you can easily find your target object. When you have viewed all 270000 objects, you can enter and save your own discoveries. No computer needed with the STAR BOOK TEN.

The new Astro Imaging capabilities of the STAR BOOK TEN include integrated video imaging and Video Auto Guiding. With the Zoom In feature for guiding and planetary observing, you can lock on an object, capture the image, and save it to stack later. The full metal construction of this observatory quality mount incorporates bronze 135mm 270 tooth RA Gear and 21 Needle Bearings (13 on RA Axis & 8 on DEC Axis). With all these features and Permanent PEC, Night Vision Mode, and a 270,000 Database the STAR BOOK TEN with the NEW AXJ Mount is a revolutionary design for telescope mounts. Covered by Vixen's 5 Year Warranty and manufactured in Japan.

Star Book Ten
Revolutionary Star Chart Go-to Navigation Controller. An integral part of the SXD2, SXP and AXD Mounts. Available for the SX2 Mount.

Autoguiding with the Vixen Advance Unit
The expansion slot of the STARBOOK TEN allows you to use the Advance Unit for autoguiding. The Advance Unit enables you to capture a guide star on the screen using the optional Vixen CCD Video Camera (or other commercially availbe CCD video cameras). You will be able to display the guide star and the star chart side by side on the STARBOOK TEN screen.

Vixen AXJ Features

  • Star Book Ten Features
  • High Definition Color LCD 5" Screen with easy to use menus and night vision setting
  • Variable Tracking Rates for planets, sun, moon and sidereal
  • Celestial Objects Database of over 272,000 Objects with ability to customize and add P-PEC for the SXP and AXD Mounts
  • Hibernate Mode for power saving without losing settings

Key Features

  • Star Book Ten Highlight
  • High Definition Color LCD 5" Screen with easy to use menus and night vision setting
  • Variable Tracking Rates for planets, sun, moon and sidereal
  • Hibernate Mode for power saving without losing settings

What's in the box:

  • AXJ GoTo EQ Mount with Star Book Ten (Head Only)
  • Car/Vehicle Plug with Cord
  • 3.3 lb Counterweight
  • 7.7 lb Counterweight
  • Vixen 5 Year Limited Warranty
